Aranet Gateway Pro – Environmental Monitoring Gateway with Integrated Touchscreen

TDSGWP01

New product

Launch Schedule – The product will be officially launched in two weeks.

Gateway Pro is the central hub of your Aranet wireless sensor network. It collects sensor data and forwards it to Aranet Cloud or to local systems for real-time monitoring via MQTT and Modbus TCP/IP—helping you improve visibility, respond faster, and make better decisions with reliable environmental data.

More details

Add to wishlist

More info

Description

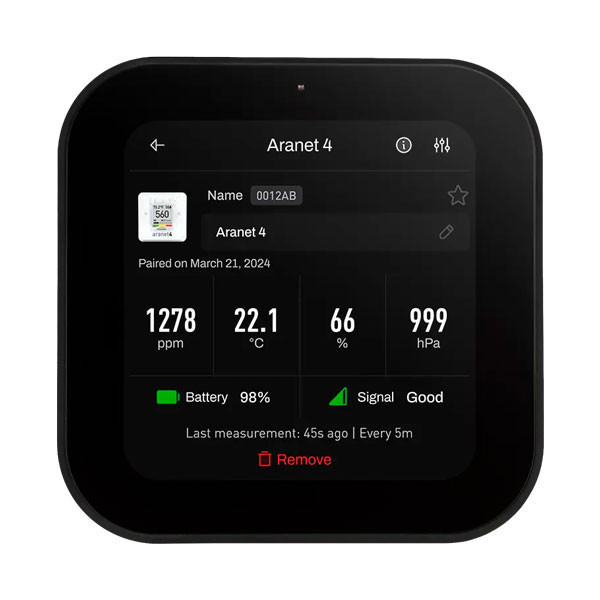

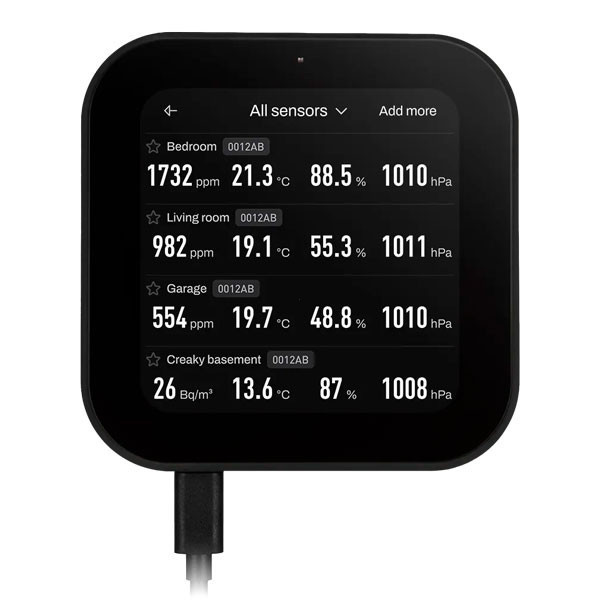

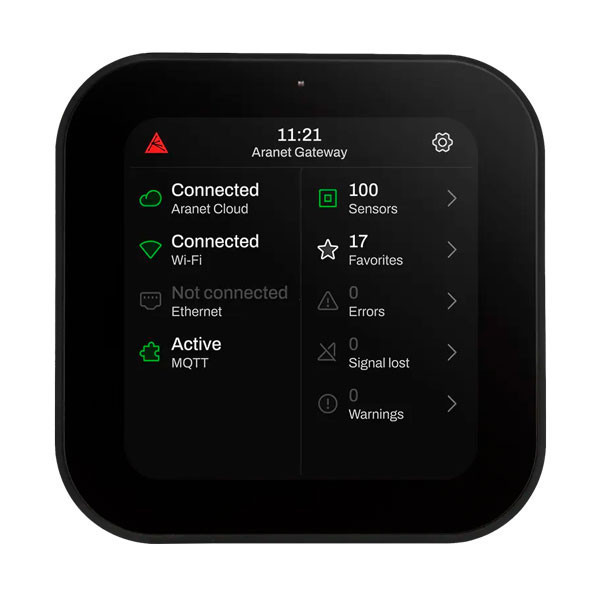

The integrated IPS touchscreen dashboard makes on-site setup fast and intuitive: configure Wi-Fi/Ethernet, pair sensors, and assign names in minutes. For full remote management, alerts, and analytics, connect the gateway to Aranet Cloud.

Note: Integration License, Aranet Cloud License, and the Aranet Gateway Pro USB-C Power Adapter are not included and must be purchased separately.

Benefits & Differentiators

  • Scales up to 100 sensors per gateway
  • Faster commissioning with built-in touchscreen (pair, name, validate)
  • Industrial-ready integrations via MQTT and Modbus TCP/IP (configured through Aranet Cloud)
  • Flexible installation: Wi-Fi or Ethernet
  • Power options: USB-C or Active PoE 802.3af
  • Cache memory to reduce data loss during temporary network outages

Table – Product Numbers

FieldDetails
Product numberTDSGWP01
Radio bandEU868
Used inEuropean Union
Product numberTDSGWPU1
Radio bandUS920
Used inUSA, Canada, South America, Australia, New Zealand
AvailabilityNot available
Radio bandAS923
RegionsBRN, KHM, HKG, IDN, LAO, TWN, THA, VNM, MYS, SGP
AvailabilityNot available
Radio bandJP923
RegionJapan
AvailabilityNot available
Radio bandKR923
RegionSouth Korea

Table – Radio Bands & Channels

Radio bandChannels
EU868Channel 1: 868.1 MHz
Channel 2: 868.3 MHz
Channel 3: 868.5 MHz
Channel 4: —
US920Channel 1: 917.3 & 922.9 MHz
Channel 2: 917.5 & 923.1 MHz
Channel 3: 917.7 & 923.3 MHz
Channel 4: 917.9 & 923.5 MHz
AS923Channel 1: 923.1 MHz
Channel 2: 923.3 MHz
Channel 3: —
Channel 4: —
JP923Channel 1: 923.0 MHz
Channel 2: 923.4 MHz
Channel 3: —
Channel 4: —
KR923Channel 1: 923.1 MHz
Channel 2: 923.3 MHz
Channel 3: —
Channel 4: —

• This table outlines the radio channels utilized by Aranet Sub-GHz radio technology for transmitting sensor data to the base station, complying with regional legislation. To determine product availability and corresponding channels in your region, refer to the Product Numbers table.

Table – Connectivity

FieldSpecification
Receiver sensitivity-127 dBm

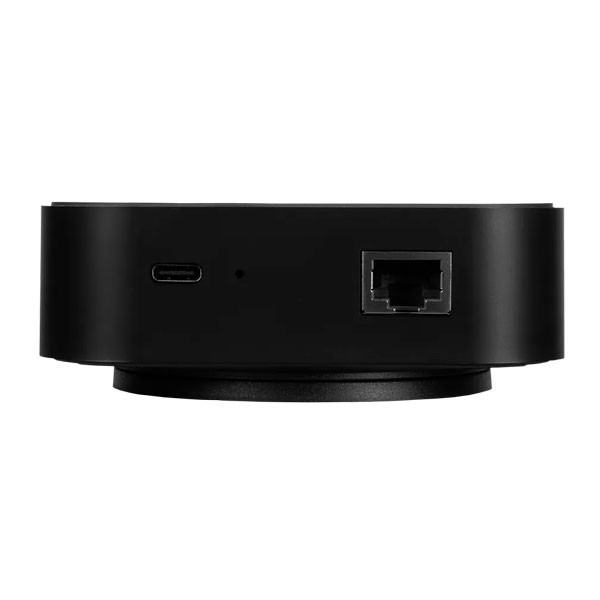

Ports1× USB 2.0 USB-C; 1× RJ45 with PoE 802.3af power input
CommunicationEthernet, Wi-Fi 2.4 GHz client mode

Table – General Specifications

FieldSpecification
Power5 VDC, 1A
Maximum sensor limit100 sensors
Cache memory7200 measurement packets
Operating temperature0 – 45 °C (32 – 113 °F)
Operating humidity0 – 90 %
Display typeLCD IPS, 480×480 px
Display size10 cm (4 in)
Dimensions98 × 98 × 32 mm (3.86 × 3.86 × 1.26 in)
Weight190 g (6.70 oz)
Enclosure materialABS plastic, glass

• Avoid installing Gateway Pro in direct sunlight or near heat sources. Excessive enclosure temperature may affect performance, shorten lifespan, or lead to visual imperfections.

• Powered via 5 VDC USB-C or through RJ45 using PoE (IEEE 802.3af). Power adapter or PoE injector, Ethernet cable, and USB-C cable are not included (compatible accessories can be purchased separately).

• During internet interruptions, Gateway Pro can store up to 7,200 measurement packets. This equals about 12 h for 100 sensors at 10-minute intervals, or about 120 h for 10 sensors at the same interval. Cache is not permanent and will be lost after reboot or power loss.

Table – Supported Sensors

Sensor typeProduct numbers
CO₂ sensorsTDSPC0*3; TDSPC0*5
Temperature sensorsTDSPRH*2.002; TDSPT2*4; TDSPT1*1; TDSPT0*1; TDSPT8*2; TDSPT809; TDSPT509; TDSIR001; TDSPT306.010; TDSPT306.01E; TDSPT506.010; TDSPTA06.010
Radon sensorsTDSPSR*2
Particle matter sensorsTDSPPM*2
Soil moisture sensorTDSPSM*2.100

Full Aranet sensor portfolio support is under development and will be introduced in future firmware updates. Contact us for the latest availability information.

• Aranet product number designations include “*” to indicate multiple product numbers that vary by region (0, U, or J replacing the asterisk). Please refer to the relevant datasheets for details.

Table – Supported Local Integrations

IntegrationDetails
MQTTSupported from FW v1.8.4
Configured via Aranet Cloud
Modbus TCP/IPSupported from FW v1.8.4
Configured via Aranet Cloud
BACnetNot supported
Release timeline to be determined
InfluxDBNot supported
Release timeline to be determined

Table – Available Accessories

ProductDetails
TDAUSB01USB-C power adapter EU
To be ordered separately
TDAUSBU1USB-C power adapter US
To be ordered separately
TDAPOE03PoE Injector
To be ordered separately
TDAPOE04PoE Adapter
To be ordered separately

Compliance

  • Conformité Européenne (CE)
  • Federal Communications Commission (USA)
  • Innovation, Science and Economic Development Canada (ISED)
