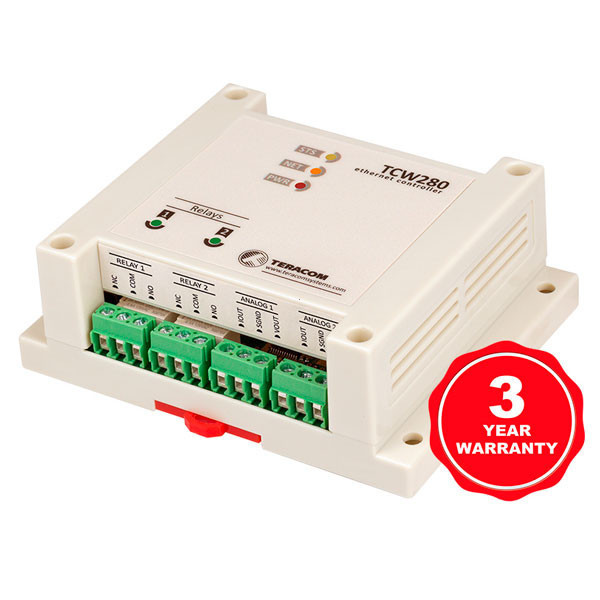

Overview & Key Advantages

With 2 high-resolution analog output channels (voltage or current loop), plus open drain outputs and dual relays, it’s built for reliable remote control, process automation, and seamless integration into SCADA and M2M networks.

The TCW280 supports two analog output channels configurable via a password-protected Web interface. Select from: 0–20mA, 4–20mA, 0–24mA, 0–5V, and 0–10V. Both channels deliver 12-bit resolution for accurate and stable control.

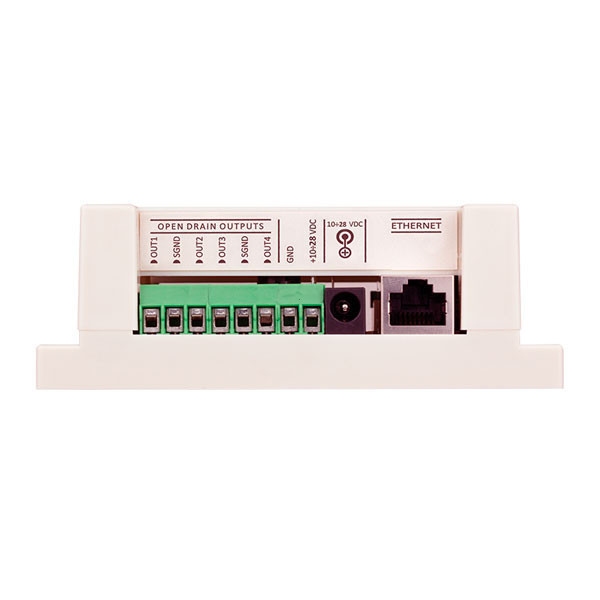

In addition, the module provides 4 open drain outputs configurable as standard digital ON/OFF outputs or as PWM outputs. PWM operation supports up to 2000Hz with 10-bit resolution, making it ideal for LED dimming, DC motor speed control, and solid-state relay control.

For maximum safety and noise immunity, the analog and open drain outputs are galvanically isolated from the power supply, providing 1000VDC isolation between sections. Two relays with NO/NC contacts can be operated via the Web UI or industrial protocols such as SNMP, HTTP API, and MODBUS TCP/IP.

The advanced scheduling engine includes 4 schedules (one-time or weekly) with 100ms resolution. A built-in RTC with time server synchronization ensures precise execution of scheduled switching or control tasks.

Features

• Galvanically isolated outputs for safer industrial deployments.
• 10/100 Mbit Ethernet connectivity.
• Password-protected Web interface.
• 2 analog outputs (voltage/current loop), 12-bit resolution.
• Current loop ranges: 0–20mA, 4–20mA, 0–24mA.
• Voltage ranges: 0–5V and 0–10V.
• 4 open drain outputs (ON/OFF or PWM up to 2000Hz, 10-bit).

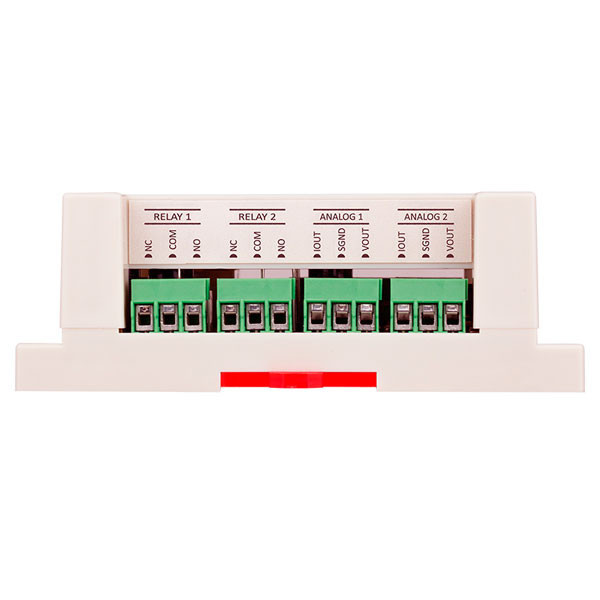

• 2 relays with NO/NC contacts.
• Dynamic DNS, NTP, SNMP v2 + traps (up to 5 recipients).
• MODBUS TCP/IP, HTTP API (server and client mode).
• Periodic HTTP POST status reporting (XML/JSON), up to 3 servers.
• Settings backup/restore, remote firmware updates.
• DIN-rail or wall mount enclosure.

Applications

• Industrial automation Ethernet analog output for PLC/SCADA systems.

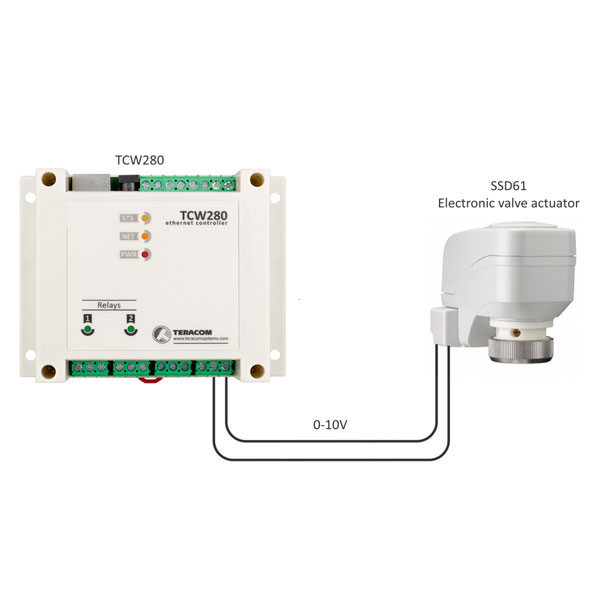

• Remote control of valves, actuators, and industrial processes.
• Scheduled process control with one-time or weekly tasks.

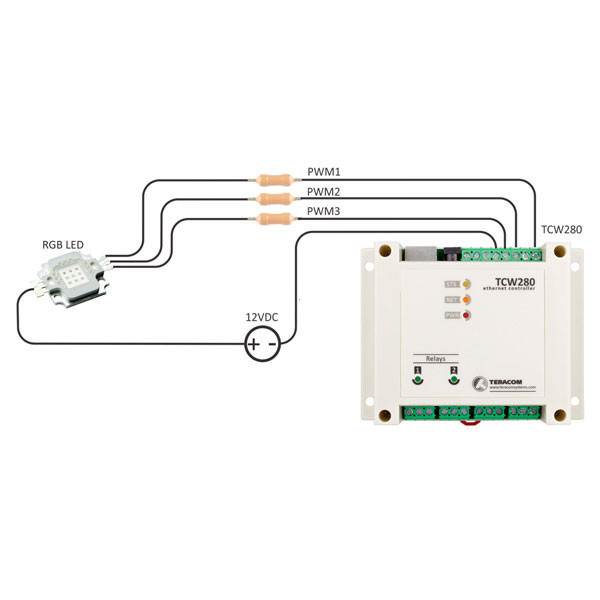

• LED dimming (including RGB) via PWM.
• DC motor speed control and variable frequency drive control.

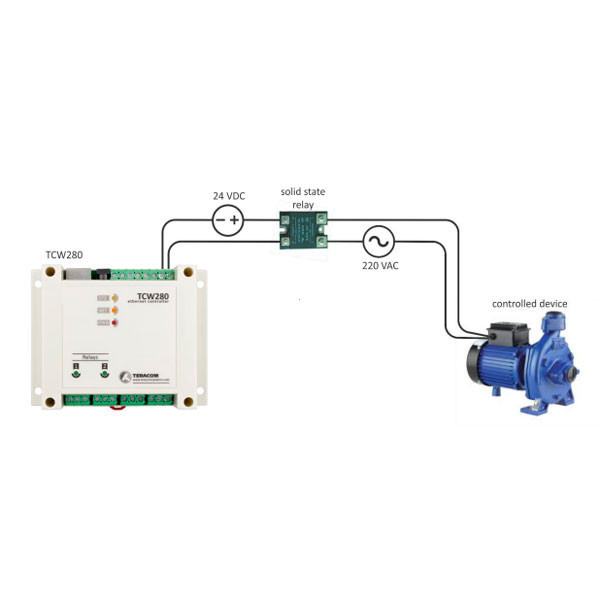

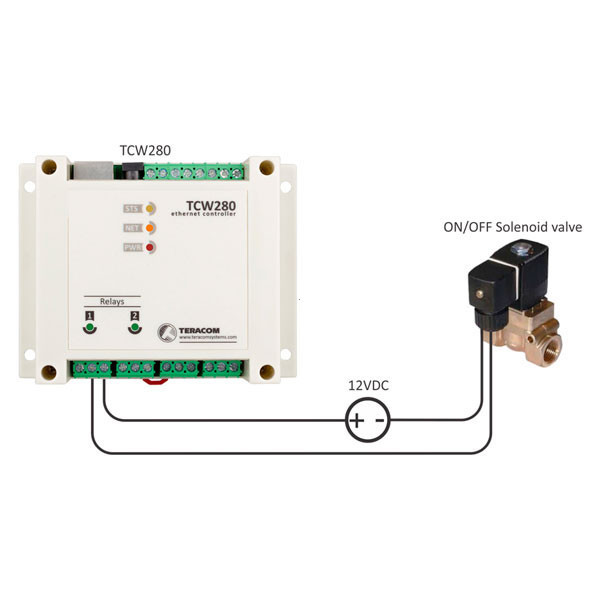

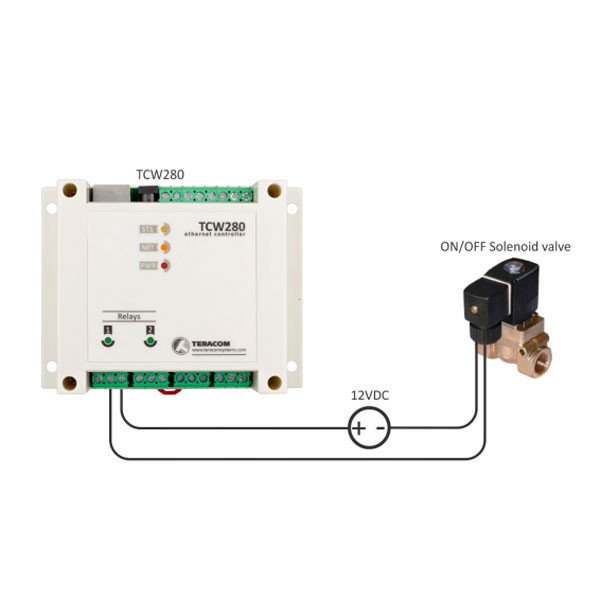

• Solenoid valve control and solid-state relay control.
• Remote analog signal transmission (tunneling).

Technical Specifications

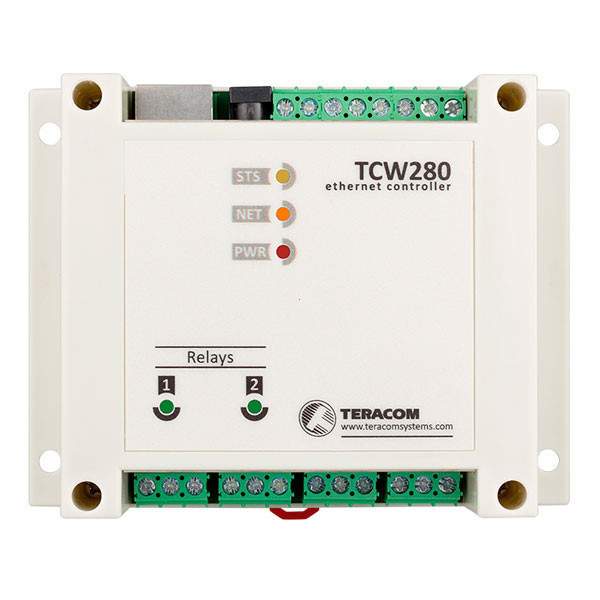

TCW280 Ethernet analog output module with galvanic isolation, PWM open drain outputs, dual relays, scheduling, and industrial protocols (SNMP, MODBUS TCP/IP, HTTP API).
