Reliable remote monitoring and control for IIoT and smart buildings.

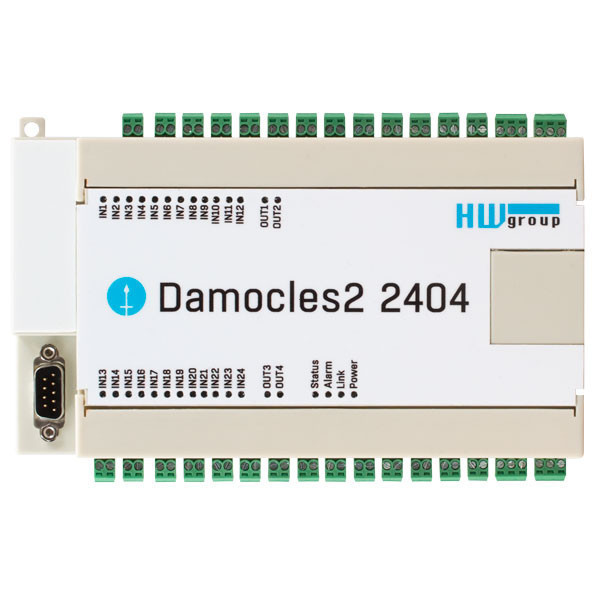

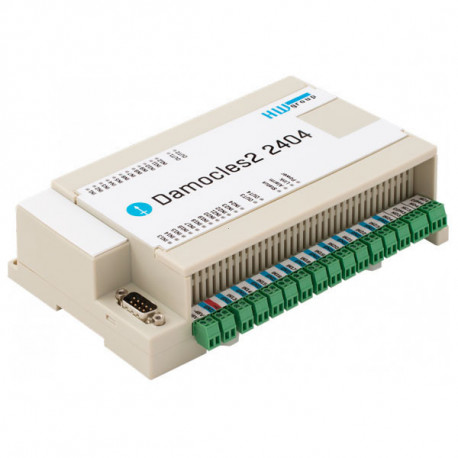

The Damocles2 2404 is a powerful industrial network I/O device featuring 24 digital inputs (dry contact) and 4 relay outputs, designed for reliable remote monitoring, automation and IIoT integration. Each digital input includes a 32-bit S0 pulse counter with memory, making it ideal for connecting water, gas, electricity and other metering devices.

A built-in web server provides easy configuration over LAN. The unit can be monitored remotely via the SensDesk Technology portal in combination with the SensDesk Mobile app for iOS and Android. It also integrates seamlessly with HWg-PDMS and HWg-Trigger for advanced data logging and alarm management.

With flexible power options 9–30 VDC, -48 V and PoE, the Damocles2 2404 can be deployed in a wide range of industrial and building automation scenarios, from technical rooms and data centers to distributed sites and smart energy monitoring applications.

Key features & benefits

• 24 digital inputs (DI) for dry contact detectors such as door contacts, switches and binary sensors.
• 32-bit S0 pulse counters with non-volatile memory on each input for accurate utility metering.
• 4 relay outputs for remote control of loads up to 120 V AC / 60 V DC and 1000 mA.
• Integrated data logger with more than 250,000 records for detailed history of events and pulses.
• 8 virtual digital outputs (VDO) that can be mapped to physical relays on remote Damocles2 or Poseidon2 units.
• Flexible alerts by e-mail, “SMS+Ring”, SNMP Trap or by activating a remote relay on another device.
• Secure M2M protocols (HTTPs, IPv6, SNMPv3, MQTT, Modbus/TCP) for SCADA and IoT integration.
• Versatile power input: 9–30 VDC, -48 V and PoE for easy deployment.
• Compatible with SensDesk, HWg-cloud.com, HWg-PDMS and many third-party SCADA and NMS platforms.

Typical applications

• Remote equipment and infrastructure monitoring.
• Smart buildings and facility management (BMS).
• UPS and power system monitoring in IT rooms and data centres.
• Security and surveillance systems, alarm indication.
• Energy consumption metering using S0 pulse outputs.
• Connecting external digital inputs to SCADA and IIoT platforms.

Damocles2 – Industrial Internet of Things solution

Damocles2 devices are designed to monitor and control digital I/O over Ethernet using secure protocols. Thanks to the Ethernet interface, they can transfer not only current values but also buffered data from the internal logger. Data can be sent using the HWg-Push protocol to the SensDesk portal, to HWg-PDMS software or to third-party systems using the MQTT I/O protocol. Data can also be emailed to PDMS, which then retrieves it from a POP3/POP3S mailbox.

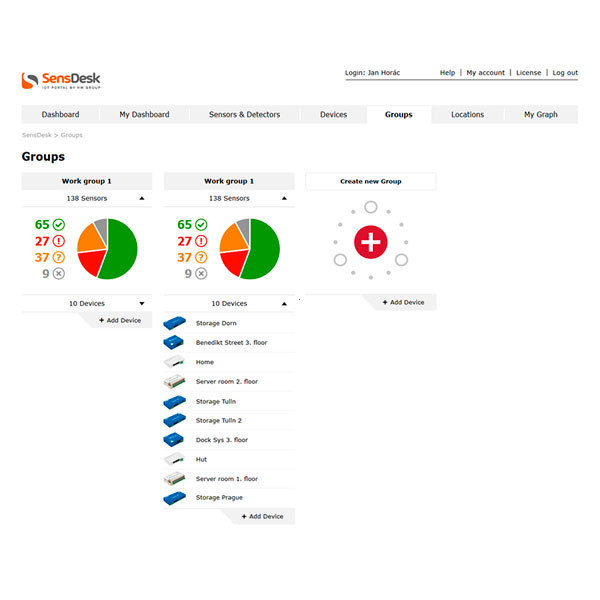

The SensDesk IoT portal provides quick views of current values on a mobile phone, graphs of measured values up to 3 months back and alarm settings via e-mail or SMS (with a HWg-SMS-GW3 gateway). HWg-PDMS software collects all measured data, converts it into Excel reports and helps document environmental values for regulatory bodies, for example in pharmacies and the food industry.

Technical specifications – Damocles2 2404
