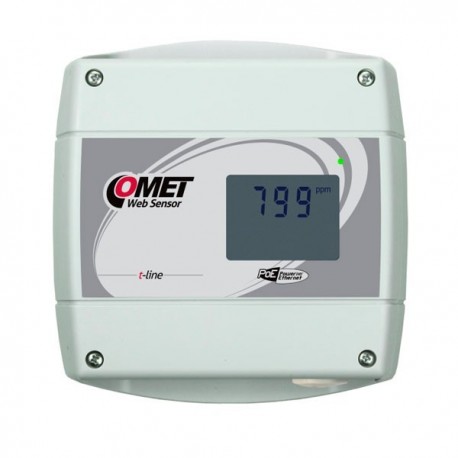

CO2, carbon dioxide Web sensor Comet System T5640

A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

The CO2 concentration is shown on the display or signaled by a color LED.

Processing and analysis of measured data:

• Online in COMET Cloud (Additional value with subscription)
• COMET Database software (Additional value)
• Integration into 3-party systems

Extended measuring range available for an additional charge

• Measuring range: 0 to 10 000 ppm
• Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

Setup using web interface
Device can be setup using web interface or TSensor software. Web interface can be managed by the web browser. Main page will be shown when you insert device address into address bar of your web browser. There you find actual measured values. Page with history graphs is shown when you click to tile with actual values. Access to device setup is possible via tile Settings.
