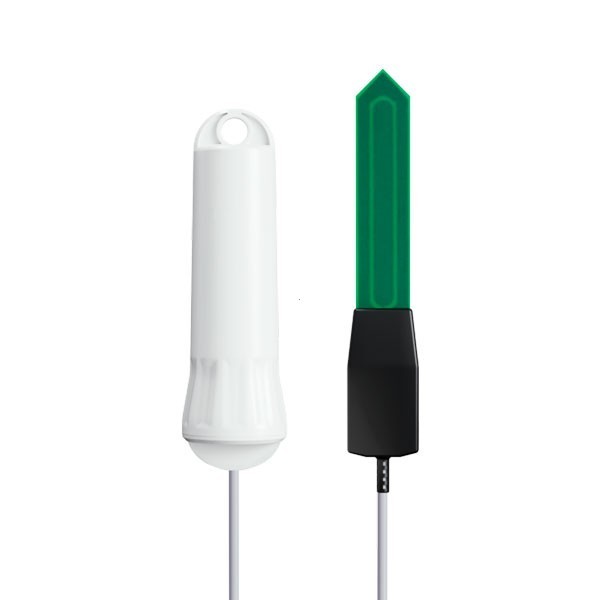

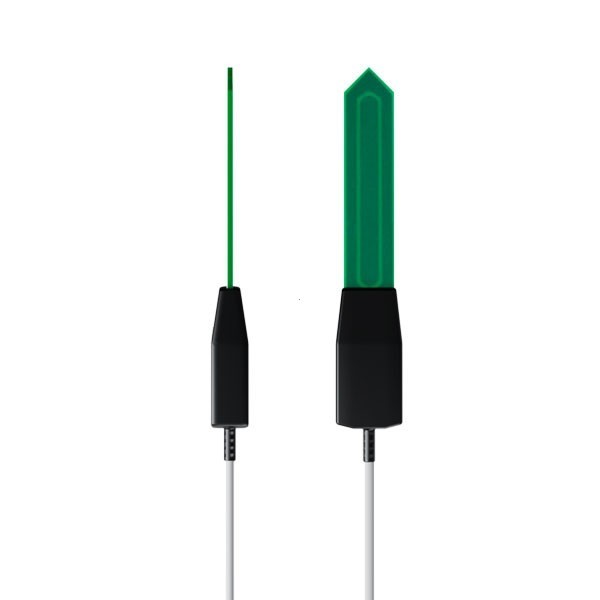

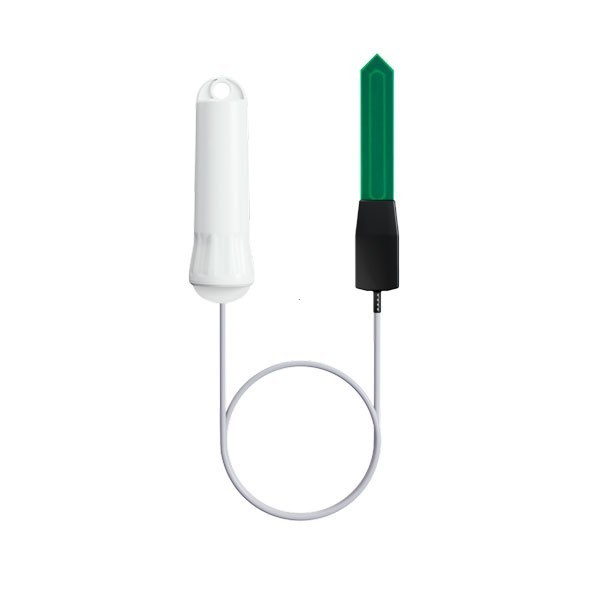

Aranet Soil Moisture or Composting Measurement Sensor Aranet TDSPSM02

Overview

• Soil volumetric water content measurements: 0-100% (accuracy ±15%)
• Protection class: IP67
• Available cable lengths: 1.5 m / 5 m / 10 m / 20 m
• Wireless and battery-powered

Main features:

• Moisture sensor Measuring range: 0 to 100%
• Accuracy: ±15%
• Other technical data
• Maximum range: 3 km (open field)
• Data transmission: Every 1, 5, 10 minutes
• Sensors powered: with AA batteries
• Autonomy @20°C:
• Up to 7 years with Alkaline batteries
• Up to 10 years with Lithium batteries
• Frequency: Depending on the receiver configuration
• Power: 14 dBm
• Housing material: ASA plastic
• Data encryption
• Complies with CE, FCC, IC

Note: To use the moisture sensor you need an Aranet receiver

Areas of application:

• Agriculture
• Industry
• Composting
• Waste

Aranet's system is specifically designed to facilitate log monitoring and provides business owners and quality managers with immediate access to real-time temperature, humidity and other data 24/7 on any browser installed on the local PC for later analysis and printing of log reports.

The Aranet PRO receiver with wireless sensors with a range of up to 3 km (open field) includes free software integrated into the receiver in several languages ​​"Portuguese included" is responsive and adapts to computers, smartphones, tablets or laptops.

Data is transmitted via a wireless network to a PC to view, analyze and compare data in real time, set alarm thresholds and send alarms via email or SMS (GSM module for sending SMS optional), reports can be exported or printed in Excel or other formats. The Aranet PRO receiver allows connection via Ethernet cable (LAN) or local WIFI network.

Benefits of Aranet Pro

• Assists with Quality Control requirements
• Sends alarms via email or SMS (optional SMS module or receiver with integrated GSM module)
• Improves product quality and reduces product waste
• Reduces errors resulting from manual checks
• Eliminates time spent on manual reading
• Alleviates auditing with historical reports

Hardware features:

• Aranet PRO receivers are a wireless monitoring solution for temperature, humidity, CO2 and other measurement quantities. There are 9 versions of Aranet Pro receptors:
  • Aranet Pro 12 (up to 12 wireless sensors)
  • Aranet Pro 50 (up to 50 wireless sensors)
  • Aranet Pro 100 (up to 100 wireless sensors)
  • Aranet Pro Plus (up to 12 wireless sensors with an outdoor environmental)
  • Aranet Pro Plus (up to 50 wireless sensors with an outdoor environmental)
  • Aranet Pro Plus (up to 100 wireless sensors with an outdoor environmental)
  • Aranet PRO Plus LTE (up to 12 wireless sensors with an outdoor environmental)
  • Aranet PRO Plus LTE (up to 50 wireless sensors with an outdoor environmental)
  • Aranet PRO Plus LTE (up to 100 wireless sensors with an outdoor environmental)
• Easy to install and configure
• Reliable, accurate, and durable hardware for long-term monitoring
• Modern, ergonomic design
• Long-lasting, user-replaceable batteries

Aranet sensors are distinguished by their remarkable autonomy, ensuring efficient functioning between 7 and 10 years with the same batteries. This longevity represents a significant advantage, eliminating the need for frequent replacements and thus reducing the production of electronic waste.

Unlike devices that require annual battery changes, Aranet sensors contribute to environmental sustainability by minimizing the disposal of harmful chemical components and reducing the demand for new resources. This innovation reflects a commitment to efficient and ecological technological solutions, promoting a positive impact for both companies and the environment.

With Aranet, technology and sustainability go hand in hand, providing not only accurate and reliable monitoring, but also environmental responsibility.

Aranet with 24 years of engineering experience in this area guarantees the best performance with high reliability and warranty.

See available sensors and receivers from Aranet

Aranet Products

EMI, with extensive experience in wireless systems and continuous monitoring solutions, is available to present the best solution. This, coupled with an unrivalled ability to plan and install robust systems, means you can trust our monitoring system. This is evidenced by the many thousands of companies worldwide that use Aranet systems and technologies.
