Wall-Mount Temperature & Humidity Sensor HTemp-1Wire-Box2 | HW Group

Reference: 600506

Condition: New product

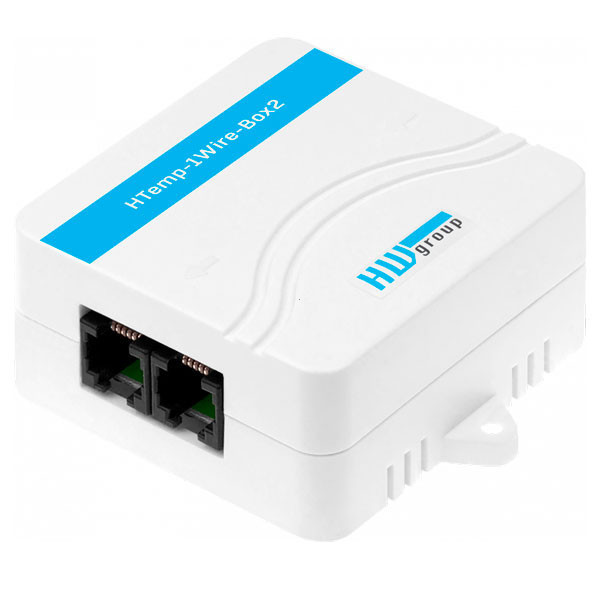

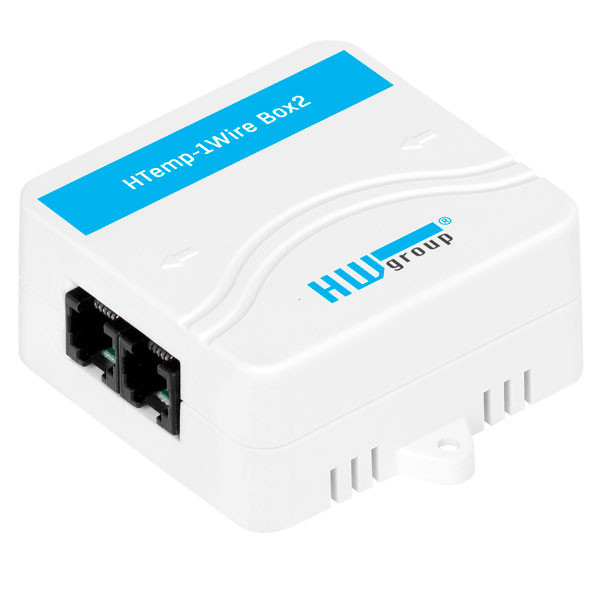

HTemp-1Wire-Box2 Temperature & Humidity Sensor

The HTemp-1Wire-Box2 is an indoor, wall-mount temperature and relative humidity sensor designed for reliable, continuous environment monitoring (−10 °C to +80 °C; 0–100 %RH). Dual RJ11 ports enable easy daisy-chaining and seamless integration with Poseidon, Ares, and HWg-STE devices—cutting cabling and installation time.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Key benefits

Accurate readings for proactive temperature & humidity control.
Clean wall-mount design for server rooms, offices, and storerooms.
Two RJ11 connectors to daisy-chain multiple sensors on one line.
Plug-and-play compatibility with HW Group monitoring gateways.

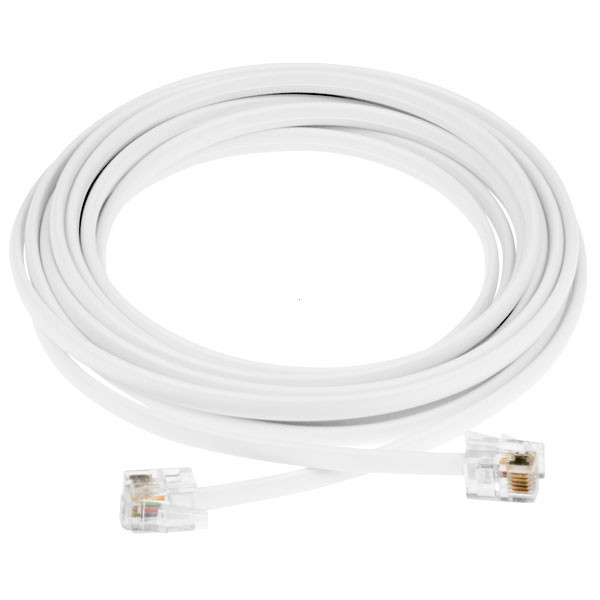

Includes 3 m cable for quick on-site deployment.

Applications and Uses

Temperature and humidity monitoring in IT rooms, offices, and warehouses.
Data centers and racks: rack/cabinet monitoring via LAN/LTE and door access control.
Healthcare and hospitality: SMS/Email alerts, thermostat/hygrostat support with web interface.
BTS stations and industrial facilities using SensDesk (Logistics, Transportation, Data Centers).

Measurements

Temperature
Range	−10 – +80 °C
Accuracy	±0.8 °C
Linearity	—
Repeatability	—
Resolution	0.10 °C
Technology	Semiconductor
Humidity (relative)
Range	0 – 100 %RH
Accuracy	±5 %RH (2–80 %RH non-condensing, 25 °C)
Linearity	—
Repeatability	±0.2 %RH
Resolution	0.30 %RH
Technology	Semiconductor

Technical specifications

Product details
Cable length	3 m
Galvanic isolation	No
Units converter	No
Calibrated points	None
Number of values	2
Power supply	5 V
Consumption	1 mA
Operating environment	−10 °C – +80 °C / 0–100 %RH
Storage environment	−30 °C – +60 °C / 5–95 %RH
Dimensions / Weight	79 × 71 × 30 mm (W×H×D) / 60 g
Warranty	24 months
Environment	Industrial, SoHo, IT
Installation	Table, Wall
Protection	IP30
Connectors	RJ11
Design	Wall-mount

The HTemp-1Wire-Box2 sensor is being used in the following equipment:

Perseus Energy 242
Perseus Energy 285
Perseus Monitoring 145
Perseus Monitoring 140
Perseus Monitoring 155
Perseus Monitoring 150
STE2 PLUS SMS-GW
STE2 PLUS
STE2 LITE
Ares 12 LTE
HWg-Ares 12
STE2 R2
Poseidon2 3268
Poseidon2 3468
Poseidon2 4002

Sensor drift & calibration

All sensors experience long-term drift due to material aging and environmental contaminants (dust, vapors). Typical drift: temperature ≈ 0.1 °C/year (up to ≈ 0.3 °C/year at 100 °C) and humidity ≈ 1 %RH/year. In clean environments, perform annual calibration; in demanding conditions, shorten to 6 months or as needed.
