IEEE 802.3af PoE Injector for Aranet PRO Plus Base Station

Reference: TDAPOE03

Condition: New product

IEEE 802.3af PoE Injector

The active IEEE 802.3af PoE injector delivers a stable 56 V power supply over Ethernet to Aranet PRO Plus/PRO Plus LTE or any 802.3af-compliant device—combining power and data in a single cable to cut installation time and cost.

Note: not compatible with the Aranet PRO base station (Only Aranet PRO Plus).

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Why choose this PoE injector

Standards-based reliability: IEEE 802.3af, 56 V, up to 15.4 W.
One-cable simplicity: power + data over Ethernet for cleaner, faster deployments.
Built-in diagnostics: LED states for valid load, no load, invalid load, and overload.
Perfect fit for Aranet PRO Plus/PRO Plus LTE and other 802.3af devices.

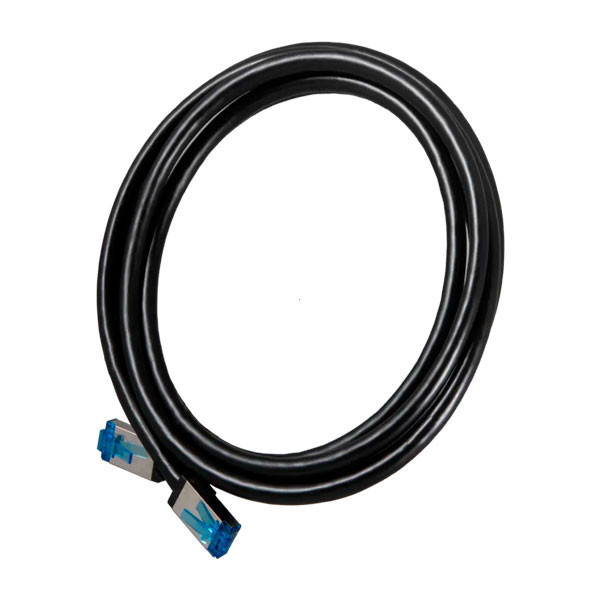

All-in package: includes 2 m CAT6A patch cable and 2 m Type-F power cord.

Typical use cases

Commercial and industrial installs requiring dependable PoE power delivery.
Aranet PRO Plus/PRO Plus LTE monitoring networks.
Sites with limited AC outlets where PoE streamlines infrastructure.

Compatible products

Product name	Product numbers
Aranet PRO Plus Base Station	TDSBOA03, TDSBOAU3, TDSBOAC3, TDSBOAJ3, TDSBOAK3
Aranet PRO Plus LTE Base Station	TDSBOB03, TDSBOBU3, TDSBOBC3

LED status indicators

LED activity	Status description
No activity	Powered off
Blinking green	No active load detected
Solid green	Valid IEEE 802.3af load detected
Blinking yellow, solid green	Invalid load (check the device)
Blinking green, solid yellow	Overload (power off and check load)

Electrical specifications

Parameter	Value
Input voltage (AC)	90–264 V / 47–63 Hz
Output voltage (DC)	56 V
Output current	275 mA
Output power	15.4 W

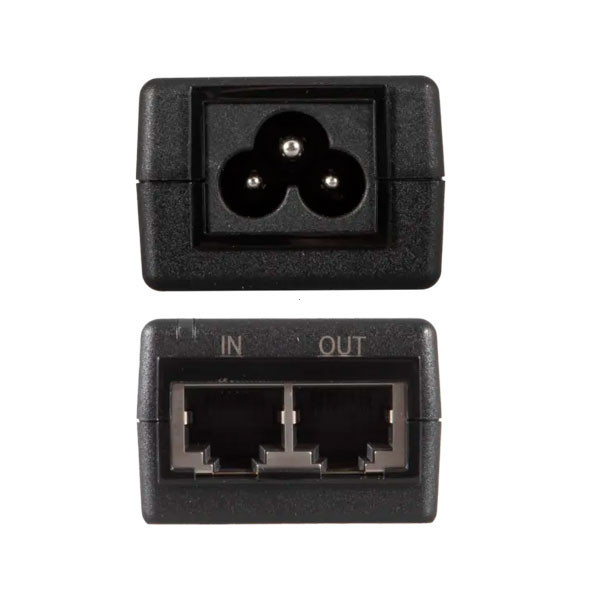

RJ45 ports	1 × Input (Data), 1 × Output (Power + Data)
Compliance	IEEE 802.3af

General specifications

Parameter	Value
Ingress protection rating	IP20
Operating temperature range	-20–50 °C (-4–122 °F)
Weight	100 g (3.5 oz)

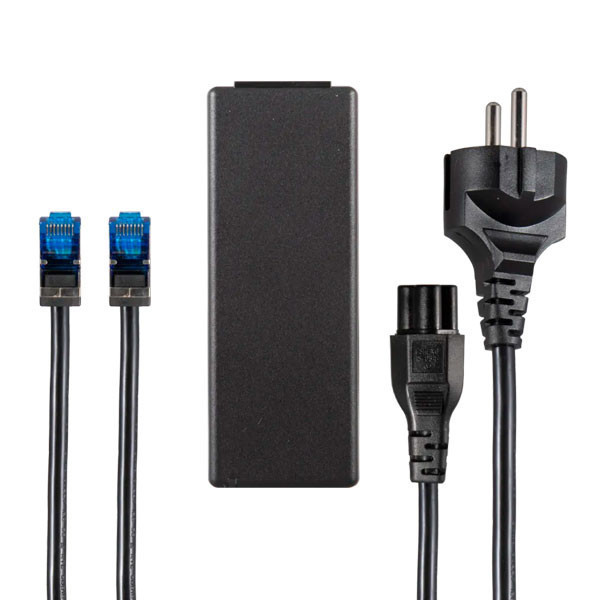

Packaging includes	1 pc CAT6A patch cable (2 m / 6.6 ft), Type-F power cord (2 m / 6.6 ft)

Compliance information

Certification	Region
Conformité Européenne (CE)	European Union
Federal Communications Commission (FCC)	United States
Innovation, Science and Economic Development (ISED)	Canada
