Remote IO Module with SNMP v1 for Monitoring and Control

Reference: TCW122B-CM

Condition: New product

The TCW122B-CM is a remote IO module designed for environmental monitoring and remote control over Ethernet networks. It can be managed through an embedded WEB interface, SNMP software and user applications, making it a flexible solution for technical supervision, automation and distributed monitoring tasks.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Remote IO module for Ethernet-based environmental monitoring and control

TCW122B-CM - Remote IO Module with SNMP v1 for Monitoring and Control

Reference: TCW122B-CM

Ethernet controller for remote environmental monitoring and equipment control, featuring 2 relays, 2 digital inputs, 2 analog inputs, 1-Wire sensor interface and support for SNMP v1, HTTP API and XML.

Request a quote

View technical specifications

Description

This controller includes 2 relays with normally open and normally closed contacts, which can be activated locally according to monitored parameter status or remotely via WEB interface, SNMP managers and HTTP/XML API commands. It also provides 2 digital inputs, 2 analog inputs and a 1-Wire interface for up to 2 temperature or humidity-temperature sensors.

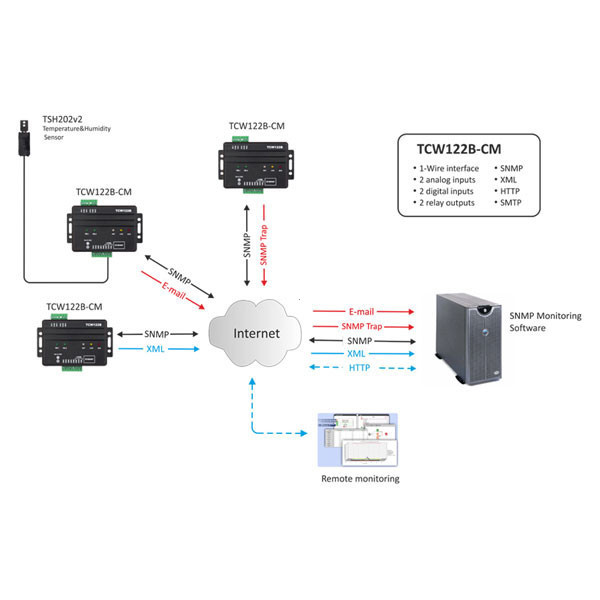

In addition to monitoring temperature, humidity, analog voltage and digital states, the TCW122B-CM can send e-mail alerts and/or SNMP traps for predefined alarm conditions. It can operate as a standalone unit or as part of SCADA systems, making it a dependable choice for data centres, technical rooms, industrial facilities, storage applications and network management.

Key benefits

Remote monitoring of temperature, humidity, voltage and digital contacts.
2 relays for remote or automatic control of electrical devices.
Management through WEB, SNMP v1, HTTP API and XML.
Supports up to 2 1-Wire sensors for temperature or humidity/temperature.
SNMP traps and e-mail alarms for fast event notification.
Suitable as a standalone device or integrated into SCADA.
Password-protected configuration and remote firmware update.
Compact solution for industrial automation, technical rooms, offices and small to medium networks.

Recommended applications

The TCW122B-CM is especially suitable for applications where remote monitoring and distributed control are essential for reliability, automation and fast response. It is particularly recommended for:

Remote environmental monitoring in server rooms, data centres, offices and technical facilities.

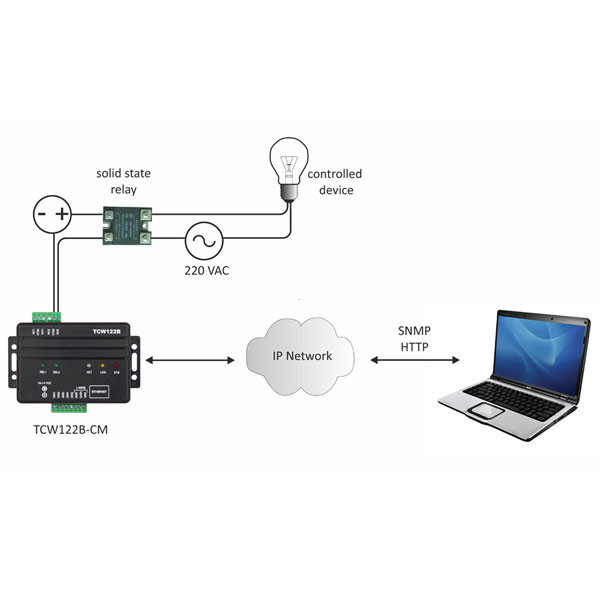

Remote control of electrical devices through the 2 onboard relays.

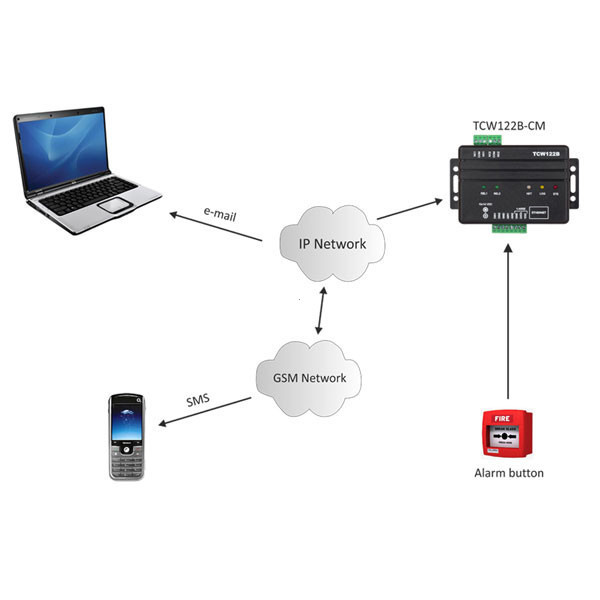

Home and office alarm systems with e-mail or SNMP trap alerts.
Food and pharmaceutical storage temperature and humidity monitoring.
Industrial process automation and SCADA integration.
Small to medium network management with remote supervision needs.

Technical and functional advantages

The TCW122B-CM combines environmental data acquisition, digital status monitoring, analog voltage measurement and relay-based control in a single device. This makes it especially useful in installations that require remote supervision and responsive control without the complexity of larger automation platforms.

Compatibility with SNMP v1, HTTP API and XML status reports simplifies integration with supervisory software, custom applications and automation platforms. Support for NO/NC relays, digital inputs in dry contact or logic level mode, and analog inputs up to 60 VDC adds further flexibility for field deployment.

Technical specifications - TCW122B-CM

The table below summarizes the main TCW122B-CM remote IO module specifications for quick reference on desktop, tablet and mobile devices.

Specification	Value
Product identification and general functions
Model	TCW122B-CM
Type	Remote IO module for environmental monitoring and control
Management	WEB interface, SNMP, user applications
Supported protocols	SNMP v1, HTTP API, XML
Embedded WEB server	Yes
Password protection	Yes
Remote firmware update	Yes
HTTP and SNMP port change	Yes
Operation mode	Standalone or integrated into SCADA systems
Inputs and sensors
Digital inputs	2
Digital input mode	Dry contact or logic level
Analog inputs	2
Sensor interface	1-Wire
Maximum 1-Wire sensors	Up to 2 temperature or humidity-temperature sensors
Relay outputs
Number of relays	2
Relay type	Form C (N.O. and N.C. contacts)
Activation	Local by monitored parameter or remote by WEB, SNMP and HTTP API
Contact current rating	3 A @ 24 VDC / 30 VAC (resistive load)
Initial insulation resistance	100 mega-ohms min. @ 500 VDC
Mechanical endurance	10,000,000 operations
Electrical endurance	100,000 operations @ 3 A resistive load
Contact resistance	50 milli-ohm max. (initial value)
Minimum pulse output	1 Hz at rated load
Ethernet connectivity
Transfer rate	10 Mbit/s
Ethernet mode	Half-duplex only
Auto-negotiation	Not supported
Digital inputs
Isolation	Non-isolated
Maximum input voltage	+5.5 VDC
Minimum input voltage for high logic level	+2.5 VDC
Maximum input voltage for low logic level	+0.8 VDC
Sampling rate	10 ms
Digital filtering time	30 ms
Analog inputs
Isolation	Non-isolated
Type	Single-ended
Resolution	10 bits
Mode	Voltage input
Input range	0 to 60 VDC
Accuracy	±1 %
Sampling rate	37.6 ms per channel (average of 64 samples)
Input impedance	1 mega-ohm min.
Alerts and communication
SNMP traps	Yes
E-mail alerts	Yes
SMTP authentication	Yes
SSL/TLS support	Not supported
Power supply and environmental limits
Operating voltage	10 to 14 VDC
Current consumption	0.2 A @ 12 VDC (with both relays ON)
Operating temperature range	-20 to 55 °C
Storage temperature range	-25 to 60 °C
Operating relative humidity	5 to 85 % non-condensing

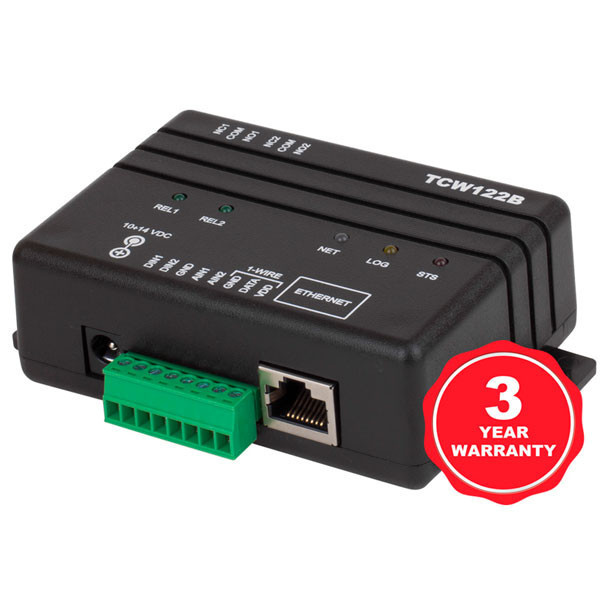

Warranty	3 years
Physical characteristics
Dimensions	109 x 82 x 32 mm
Weight	110 g
Supported sensors
1-Wire temperature sensor	TST100
1-Wire temperature sensor	TST103
1-Wire humidity and temperature sensor	TSH202
1-Wire humidity and temperature sensor	TSH206

Compatible sensors

The TCW122B-CM supports 1-Wire temperature and humidity sensors, allowing a configuration tailored to the installation and the parameters you need to monitor.

TST100 - 1-Wire temperature sensor
TST103 - 1-Wire temperature sensor
TSH202 - 1-Wire humidity and temperature sensor
TSH206 - 1-Wire humidity and temperature sensor

FAQ - Frequently asked questions

What is the TCW122B-CM used for?

The TCW122B-CM is used for remote monitoring of environmental and electrical parameters, while also enabling remote control of equipment through its relays. It is well suited to technical rooms, data centres, warehouses, offices and industrial automation tasks.

How many sensors can be connected?

The module supports up to 2 1-Wire sensors, which can be temperature sensors or combined temperature and humidity sensors.

Can the relays be activated automatically?

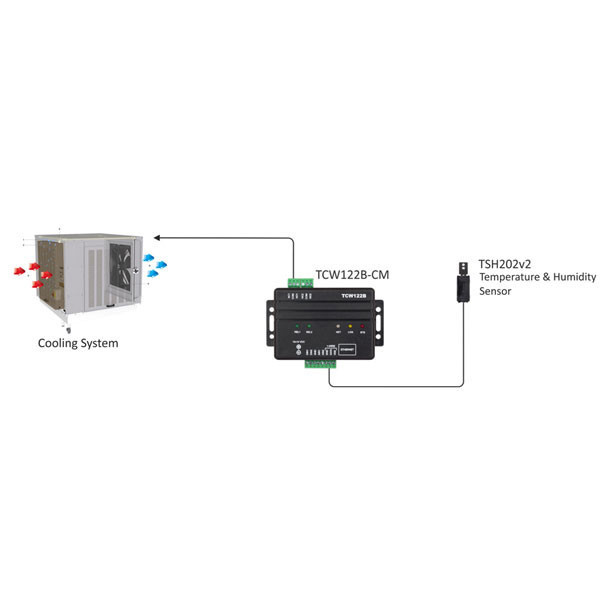

Yes. The relays can be activated remotely through WEB, SNMP or HTTP API, and also locally based on a monitored parameter such as temperature, humidity, analog voltage or digital input status.

Does the unit send alerts?

Yes. For each monitored parameter, the TCW122B-CM can send e-mail alerts and/or SNMP traps when configured alarm conditions are reached.

Is it suitable for SCADA integration?

Yes. Thanks to support for SNMP v1, HTTP API and XML status reporting, the module can be integrated easily into SCADA systems and other data acquisition platforms.
