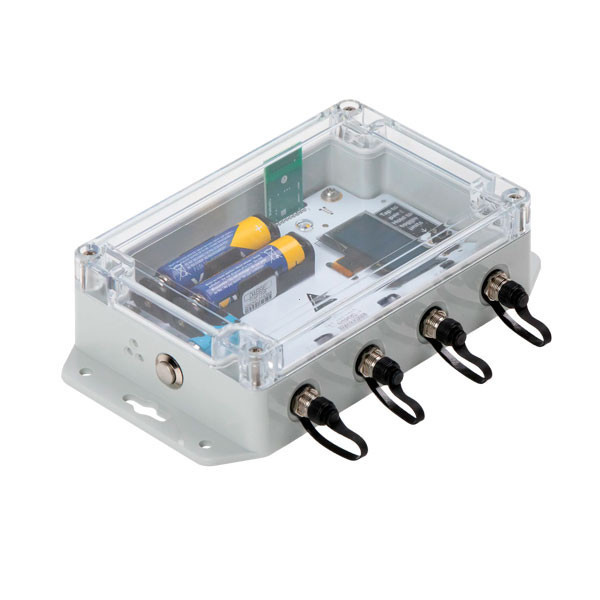

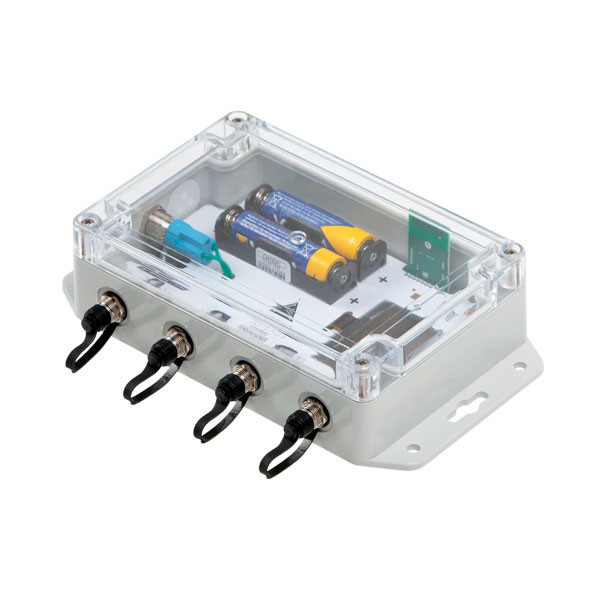

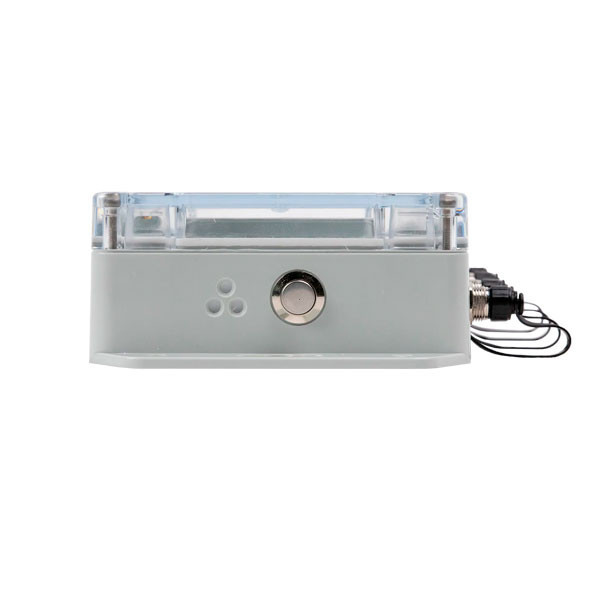

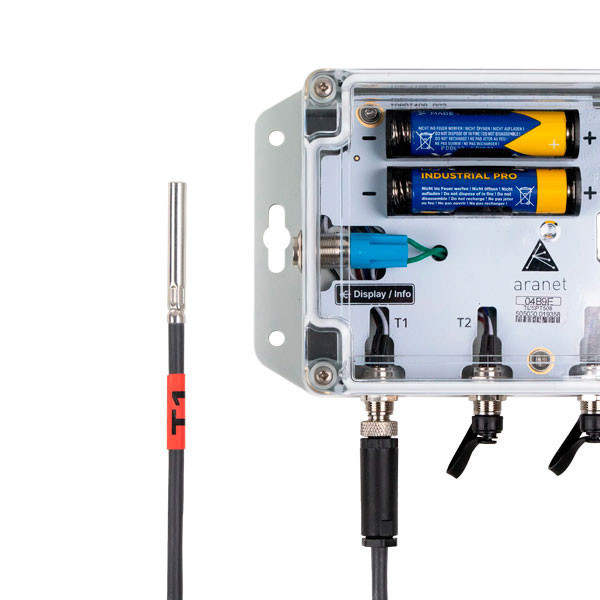

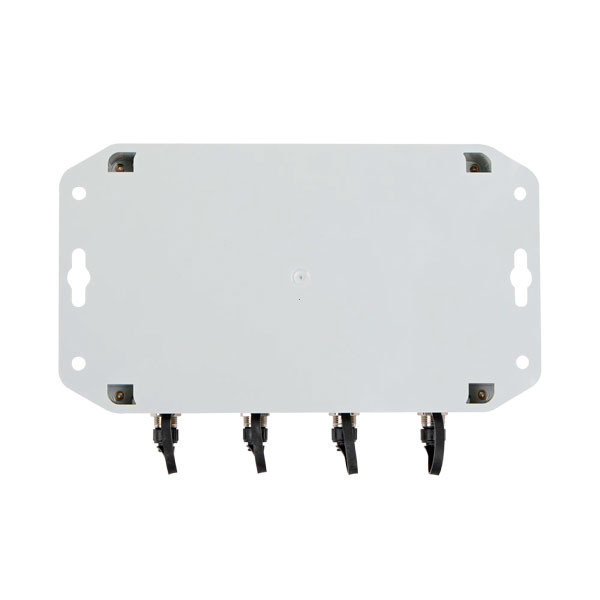

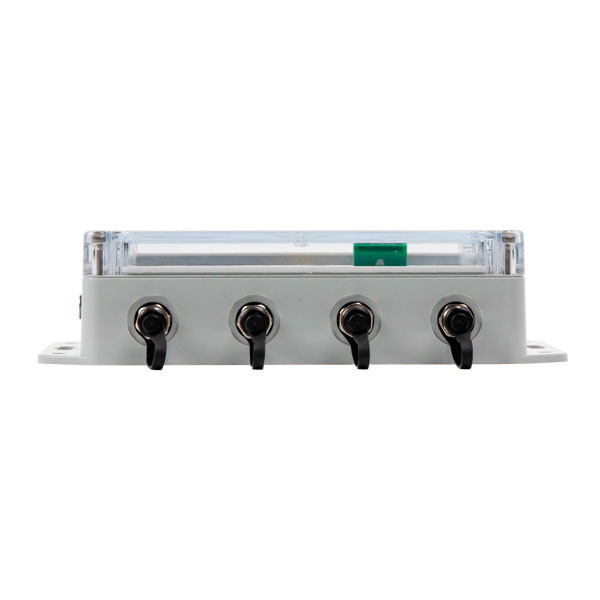

Aranet 4xT-Probe Sensor TDSPT508

Reference: TDSPT508

Condition: New product

Accurate Multi-Point Temperature Monitoring

The Aranet 4xT-Probe Sensor enables precise temperature monitoring across four points simultaneously with four 5-meter PT1000 probes. Perfect for remote monitoring and direct field display, this sensor ensures efficient temperature management across multiple locations in a single setup.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Key Benefits & Applications

Simultaneous temperature measurement at four distinct points with high-precision probes.
Easy installation across multiple areas, including refrigerators, freezers, boilers, and mechanical rooms.
Wireless transmission via Aranet PRO Sub-GHz ISM band radio for reliable data transfer to the base station.
Fully compatible with Aranet PRO base station and Aranet Cloud for integrated monitoring and advanced analytics.
Ideal for HVAC systems, horticultural environments, and any scenario requiring precise, reliable temperature control.

Technical Specifications of the Aranet 4xT-Probe Sensor

Feature	Details
Product Code	TDSPT508
Number of Probes	4
Probe Accuracy Class	Class B
Time Constant τ	3 minutes
Connection Plug	M8 A-code connector with locking nut
Operating Temperature Range	-30 to 180 °C (-22 to 356 °F)

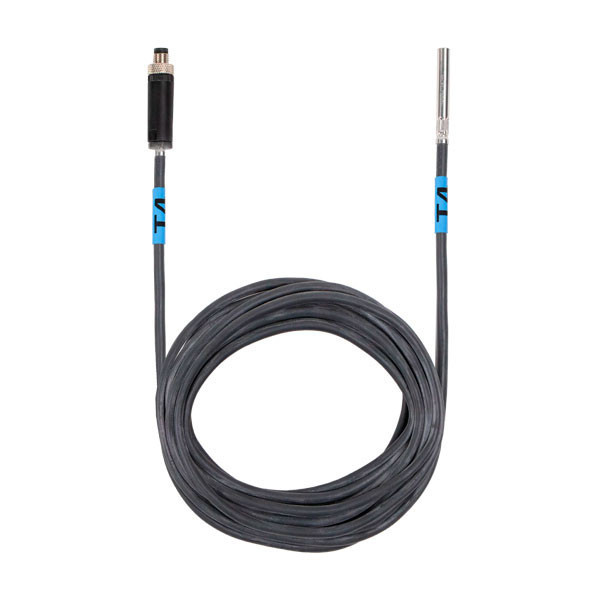

Probe Dimensions	6×100 mm (0.24×4 in)
Probe Material	V4A Stainless Steel
Cable Insulation Material	Silicone
Weight per Probe	175 g (6.2 oz)
Cable Length	5 m (16.5 ft)

Display and Transmitter Performance

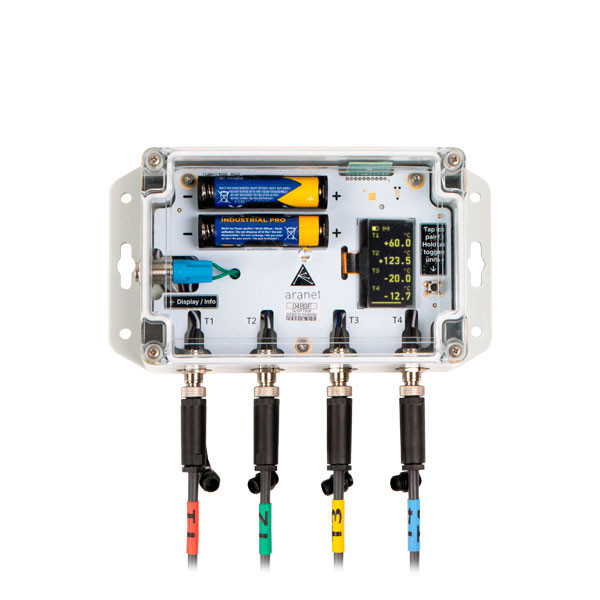

The sensor features a high-resolution OLED display with yellow monochrome content on a black background, ensuring excellent visibility even in low-light environments. The transmitter is robust with IP65 rating, powered by two AA batteries offering extended life depending on measurement intervals.
