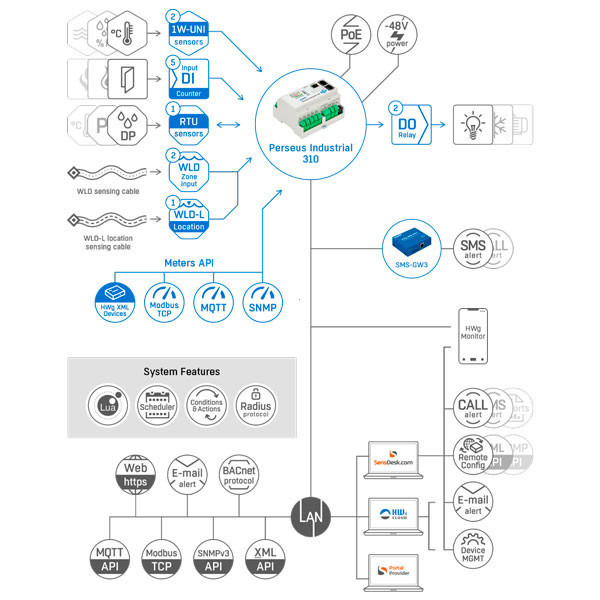

Its architecture combines physical sensors, detectors, meters, Modbus equipment, water leak detection and data from other devices connected to the LAN. This enables the Perseus Industrial 310 to operate simultaneously as a monitoring unit, local controller and data concentrator.

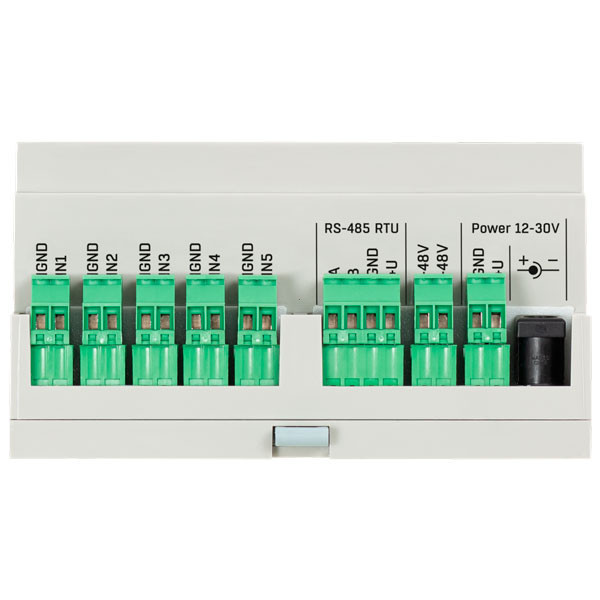

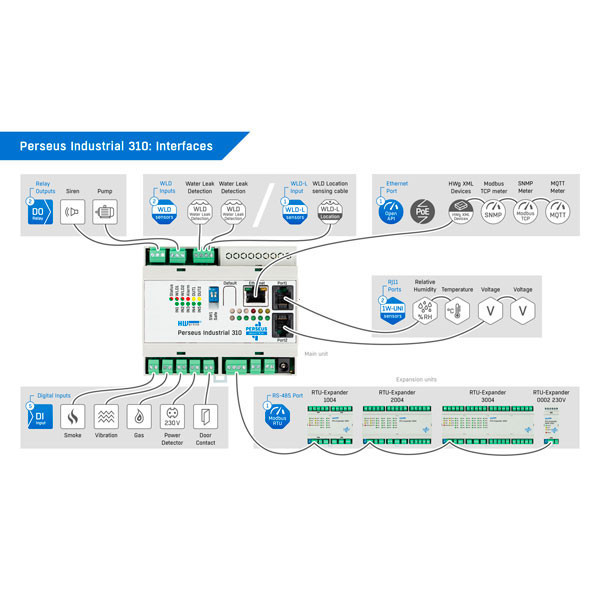

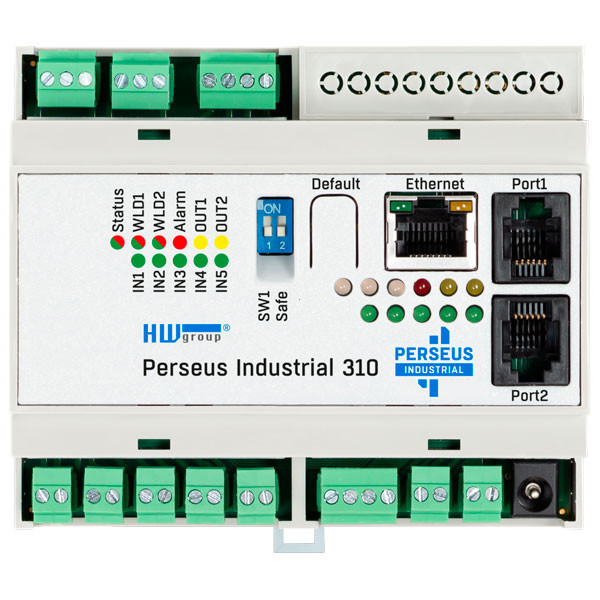

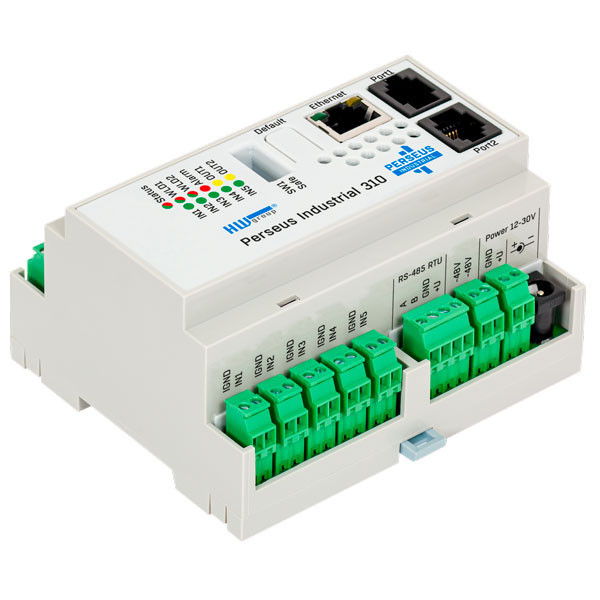

The device provides 5 dry-contact digital inputs, 2 digital relay outputs, 2 RJ11 ports for 1-Wire UNI sensors, 1 RS-485 Modbus/RTU interface and a dedicated WLD-L input for water leak detection and location.

The architecture can also be expanded using DIN rail RTU-Expanders, allowing the number of digital inputs and relay outputs to be increased according to the requirements of each installation.

Key Benefits

• RJ45 100BASE-T Ethernet with built-in web server.
• 2 RJ11 ports, supporting up to 2 external 1-Wire UNI sensors per port.
• 1 RS-485 Modbus/RTU interface via terminal block.
• 5 dry-contact digital inputs.
• Support for pulse counting.
• S0 pulse input compliant with EN 62053-31, Class B.
• 2 relay outputs for local control.
• WLD-L for leak location or two conventional WLD zones.
• Up to 100 meters and 1000 variables.
• Open API with SNMP, XML, Modbus/TCP, MQTT and BACnet.
• Support for IPv6 and SNMPv3.
• WebSocket support.
• Security through HTTPS, RADIUS IEEE 802.1X and user accounts.
• Local conditions and actions, virtual sensors and scheduler.
• Lua scripts for advanced data processing.
• Remote configuration through SensDesk Technology.

Recommended Applications

• Technical room and infrastructure monitoring
• Warehouses and storage areas
• Pharmaceutical environment monitoring
• Remote machine monitoring
• Remote sites and technical installations
• Telecommunications cabinets and BTS sites
• Greenhouses and agricultural applications
• Water leak detection systems
• Electrical and automation cabinets
• Distributed sensor and meter data concentration

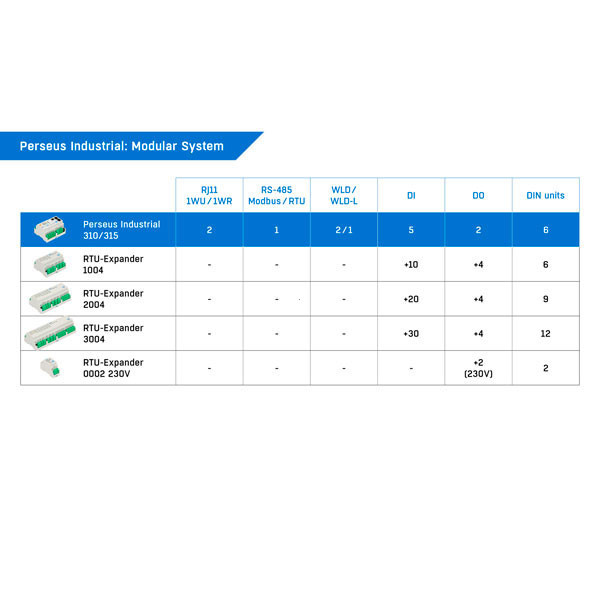

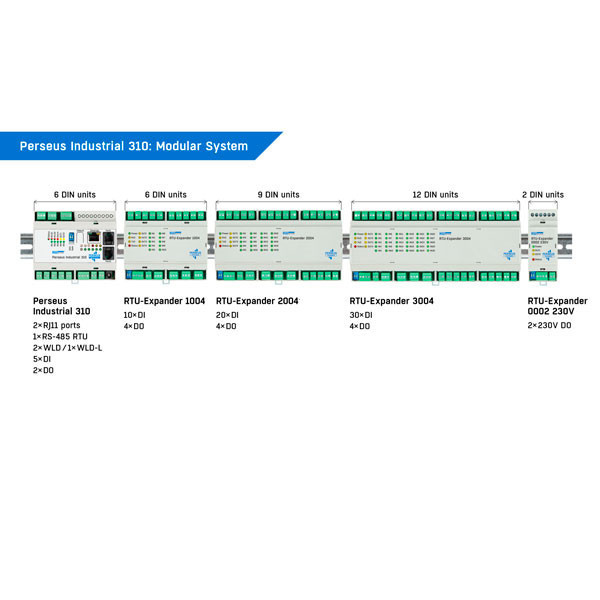

Scalable DIN Rail Architecture

The Perseus Industrial 310 starts with 5 digital inputs and 2 relay outputs. When additional capacity is required, compatible RTU-Expanders can be added through the RS-485 interface.

This modular approach allows the number of inputs and outputs to be adapted to the size of the project, without requiring replacement of the main monitoring unit as the installation grows.

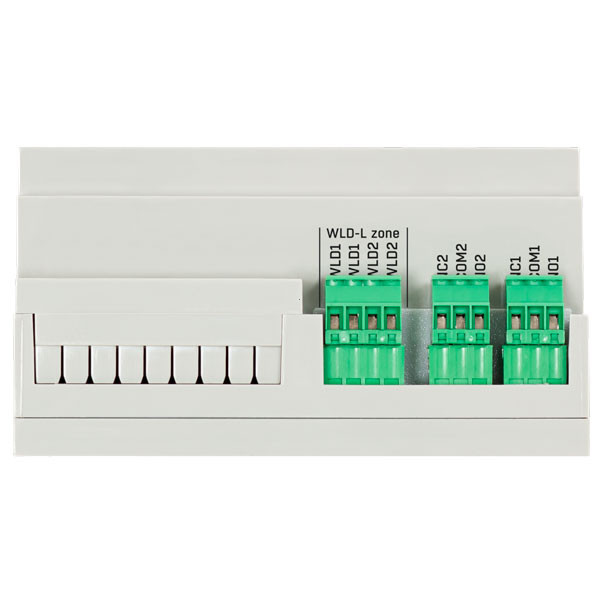

WLD-L – Water Leak Detection and Location

The Perseus Industrial 310 features a 4-pin WLD-L port that can operate in two different modes:

• 1 WLD Type L zone for location-based water leak detection.
• 2 conventional WLD zones for Type A/B sensing cables.

This flexibility allows the same device to be used either for standard water presence detection or for applications where the actual location of the leak must be identified.

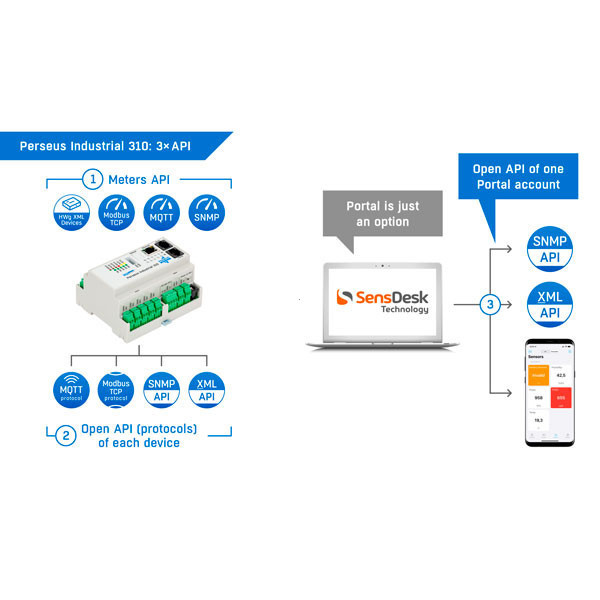

Meters API – Network Device Integration

The Meters API allows the Perseus Industrial 310 to collect values from other devices on the same LAN and use this data in local conditions, alerts, scripts or portal visualisation.

Data sources are supported through Modbus/RTU, Modbus/TCP, SNMP, MQTT and HWg XML, making it possible to integrate HW group devices as well as compatible third-party equipment.

The combination of RS-485 and Modbus/RTU can be used, for example, to read data from energy meters, UPS systems, air-conditioning equipment and other compatible industrial devices.

Alerts and Local Actions

The Perseus Industrial 310 can directly send email and SNMP Trap alerts. SMS and voice call alerts from the device require a compatible external SMS gateway.

The two relay outputs can be controlled through the device interface or automatically according to sensor and detector values. This enables local control actions involving, for example, air-conditioning, ventilation or other compatible equipment.

SensDesk Technology and Remote Monitoring

The Perseus Industrial 310 can be connected to platforms based on SensDesk Technology, providing centralised management of sensors, states and alerts.

Depending on the portal service used, additional features may include graphs, Device Invalid alerts, alarm escalation, PDF reports, multi-user accounts and account-level API access.

Technical Specifications – Perseus Industrial 310

* Sensor limit per port depends on the hardware interface and components used. See the manufacturer manual for the specific configuration.

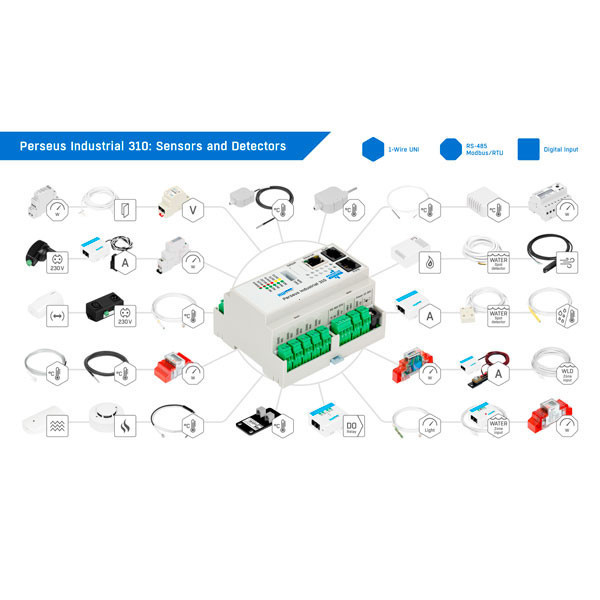

Compatible Sensors, Detectors and Devices

The Perseus Industrial 310 can be used with a wide range of sensors and equipment, including:

• Temperature sensors
• Temperature and humidity sensors
• CO2 sensors
• Atmospheric pressure and TVOC sensors
• Current and voltage sensors
• 4–20 mA and 0–20 mA converters
• Pt100 and Pt1000 probes via compatible converters
• Type A/B WLD sensing cables
• WLD-L leak location systems
• Door contacts
• Smoke detectors
• Motion detectors
• Power presence and power failure detectors
• Modbus energy meters
• Modbus UPS and air-conditioning equipment
• RTU-Expanders for input and output expansion
