Digital Force Gauge PCE-FM 200
PCE-FM-200
New product
Tension and Compression Measurement up to 200 N
The PCE-FM 200 digital force gauge is a professional handheld instrument designed for tension and compression measurements up to 200 N. Featuring a USB interface and data analysis software, it ensures fast and accurate data transfer to your PC, making it ideal for laboratories, material testing and quality control applications.
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Product Description

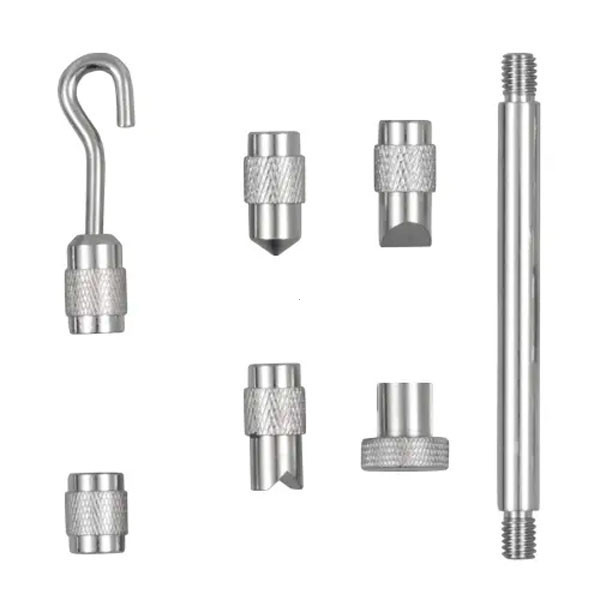

This portable force gauge measures in Newtons (N), kilograms (kg), and pounds (lb), offering flexibility for various measurement tasks. The device comes with interchangeable adapters (flat head, hook, cone, blade, and V-shaped) to suit different surfaces and testing requirements.

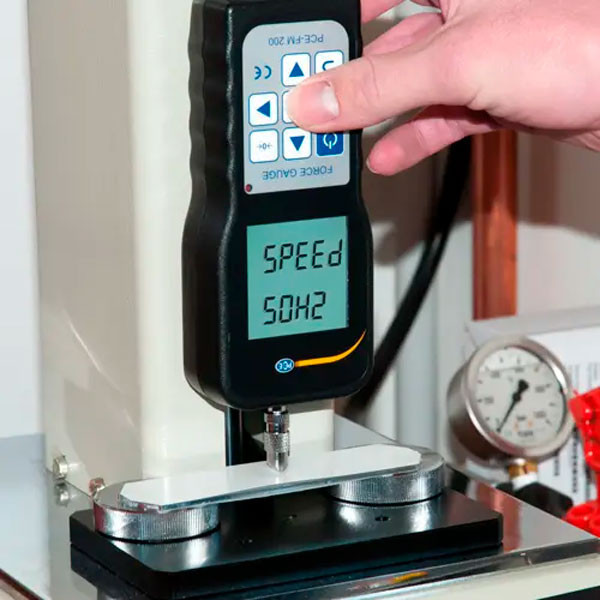

The included 65 mm extension rod allows access to hard-to-reach areas, while the rear threaded hole enables mounting on a test stand for repeatable measurements.
Its high-quality internal load cell ensures long life and precision. To prevent damage, it is recommended to select a force gauge with a measuring range higher than the expected load.
Main Features
- Includes multiple interchangeable adapters
- Data analysis software with USB data transfer
- M6 thread for mounting on a test stand
- Peak value measurement and fast LCD response
- Rechargeable battery operation
- 65 mm extension rod included
- Durable and lightweight construction
Technical Specifications
| Parameter | Value |
|---|---|
| Measuring range | 0 ... 200 N |
| Resolution | 0.1 N |
| Pressure calibration | 1 Mpa |
| Load cell | Internal, M6 thread |
| Accuracy | ±0.5 % |
| Units | N, kg, lb |
| Display | LCD |
| Operating temperature | +10 ... +30°C |
| Relative humidity | 15 ... 80% RH |
| Working conditions | Avoid vibrations and corrosive environments |
| Weight | 1 kg |

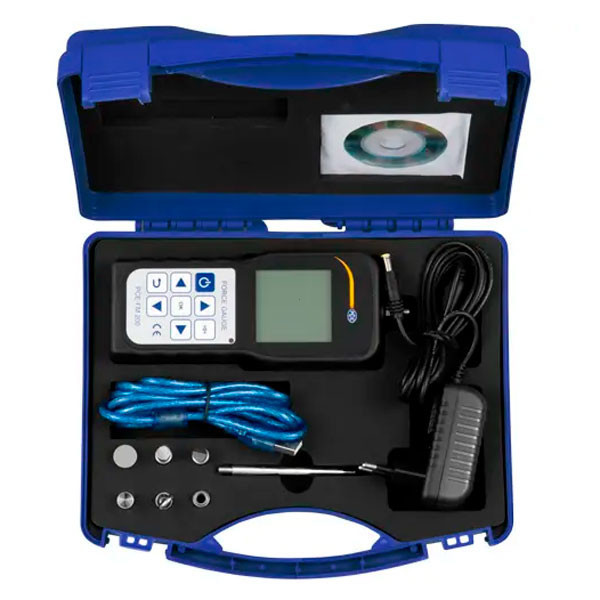

Delivery Contents
- 1 x PCE-FM 200 Force Gauge
- 1 x Data analysis software
- 1 x Flat head adapter
- 1 x Hook adapter
- 1 x Cone head adapter
- 1 x Blade adapter
- 1 x V-shaped adapter
- 1 x 65 mm extension rod
- 1 x USB cable
- 1 x 240 V charger
- 1 x Carrying case
- 1 x User manual
Typical Applications
Perfect for laboratories, plastics, automotive, electronics, and quality inspection. The PCE-FM 200 offers a balance of precision, reliability, and connectivity, making it an essential tool for professional tension and compression testing.
