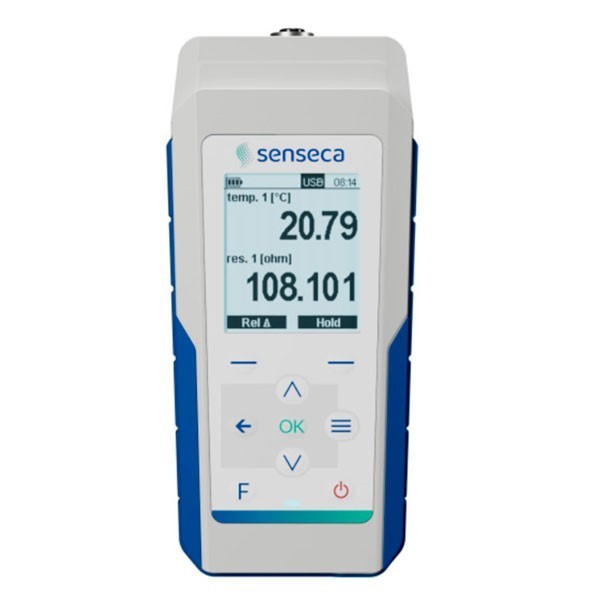

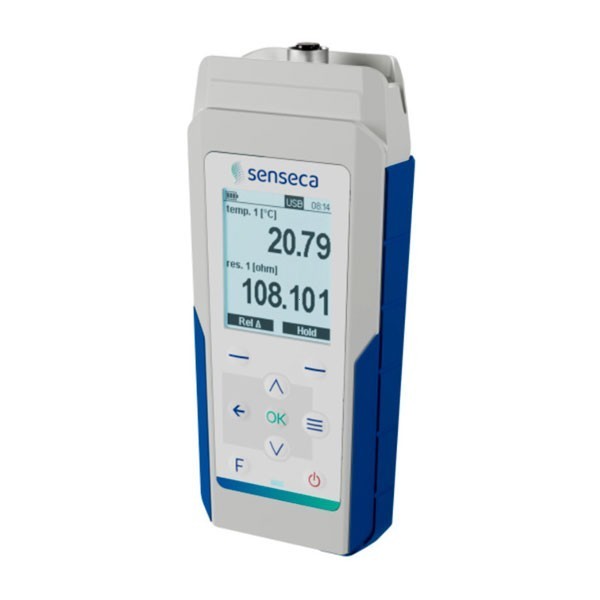

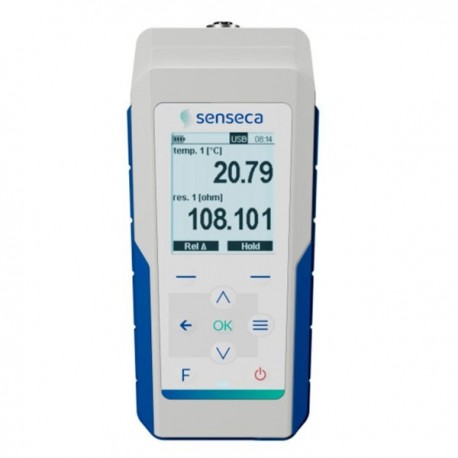

High Precision Handheld Meter - Data Logger For Pt100 4-Wire Probes Senseca PRO115

Additionally, the PRO 115 includes data logging capability, enabling efficient monitoring and detailed analysis of measurements.

PRO 11X - Pt100 4-Wire - High Precision Thermometer with Graphic Display

Advanced Display: High-contrast dot-matrix LCD with excellent visibility in all lighting conditions, including backlighting.

Key Features:

• Analysis Functions: Displays individual values, statistics (MIN, AVG, MAX), and graphical history.
• Measurement Units: Available in °C, °F, and K, with an option to display the corresponding resistance.
• Data Logging (PRO 115 only):
  • Stores up to 1 million data points.
  • Easy export via USB-C in CSV files.
  • Automatic logging with configurable intervals, including date and time stamps.
• Configurable Alarms: Set threshold limits with visual and audible alerts.
• High Accuracy: 0.01°C resolution with a maximum error of ±0.05°C or 0.06% of measured value.

Connectivity & Compatibility

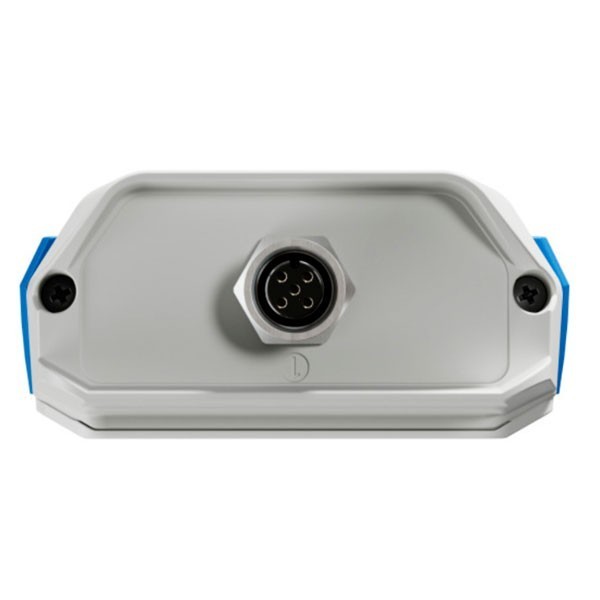

Universal Compatibility: Supports any 4-wire Pt100 probe with an M12 connector.

USB-C to PC:

• PRO 115: Transfer stored data.
• Both models: Connect to ProXware software for analysis and measurement management.

Robust Design & Operational Efficiency

• Advanced Protection: IP67 rated for water and dust resistance, IK04 impact resistance.
• Flexible Power Supply: Operates on 4 AA batteries or external power via USB-C.
• Lightweight & Compact: Weighs 320g with dimensions 170 x 78 x 38 mm.
• Extended Battery Life: Over 150 hours of continuous operation.

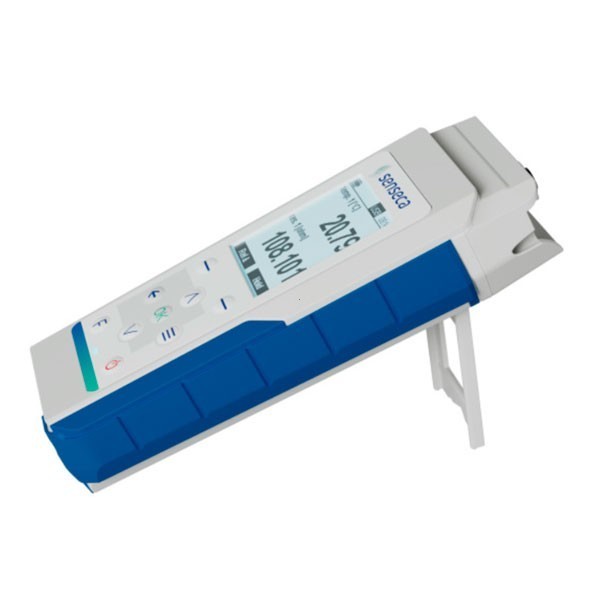

• Ergonomic Design: Foldable stand and magnetic mount for flexible operation.
• Main Specifications
  • Measurement Range: -200 to +850°C / -328 to +1562°F.
  • Multilingual Interface: Supports German, English, Italian, French, and Spanish.
  • Logging Interval (PRO 115): From 1 second to 1 hour.
  • Long-Term Accuracy: Maximum drift of ±0.02°C/year.
  • Operating Temperature: -5°C to +50°C.
  • Statistical Memory: Can be reset by the user.

Conclusion

The PRO 111 and PRO 115 thermometers provide the perfect combination of high precision, durability, and user-friendly operation. With an intuitive interface, advanced logging options (PRO 115), and universal compatibility, they are the ideal choice for professionals requiring reliable, high-accuracy measurements in demanding environments.
