Main Features

Thanks to its ultrasonic sensor technology, it can be mounted directly on the pipeline without cutting or interrupting the system operation. This feature reduces installation time and costs while ensuring continuous and reliable measurement.

In addition to flow measurement, the device also measures temperature via a PT1000 sensor, enabling thermal power calculation—ideal for industries requiring precise thermal control.

Key Benefits

• Fixed installation without process interruption, thanks to clamp-on sensor mounting;
• High accuracy of 1%, ensuring reliable data for quality control and process management;
• Multiple outputs (4-20 mA analog, pulse OCT, Modbus RS-232/RS-485) for seamless automation integration;
• Suitable for pipes with diameters from 25 to 1200 mm, covering a wide range of industrial applications;
• Robust protection rating of IP65 (housing) and IP68 (sensors), ensuring durability in harsh environments;
• Backlit LCD display for clear data visualization even in low-light conditions.

Recommended Applications

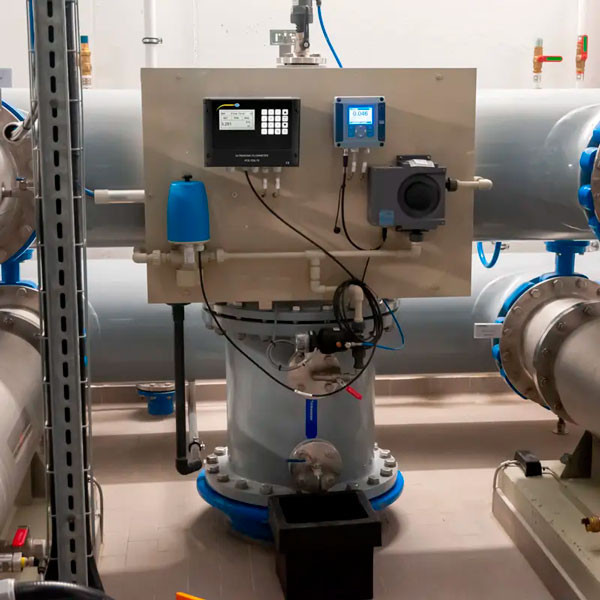

Ideal for water and wastewater treatment, chemical, petrochemical, food industries, and any application requiring continuous monitoring of flow and temperature with high accuracy and reliability. Perfect for systems needing direct integration with process controllers via industrial communication protocols.

Technical Specifications

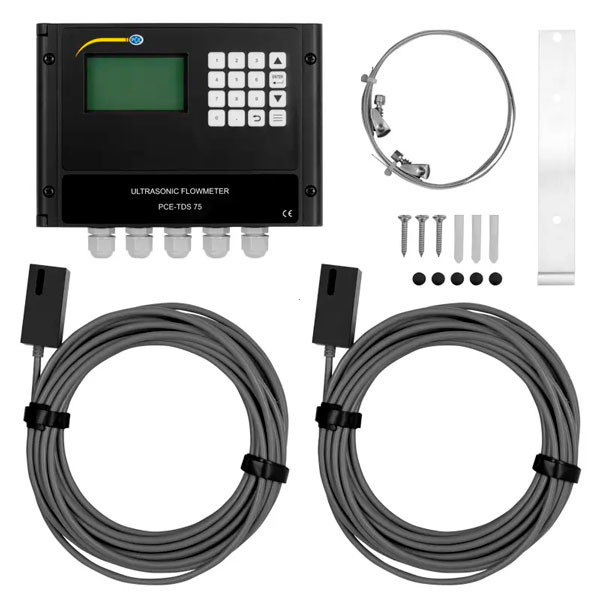

Package Contents

• 1 x Ultrasonic Flow Meter PCE-TDS 75
• 2 x Flow Sensors
• 1 x Wall Mounting Kit
• 2 x Clamps
• 1 x User Manual
