PRO 135.2 - Precision Dual-Channel Thermometer with Data logger and Graphic Display

The PRO 131.2 is a premium dual-channel handheld thermometer designed for professional use with thermocouple probes.

Dual-Channel Thermometer Advanced Display Large storage capacity Real Time Clock Thermocouple types K, J, T, N, R, S, B and E Configurable Alarms Data Logger Function

More details

285,00€ tax excl.

Add to wishlist

More info

Key Features

It combines advanced features, superior durability, and user-friendly operation to deliver reliable, precise temperature measurements across various industrial and laboratory settings.

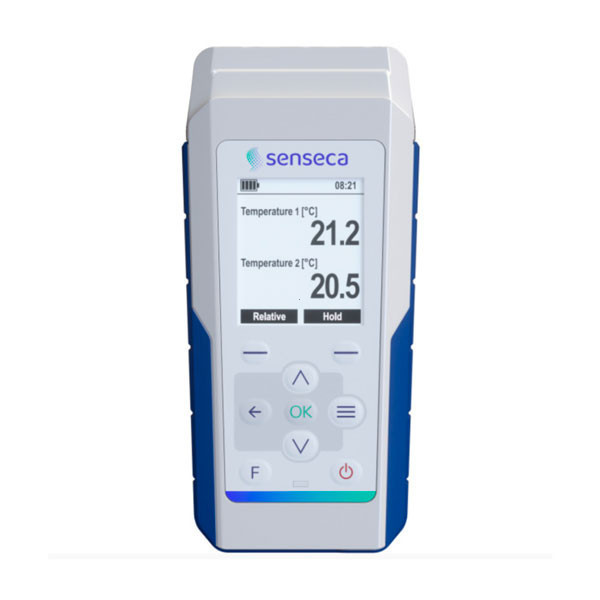

  • Advanced Display: Multilingual large dot matrix LCD with clear text and wide viewing angles, equipped with backlight for easy readability in any lighting condition.
  • Intuitive Functions: Includes HOLD function to freeze readings and REL feature to display relative measurements, supporting °C, °F, and K units.
  • Dual Measurement Capability: Supports two thermocouple probes simultaneously and calculates the difference between channels for enhanced versatility.
  • Configurable Alarms: Customizable thresholds with visual LCD alerts and buzzer activation for immediate notification of out-of-range values.
  • Large storage capacity: up to 1 million data, file system based.
  • The logged data are store in CVS files that can be easily viewed connecting the instrument to a PC via USB: the instrument is seen by the PC as a mass storage device, the data can be read oud and evaluated without software necessarily needed.
  • Automatic log with configurable interval.
  • The instruments integrate a Real Time Clock: date and time of each logged sample are stored.

Applications and Benefits

This precision thermometer is ideal for demanding industrial, laboratory, and maintenance applications where accuracy and reliability are critical. Its broad compatibility with standard thermocouple types (K, J, T, N, R, S, B, and E) allows tailored temperature measurement across various materials and processes.

Thanks to its rugged design and ergonomic form factor, the PRO 135.2 offers shock resistance and ease of handling, making it suitable for continuous use in challenging environments.

Technical Specifications

FeatureDescription
Accuracy±(0.2 °C + 0.2% of reading) ± 1 digit (J, K, N, T, E),
±(0.5 °C + 0.4% of reading) ± 1 digit (S, B, R)
Temperature Inputs2 type K thermocouples
Measurement Rate4 measurements per second
Long-term Drift±0.1 °C per year
Power Supply4 AA batteries (included in the kit)
External power: 5 V DC via USB-C (power adapter or computer USB port).
Power ConsumptionTypical 20 mA
Weight320 g (including batteries)
Battery LifeMore than 150 hours continuous operation
Auto Power-OffYes, user configurable
Enclosure MaterialShock-resistant ABS, TPE (side protection), polyester (front panel)
Measurement RangeK: -220.0…+1372.0 °C / -364.0…+2501.6 °F
J: -200.0…+1100.0 °C / -328.0…+2012.0 °F
N: -200.0…+1300.0 °C / -328.0…+2372.0 °F
S: -50.0…+1750.0 °C / -58.0…+3182.0 °F
T: -200.0…+400.0 °C / -328.0…+752.0 °F
E: -60.0…+850.0 °C / -76.0…+1562.0 °F
Operating Conditions-5 to +50 °C; 0 to 85% RH (non-condensing)
Storage Temperature-25 to +65 °C (without batteries)
Display140 x 160 dot matrix LCD with backlight;
Visible area: 42 x 50 mm;
Shows large values, statistics (min/avg/max), and historical graph.
Dimensions170 x 78 x 38 mm
Standard FunctionsAcoustic/visual alarm, auto power-off, favorites menu
Typical Accuracy±(0.2 °C + 0.2% of reading) ± 1 digit (J, K, N, T, E); ±(1 °C + 0.4% of reading) ± 1 digit (S, B, R)

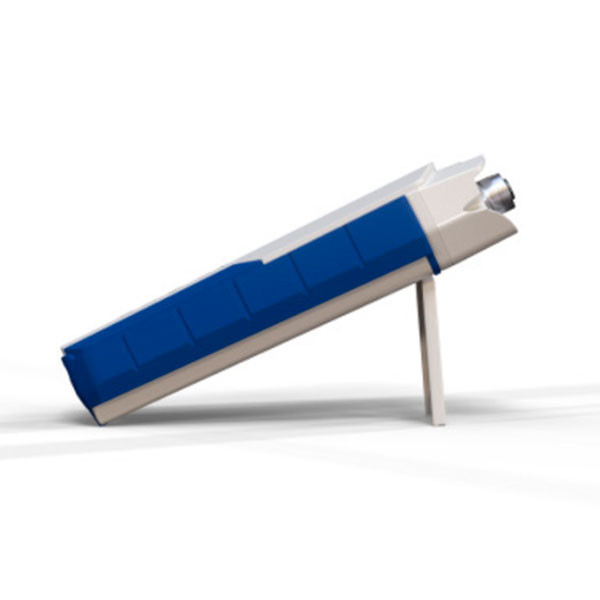

ExtrasFoldable stand and magnet for flexible operation

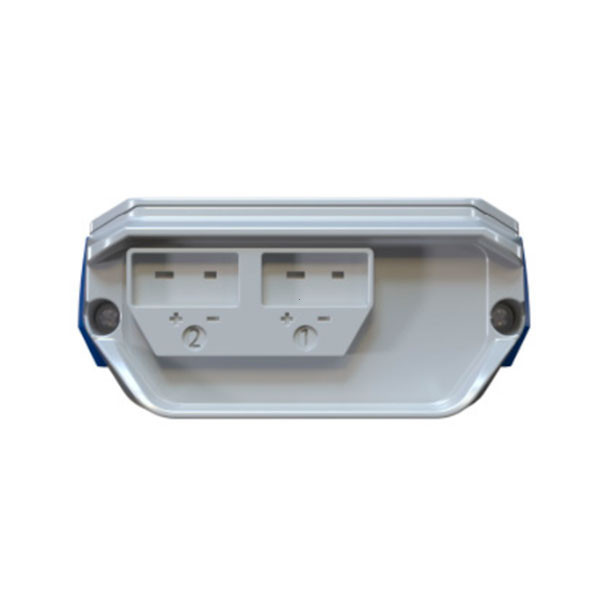

Measurement Connectors2 miniature flat pin connectors for thermocouples, internal temperature
Resolution0.1 °C / 0.1 °F or 1 °C / 1 °F depending on thermocouple type
Cold Junction Accuracy±0.3 °C
Protection RatingIP67 (except probe connection), IK04
Units of Measurement°C, °F, K
Maximum Cable LengthLess than 30 meters
Compatible Thermocouple TypesK, J, T, N, R, S, B, E
Data Logger with USB ReadoutYes
ClockUser-adjustable date and real-time clock (RTC) function, with max drift of 1 minute per month at 25 °C.
User InterfaceMultilingual (German, English, Italian, French, Spanish).
Computer ConnectionUSB C
Storage CapacityUp to 1 million records, based on file system.
Each record includes date/time and measurement.
Data stored in CSV files.
AlarmAlarm limits can be configured with hysteresis. When exceeded, LCD displays the condition and buzzer is activated.
