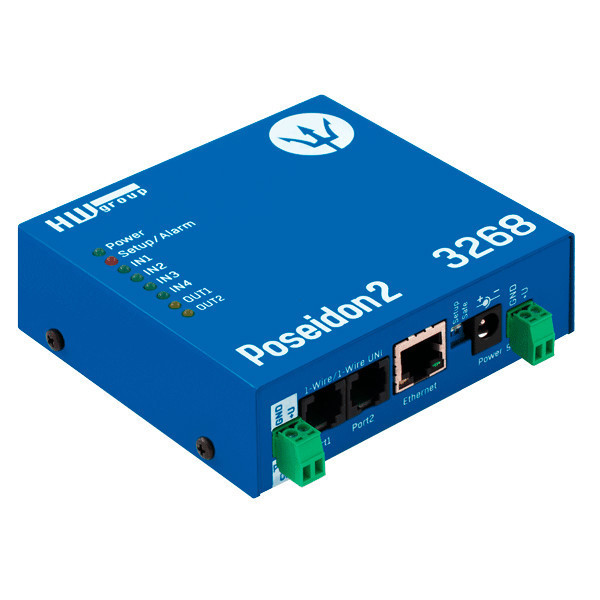

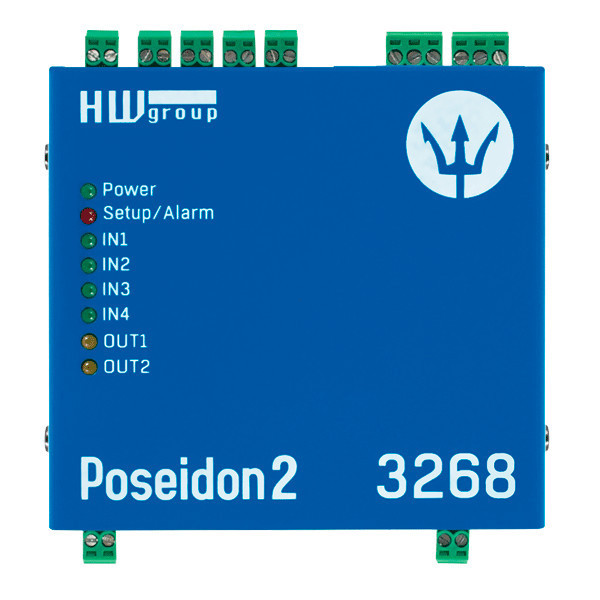

Poseidon2 3268 — Reliable IP Monitoring & Control for Sensors and I/O

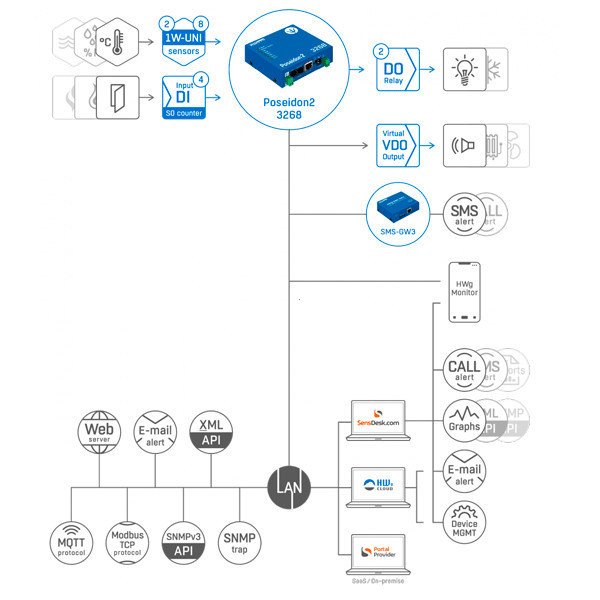

The Poseidon2 3268 connects up to 8 1-Wire UNI/1-Wire sensors and 4 digital inputs, controls 2 local NO/NC relays and up to 8 Virtual Digital Outputs (VDO) on remote units.

MQTT ProtocolE-Mail Alert Modbus TCP Protocol IPv6 https SNMP Protocol SenDesk Portal Counters

More details

458,70€ tax excl.

Add to wishlist

More info

Why it wins

It delivers robust alarms (e-mail, SMS, SNMP Trap, Ring), a >250k data logger, and secure M2M protocols (HTTPS, SNMPv3, MQTT, IPv6) for industrial, IT and smart-building deployments.

  • Scales effortlessly: 8 sensors + 4 DI with non-volatile 32-bit S0 pulse counters.
  • Actionable alerts: e-mail, SMS/Ring (via HWg-SMS-GW3) and SNMP Traps on threshold breaches.
  • Smart control: 2 local relays plus 8 VDO mapped to other Poseidon2/Damocles2 units.

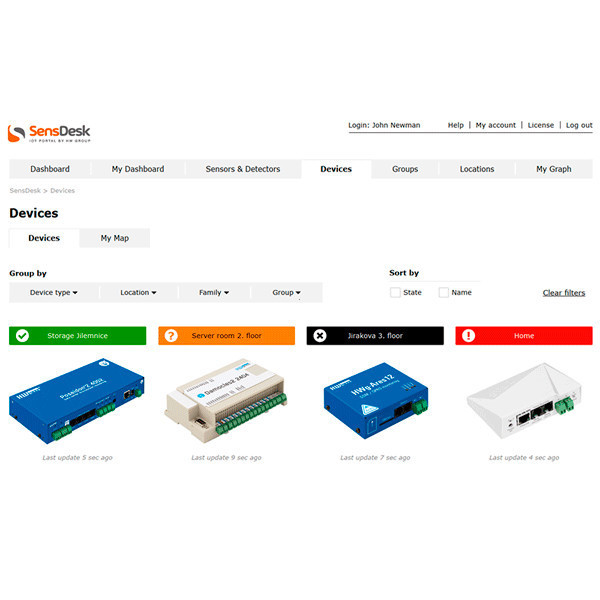

  • Broad integration: 50+ SNMP/SCADA apps, HWg-PDMS, HWg-Trigger, SensDesk Web/Mobile, MQTT to cloud.
  • Secure by design: HTTPS, SNMPv3, IPv6, Modbus/TCP, Syslog for auditing.

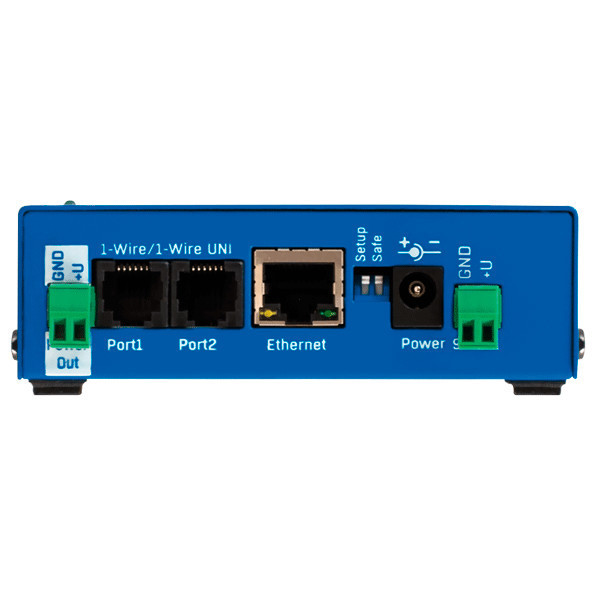

  • Easy rollout: built-in web server, LAN connectivity, optional PoE, and reliable local logging.

Typical use cases

  • Temperature alarms and IP thermostat/hygrostat in IT & data centres.
  • HVAC/ventilation switching for racks and technical rooms.
  • Cold-room and freezer monitoring with alarm escalation.
  • Industrial I/O over Ethernet and smart-building supervision.

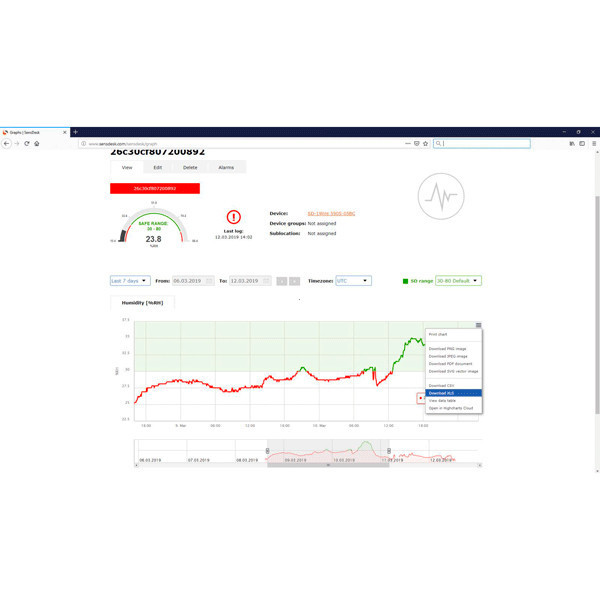

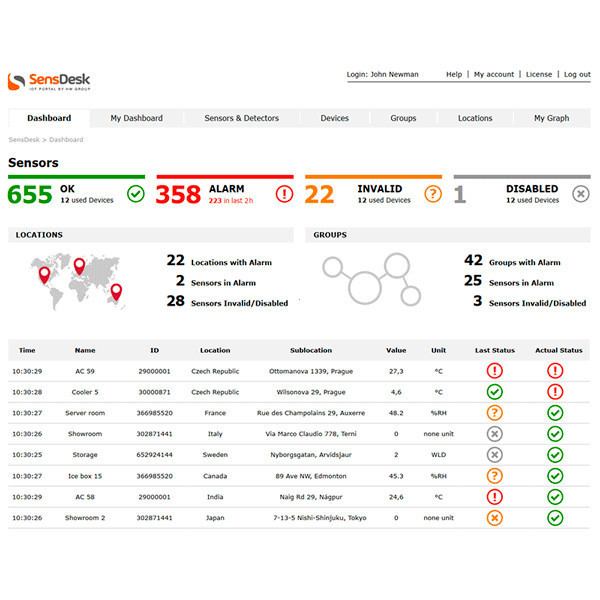

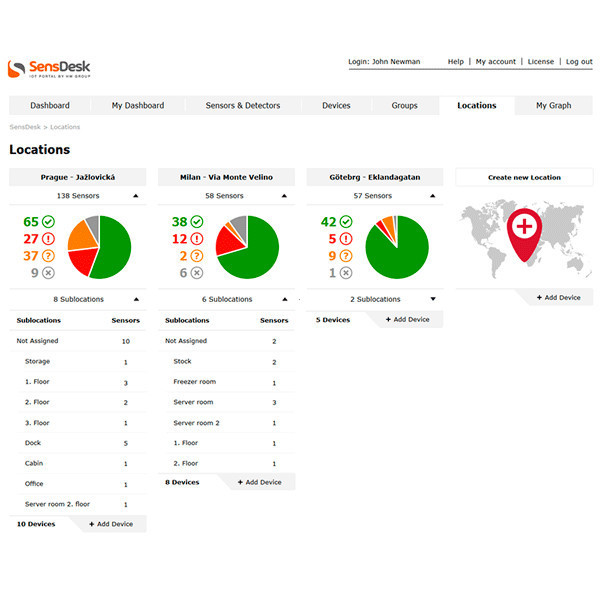

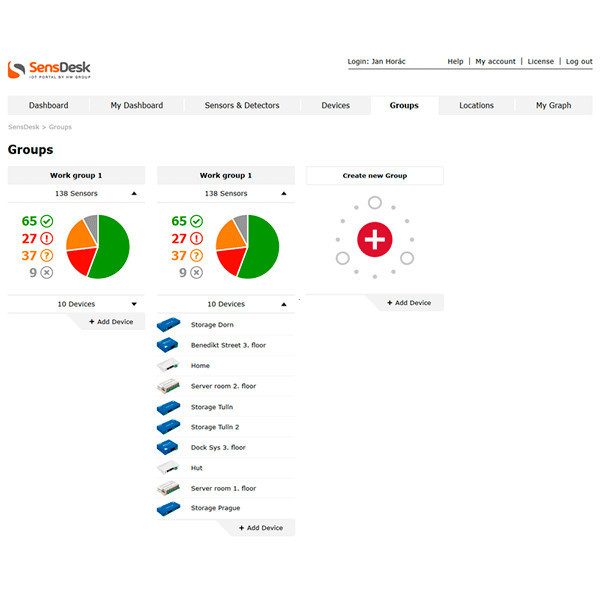

  • Dashboards & analytics: SensDesk (graphs up to 3 months), PDMS (Excel export), Trigger (IF-THEN rules).

Key Features

Highlights
Sensor inputs8× 1-Wire UNI / 1-Wire
Digital inputs4× DI with 32-bit S0 pulse counters (power-fail safe)
Outputs2× NO/NC relays + 8× VDO (remote on Poseidon2/Damocles2)
Data logger> 250,000 records
Alarms5× E-mail, 5× SMS/Ring*, 5× SNMP Trap (*via HWg-SMS-GW3 or GSM modem)
ManagementBuilt-in web server, SensDesk (Web/Mobile), HWg-PDMS, HWg-Trigger

Protocols

Networking & Protocols
HTTP/HTTPSYes / Yes
DHCPYes
SNMPv1 + v3; SNMP Trap: Yes (5 destinations)
SNTPYes
SMTP / SMTP TLSYes / Yes
XML / HWg-PushYes / Yes (SensDesk)
MQTTYes (Azure IoT Hub, IBM Bluemix & others)
IPv6 / Modbus/TCPYes / Yes
Syslog / Net-GSMYes / Yes (SMS GW)

Sensors

Sensors & Adjustments
1-Wire values8
Number of 1-Wire ports2
Comm monitorYes
Virtual valuesNo
Calibration shiftYes

Inputs

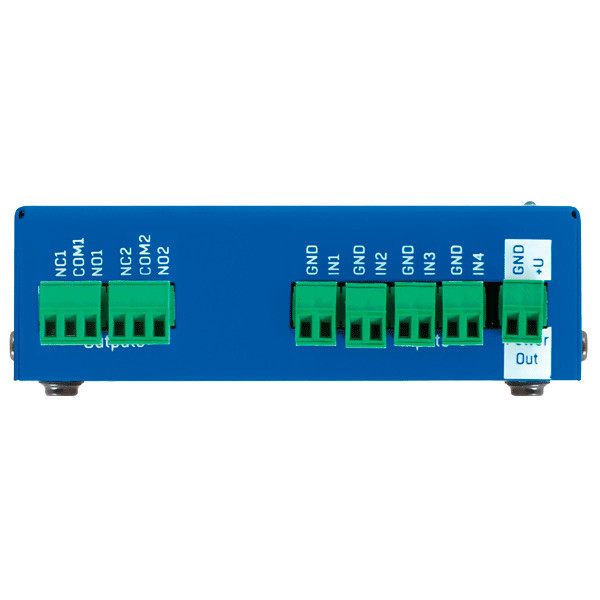

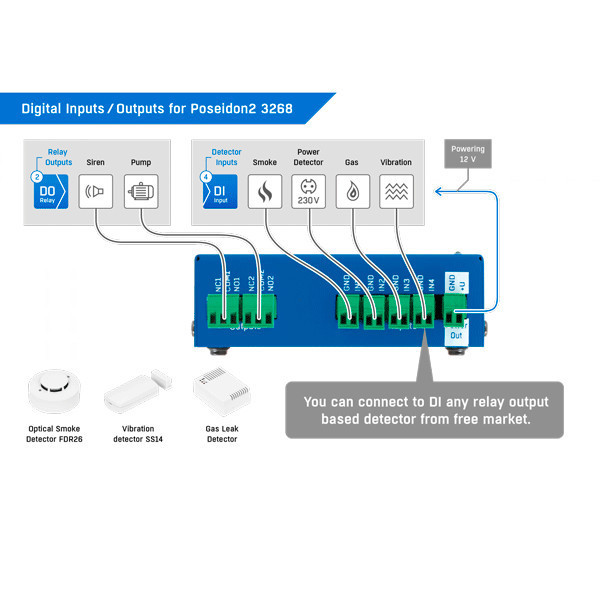

Digital Inputs
TypeDry Contact
Quantity4
CountersYes (S0 32-bit, non-volatile)

Outputs

Local Relays
Load voltage120 V AC / 60 V DC
Load current1000 mA
Quantity2 (NO/NC)
Default pulses / Local conditionYes / Yes
Virtual (Remote) Outputs
Quantity8
Default pulses / Local conditionYes / Yes
MappingTo relays on other Poseidon2/Damocles2 units on the same LAN

Alarms

Notifications & Policies
E-mail destinations5 (templates: no)
SMS destinations5 (via HWg-SMS-GW3 or GSM modem)
SNMP Trap5 destinations
Reminder / Periodical statusYes / Yes
Escalation / Group alarmNo / No

Interfaces

Physical Interfaces
Ethernet10/100 Mbit
Mobile networksNo
1-Wire1
RS-232 / RS-485No / No

Power & Environment

Power, Environment & Dimensions
Power supply9–30 V; 250 mA
PoE / 48 VOptional
Operating range-30 °C to 85 °C / 20%–80% RH
Storage range-30 °C to 60 °C / 5%–95% RH
Dimensions / Weight105 × 94 × 33 mm (W×H×D) / 297 g
Warranty24 months

Type & Build

Classification
EnvironmentIndustrial, SoHo, IT

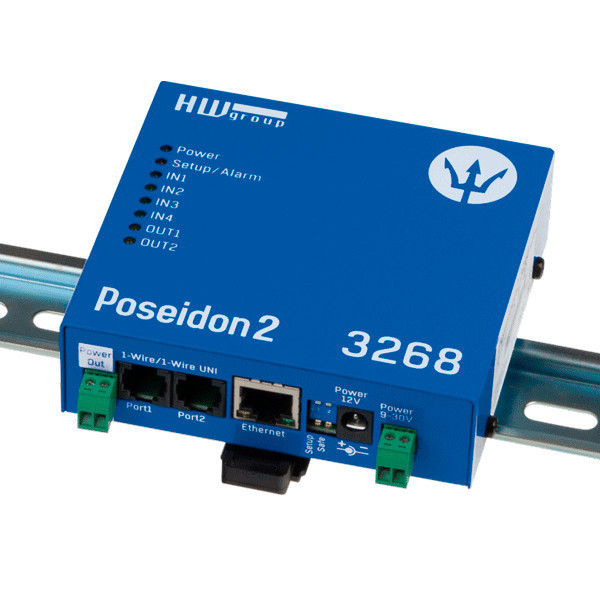

InstallationWall
IP ratingIP40
EnclosureMetal

Other Data

Extras
Logger size250,000
SwitchNo
ConfigurationWeb (built-in)

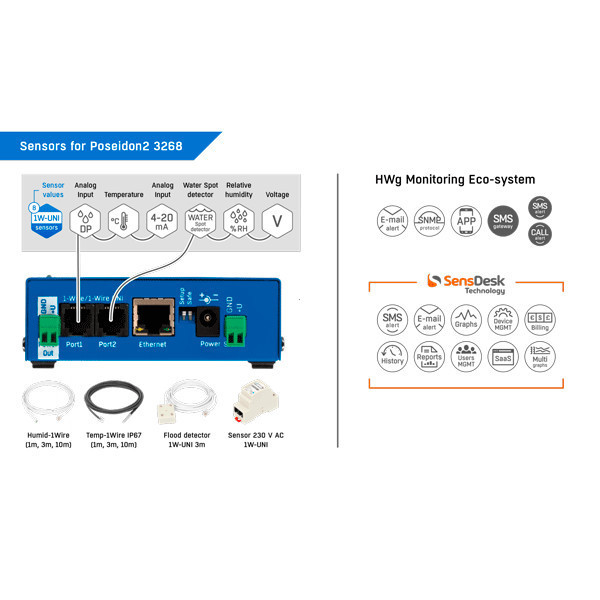

Sensor Types (compatible)

Models
1-Wire: Temp-1Wire Pt100 Frost; Temp-1Wire Pt100; HTemp HomeBox; Temp HomeBox; HTemp-1-Wire Outdoor; Temp-1Wire IP67 (1m/3m/10m); HTemp-1Wire 3m; Temp-1Wire Rack 19; Temp-1Wire-Outdoor 3m; Temp-1Wire-Flat 3m; Humid-1Wire (1m/3m); HTemp-1Wire Rack 19; HTemp-1Wire-Box2.
1-Wire UNI: THPVoc 1W-UNI; CO2 1W-UNI; 30A DC Current probe 1W-UNI; 30A AC Current probe 1W-UNI 2; Temp-1W-UNI Pt100 Frost; Temp-1W-UNI Pt100 Cable; 230V AC 1W-UNI; 4-20mA 1W-UNI; 60V 1W-UNI v2; 0-20mA 1W-UNI.

Detectors & 1-Wire UNI

Models
Binary: Power Detector; PowerEgg2; Door contact MK4; Optical Smoke Detector FDR26; PIR Motion Detector; Gas Leak Detector.
1-Wire UNI: Flood detector 1W-UNI 3m; Binary 1-Wire UNI; WLD Relay 1W-UNI.

Converters

Models
Converter 2×Pt100 1W-UNI; Expander 4×DI 1W-UNI.

Industry Solutions

  • Healthcare (pharmacies, hospitals, labs) — compliance and audit-ready logs.
  • Warehouses & retail — continuous monitoring with cold/hot alerts.
  • Education & public buildings — comfort and leak protection.
  • Industry & manufacturing — SCADA integration and predictive maintenance.
  • Smart cities — distributed telemetry and alarm management.
  • Server rooms — rack door monitoring and environment tracking.

*For Ring/SMS alarms use HWg-Trigger with an external GSM modem, or a HWg-SMS-GW3 gateway on the same LAN.
