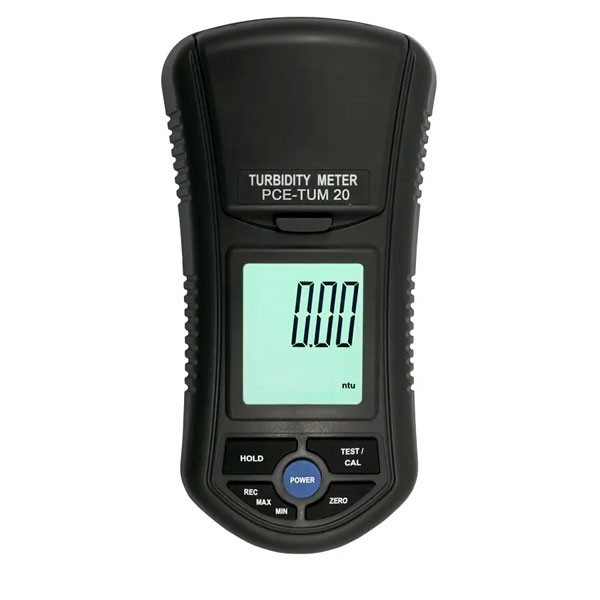

Turbidity Meter PCE-TUM 20
PCE-TUM 20
New product
Product Overview
The PCE-TUM 20 turbidity meter is a high-precision portable device designed for reliable turbidity measurements in drinking water, wastewater, and food industry applications. Equipped with a color graphic display and mains power supply, it complies with the ISO 7027 standard and uses infrared light for consistent, accurate readings.
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Applications
- Quality control in drinking water systems
- Wastewater monitoring in treatment plants
- Food and beverage industry (e.g., wine, beer)
- Educational and laboratory research
Key Benefits
- High accuracy with 0 and 100 NTU calibration standards included
- User-friendly interface with intuitive keypad layout
- Large LCD (41 x 34 mm) for clear readings
- Infrared measurement suitable for colored liquids (e.g., red wine)
- USB interface with MIN/MAX memory functions
- Fully ISO and EN compliant for professional use
Measurement Principle
The turbidity meter uses an infrared LED light source (850 nm) and dual photodiodes (90° and 180°) for measuring turbidity via scattered light (low range) and transmitted light (high range), ideal for both clear and colored liquids.
Measurement Units
Readings are displayed in NTU (Nephelometric Turbidity Units), compliant with ISO standards. Compatible with FTU, JTU (1 NTU = 19 JTU), and SiO₂ units (1 NTU = 7.5 SiO₂ units).
Technical Specifications
| Measuring Range | 0 ... 1000 NTU |
|---|---|
| Resolution | 0.01 NTU |
| Accuracy | ±5 % FS or ±0.5 NTU (whichever is higher) |
| Light Source | Infrared LED (850 nm) |
| Detector | Photodiode |
| Standard | ISO 7027 |
| Response Time | < 10 seconds |
| Sample Volume | 10 ml |
| Display | LCD 41 x 34 mm |
| Functions | MIN / MAX / HOLD |
| Calibration | 0 NTU / 100 NTU |
| Power Supply | 6 x 1.5 V AAA batteries |
| Auto Power Off | 10 minutes |
| Operating Conditions | 0 ... +50 °C, < 85% RH |
| Dimensions | 155 x 76 x 62 mm |
| Weight | 320 g (with batteries) |

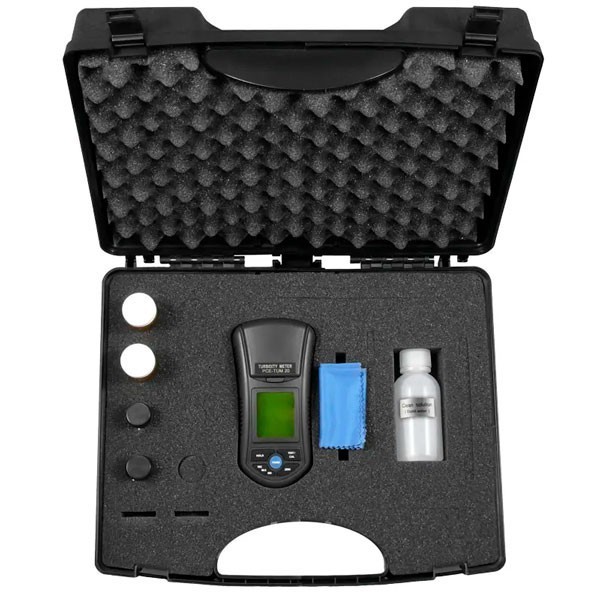

Package Contents
- 1 x PCE-TUM 20 Turbidity Meter

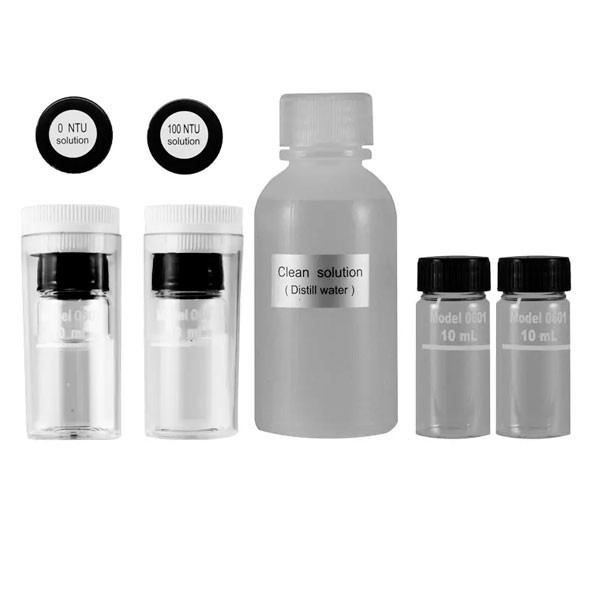

- 1 x 0 NTU Calibration Standard
- 1 x 100 NTU Calibration Standard
- 2 x Measuring Vials
- 1 x Cleaning Solution
- 1 x Cleaning Cloth
- 6 x AAA Batteries
- 1 x Carrying Case
- 1 x User Manual
