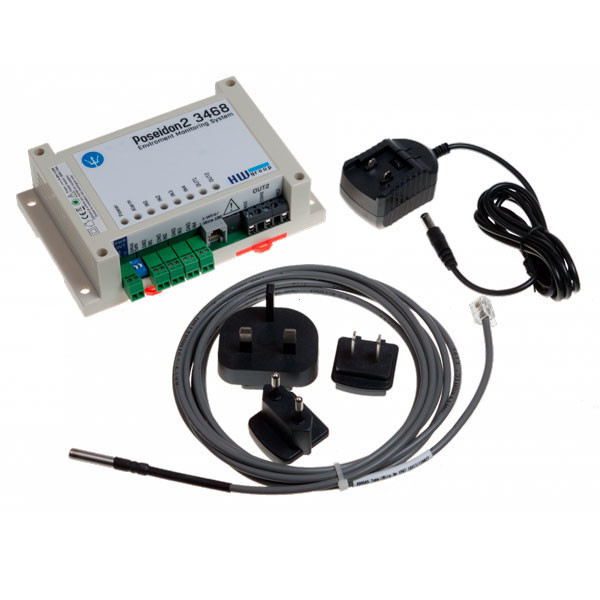

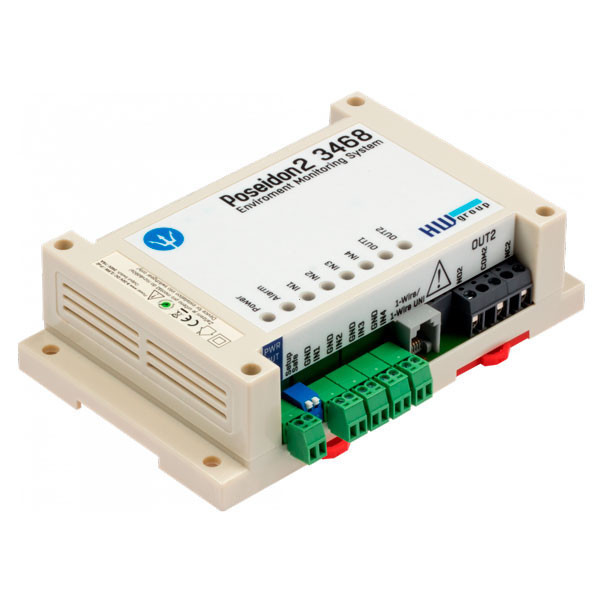

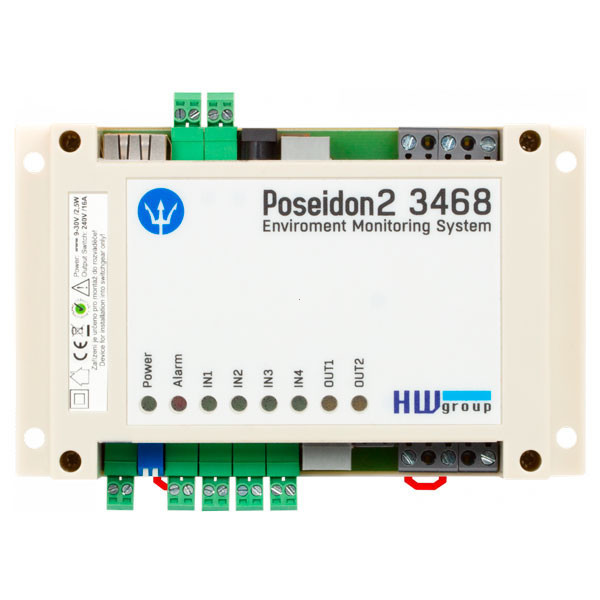

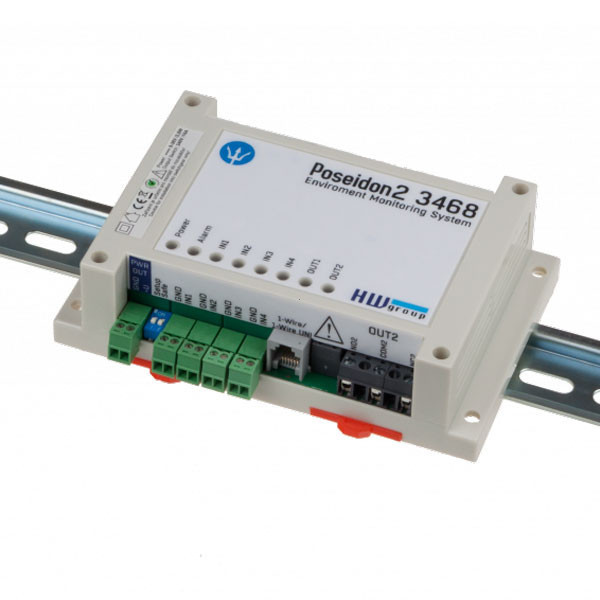

Industrial IoT Monitoring Gateway - Poseidon2 3468

Reference: 600570

Condition: New product

Industrial IoT Monitoring

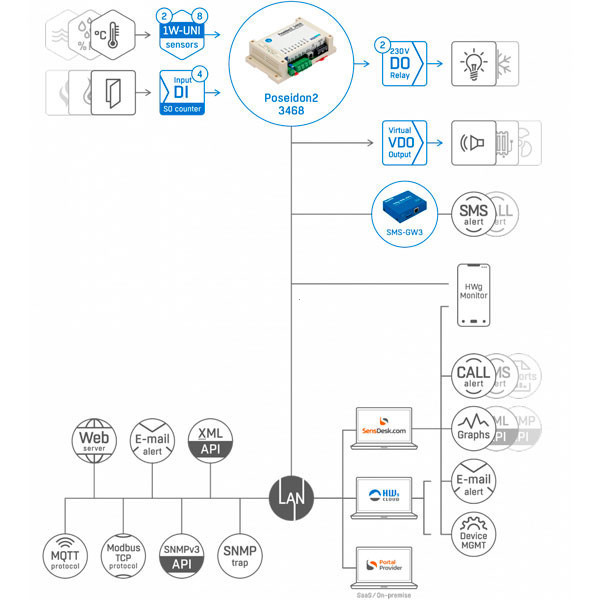

Poseidon2 3468 is a secure Industrial IoT (IoT) monitoring and control device for facilities, data centers and telecom sites. It supports up to 8 1-Wire/1-Wire UNI sensors, 4 dry-contact digital inputs with non-volatile 32-bit S0 pulse counters, two 230 V / 10 A relay outputs, and 8 Virtual Digital Outputs (VDO) on remote Poseidon2/Damocles2 units.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Why it wins — key business benefits

Power options include 9–30 V, -48 V for Telco, and PoE.
Configuration is simple via the built-in web server.
Power options include 9–30 V, -48 V for Telco, and PoE.
Configuration is simple via the built-in web server.
Faster deployment with zero-software setup — onboard web UI.
Actionable alerts: E-mail, SMS/Ring*, SNMP Trap with escalation, reminders and periodic health status.
Local data logging >250k records for audit-ready compliance and zero data loss.
Remote control of local relays and VDO mapped to other Poseidon2/Damocles2 units.
Open integration: HTTPS, IPv6, SNMPv3, Modbus/TCP & MQTT for Azure/IBM and third-party clouds.
Designed for Telco: native -48 V power and PoE for clean rack installs.
Hardened with Syslog and secure protocols for enterprise networks.

*Via external GSM modem or HWg-SMS-GW3 gateway.

Feature highlights

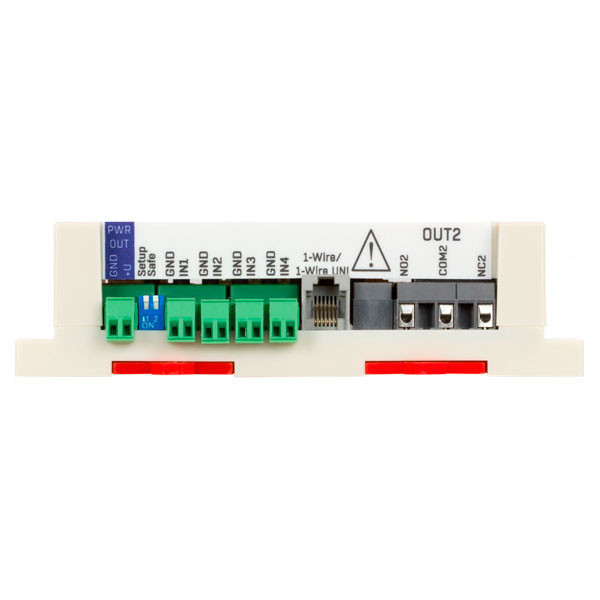

8× 1-Wire/UNI (2 ports) + 4× DI with non-volatile S0 pulse counters.
2× 230 V / 10 A relays + 8× VDO on remote units (LAN M2M).
5 destinations each for E-mail, SMS/Ring and SNMP Trap.
Data logger >250,000 records; HWg-PDMS turns S0 pulses into cost per period (Excel export).

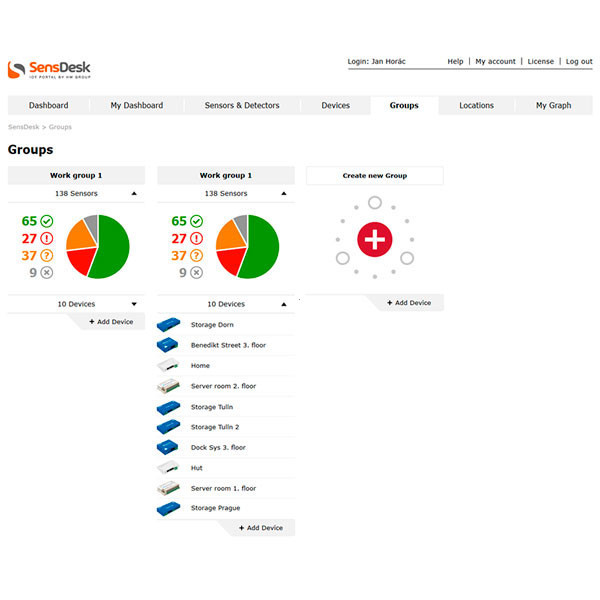

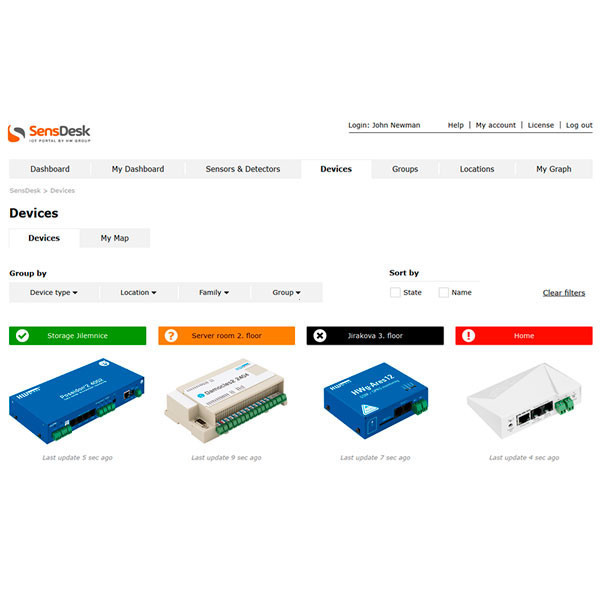

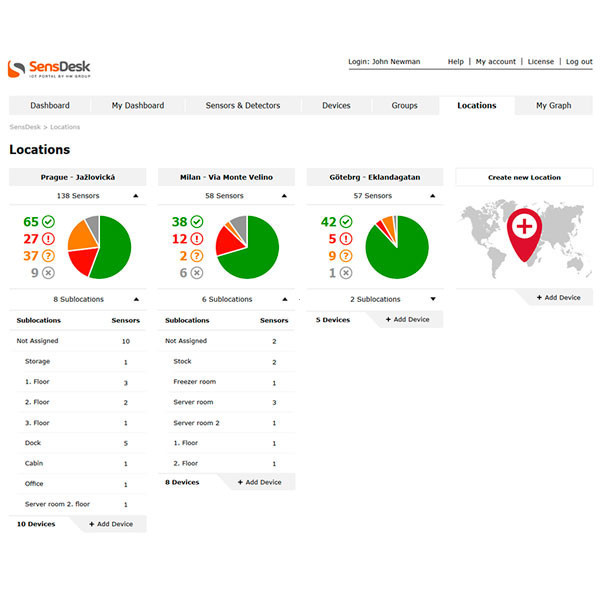

SensDesk Technology portal + iOS/Android app for internet-based supervision.
Works with HWg-Trigger, HWg-PDMS, HWg-Config and a broad HWg-SDK (C/C#/VB/Java/PHP…).

Technical specifications

Parameter	Value
Sensors & Inputs
1-Wire/1-Wire UNI	Up to 8 values (2× 1-Wire ports)
Digital Inputs	4 × Dry Contact, 32-bit S0 pulse counters (retain value on power loss)
Outputs
Local Relays	2 × 230 V / 10 A (max current 16 A)
Virtual Digital Outputs	8 VDO (map to other Poseidon2/Damocles2 relays on the same LAN)
Logging & Alerts
Data Logger	> 250,000 records
Notifications	5 E-mails, 5 SMS/Ring*, 5 SNMP Traps; reminders, periodic status, escalation
Protocols & Integration
Networking	HTTP/HTTPS, DHCP, SNMP v1/v3, SNMP Trap, SNTP, SMTP/SMTP TLS, XML, HWg-Push (SensDesk), MQTT, IPv6, Modbus/TCP, Syslog, Net-GSM
Software	SensDesk portal & Mobile, HWg-PDMS, HWg-Trigger, HWg-Config, HWg-cloud.com, Nagios, CapTemp; +50 SNMP/SCADA tools; SDK examples (C/C#/VB/Java/PHP…)
Interfaces
Ethernet	10/100 Mbit; 2× 1-Wire ports; RS-232/RS-485: No; Mobile networks: No
Power & Environment

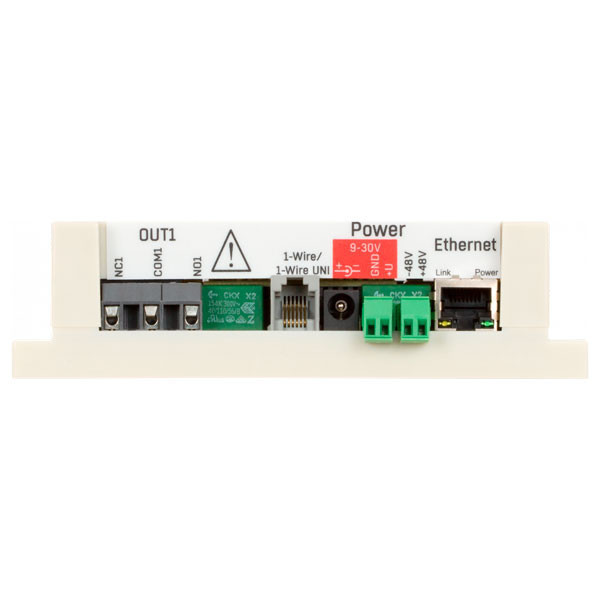

Power Inputs	Jack 9–30 V (Ø 2.1 mm), Terminal 9–30 V, Terminal -48 V, PoE (RJ-45)
Typical Consumption	150–250 mA (by source); PoE/-48 V: Yes
Operating / Storage	-30 °C…75 °C / 20–80% RH; Storage: -30 °C…60 °C / 5–95% RH
Mechanical

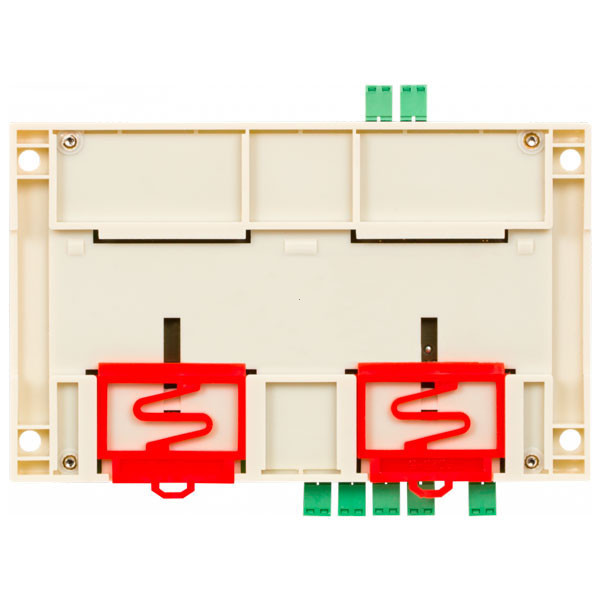

Dimensions / Weight	141 × 90 × 40 mm (W×H×D) / 257 g
Warranty	24 months

Compatible sensors & detectors

1-Wire (examples)

Temp-1Wire (IP67 1/3/10 m, Flat 3 m, Rack 19")
HTemp-1Wire (Indoor/Outdoor, 3 m, Rack 19", HomeBox)
Temp-1Wire Pt100 / Pt100 Frost

1-Wire UNI

THP/VOC, CO₂ sensors
30 A AC/DC current probes
4–20 mA / 0–20 mA / 60 V / 230 V AC inputs
Temp-1W-UNI Pt100 (cable/Frost)

Detectors

Power Detector, PowerEgg2, door contact
Optical smoke (FDR26), PIR motion, gas leak
Flood detector 1W-UNI 3 m, WLD Relay 1W-UNI

Converters & I/O

Converter 2×Pt100 1W-UNI
Expander 4×DI 1W-UNI

Software, cloud & integrations

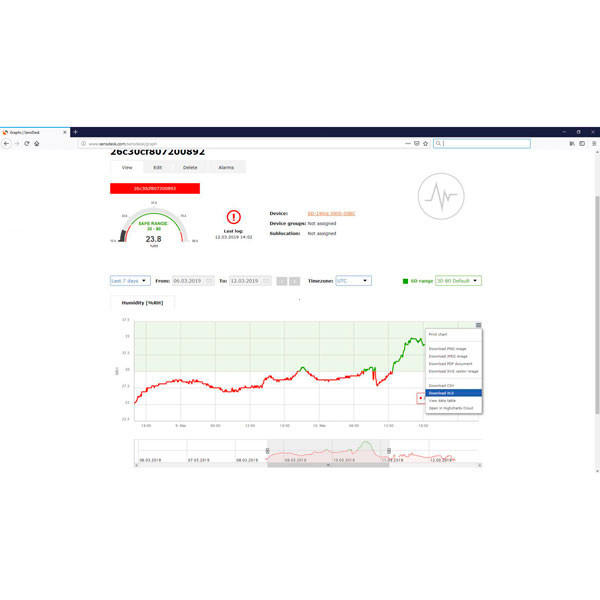

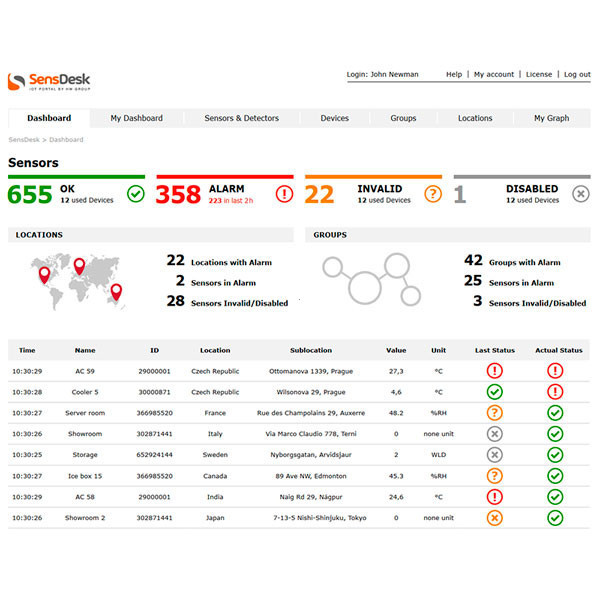

SensDesk Technology web portal & mobile app — live charts, 3-month history, E-mail/SMS alarms (with HWg-SMS-GW3).
HWg-PDMS — aggregate data and export to Excel; convert S0 pulses to cost per period.
HWg-Trigger — rules for Ring/SMS and local/remote automation.
MQTT — easy IoT hub integration (Azure, IBM Bluemix and more).

When a reading goes out of safe range or a DI changes, the unit sends an E-mail/SMS/SNMP Trap or toggles a remote relay.
