Vacuum & Pressure Gauge with Compensation Port

Reference: ECO 240‑1‑UT-VAC

Condition: New product

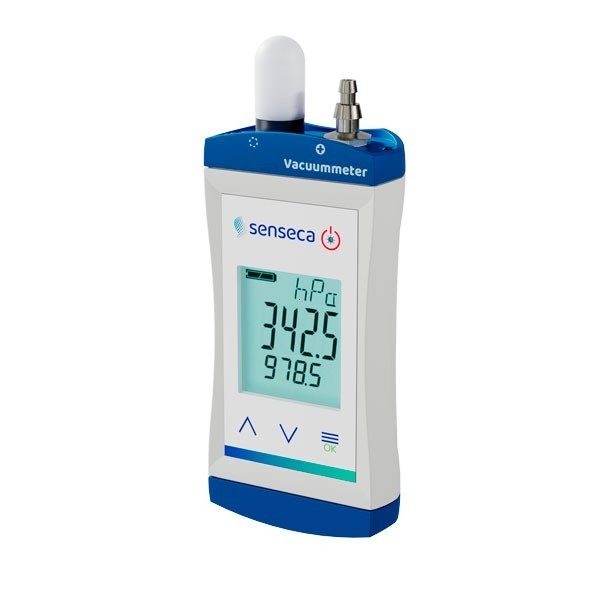

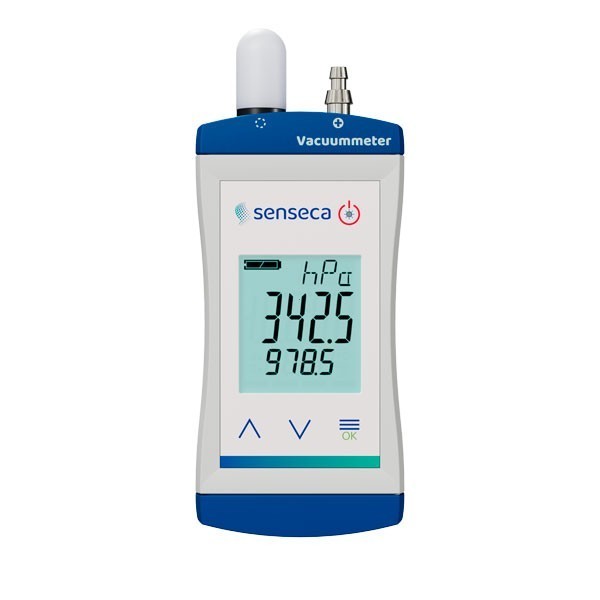

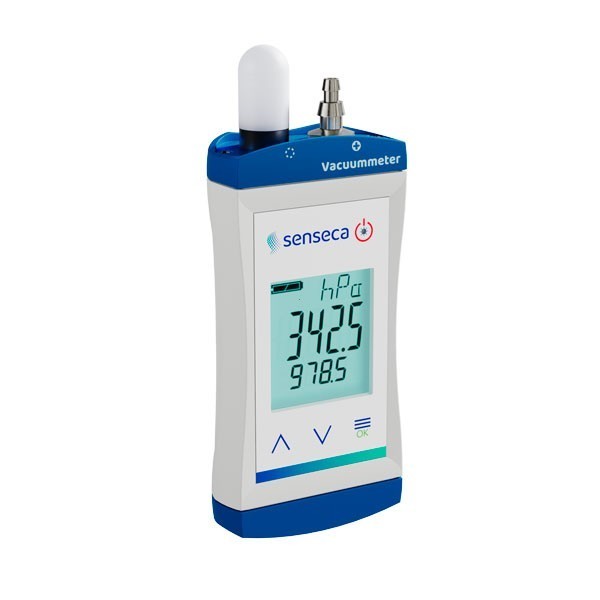

ECO 240‑1‑UT-VAC – Vacuum & Pressure Gauge with Compensation Port

Brand: Senseca

The ECO240 series focuses on core measurement functionality—at its heart is a premium sensor, ensuring top-tier quality without the cost premium.

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Key Benefits

Precision, speed, and reliability in a compact, waterproof casing.

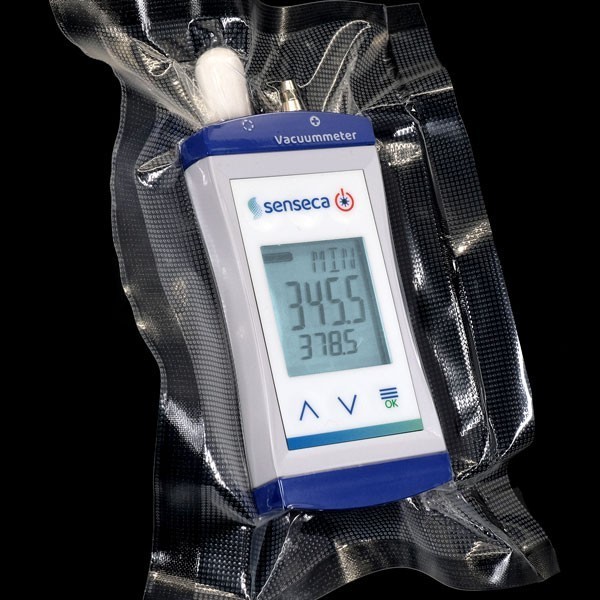

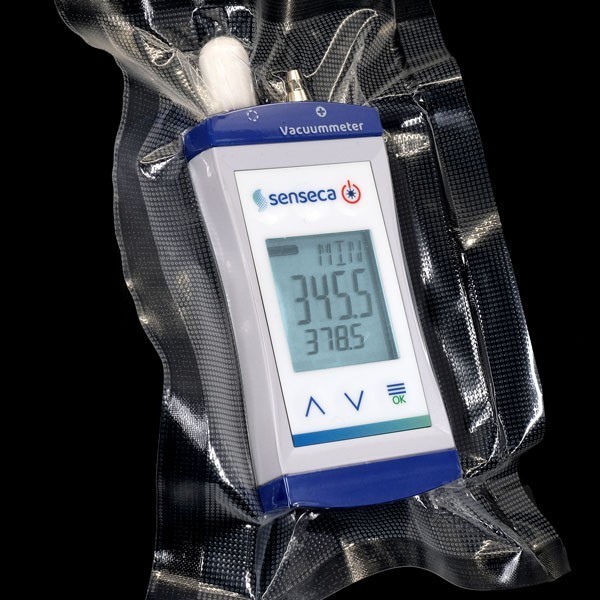

Rapid vacuum readings, perfect for vacuum packaging validation.
Vacuum molding process monitoring with post-unpack minimum value display.
Optional calibration certificates make it an excellent reference instrument for accuracy verification.

Technical Specifications

Specification	Details
Measuring range:	0.0 ... 1700.0 hPa abs
Measurement rate	Slow: 2.5 readings/s · Fast: 25 readings/s
Power supply	2 × AA alkaline batteries (included)
Current consumption	< 1 mA (no backlight), approx. 3 mA (with backlight)
Battery life	≈ 3000 h continuous (no backlight)
Housing material	Shock-resistant ABS with polyester front panel
Measurement range	0.0 … 1700.0 hPa (mbar)

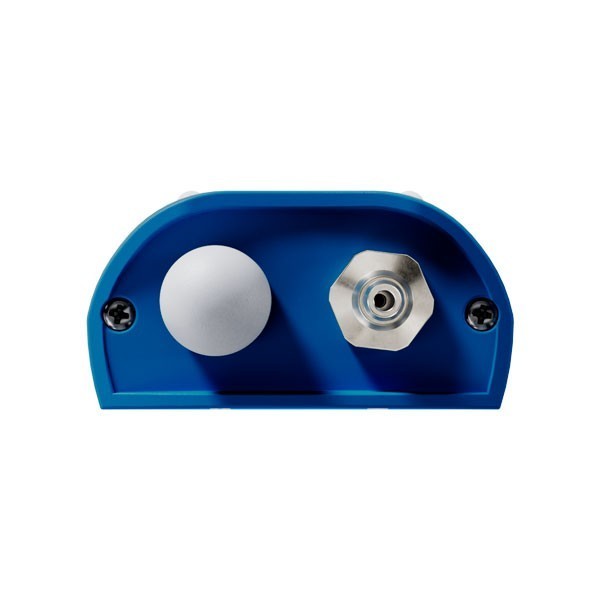

Connections	Single tube port, interchangeable with G1/8-inch port incl. connection for tube 6x1 mm (4 mm inner) or 8x1 mm (6 mm inner)
Operating conditions	-20 … +50 °C (recommended 5 … 30 °C); 0 … 95 % r.h.
Storage temperature	-20 … +70 °C (without batteries)
Display	3-line with battery indicator, backlight, shatterproof screen
Dimensions	108 × 54 × 28 mm (approx. 122 × 54 × 28 mm with connectors)
Additional features	Sea-level correction, NULL/Tare, averaging (2 s / 5 s / 10 s)
Standard functions	Min/Max/Hold, auto‑power‑off (configurable)
Battery indicator	4-stage charge indicator with “BAT LO” warning
Typical accuracy @ 25 °C	2 hPa (5 … 30 °C) · VAC 0–20 hPa: ± 1 hPa (10 … 30 °C)
Max accuracy over range (-20 … 50 °C)	± 1.25 % FSS
Max overload	3000 hPa absolute
Calibration	Zero-point and slope adjustment

Ideal Applications

Quality control for vacuum packaging machines.
Monitoring vacuum molding operations.
Calibration reference for precision instrument validation.
