Why it stands out

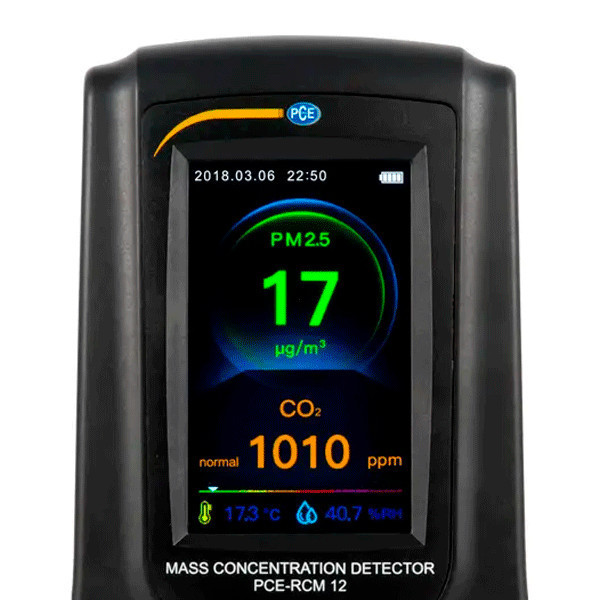

The bright 3" TFT-LCD display alternates the measured values, allowing a quick and intuitive assessment of the ambient conditions.

Thanks to the integrated rechargeable battery, the particle counter can be used for up to 5 hours in stand-alone operation without mains power. For continuous monitoring, the device can be powered via the USB interface. A coloured bar graph makes it easy to interpret the CO₂ concentration, giving the user an instant indication of air quality.

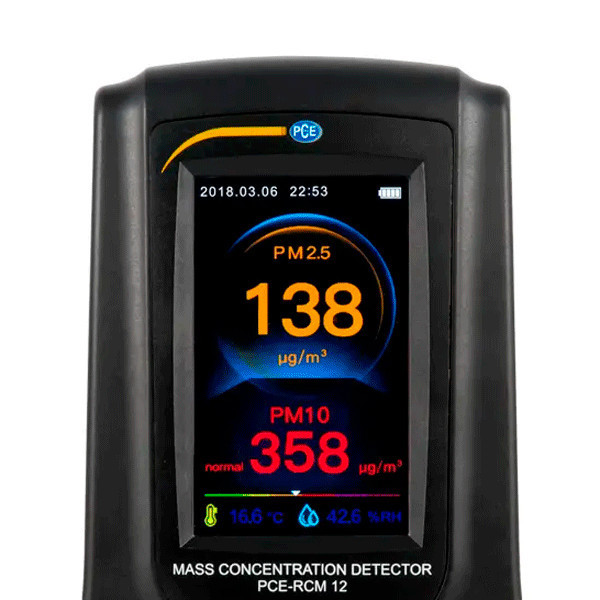

In addition to indicative measurement of harmful formaldehyde, the device distinguishes between particles with a diameter up to 10 µm (PM10) and up to 2.5 µm (PM2.5), helping to identify fine dust loads that may affect health and comfort.

Key benefits and advantages

• Complete indoor air quality monitoring (CO₂, HCHO, PM2.5, PM10, temperature and humidity).
• Wide CO₂ measuring range up to 9999 ppm for detailed monitoring of indoor environments.
• 3" TFT-LCD display with alternating indication of all key measured values.
• Internal memory for up to 5000 measurement groups for logging and later analysis.
• Portable use with up to 5 hours operating time from the 2400 mAh rechargeable battery.
• Colour bar indicator for instant visual evaluation of air quality.
• USB interface for continuous power supply and easy charging.
• Easy and safe operation, suitable for professional users and building managers.

Typical applications

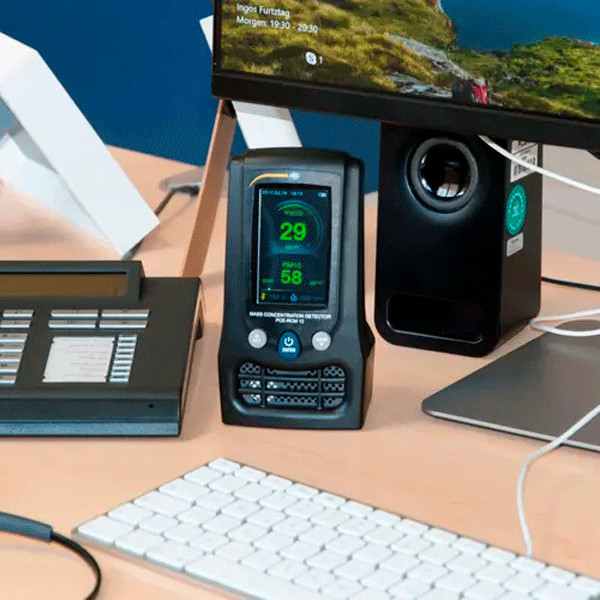

• Monitoring of indoor air quality in offices, schools, nurseries and public buildings.
• Control of living spaces (bedrooms, living rooms) for comfort and health.
• Check of workplaces in small businesses, shops and medical practices.
• Indicative assessment of ventilation and air-conditioning systems (HVAC).
• Monitoring of formaldehyde and fine dust in newly renovated or newly furnished rooms.

Main features

• Measurement of CO₂ and formaldehyde (HCHO).
• Indication of temperature and relative humidity.
• Measurement of fine dust particles PM2.5 and PM10.
• Wide CO₂ range up to 9999 ppm.
• Alternating display of measured values on the screen.
• Memory for up to 5000 measurement groups.
• Date and time indication.
• USB interface for power supply and charging.
• 3" TFT-LCD display (240 x 400 pixels).
• Low-power mode with display activation when noise is detected.
• Easy operation and safe handling.

Technical specifications

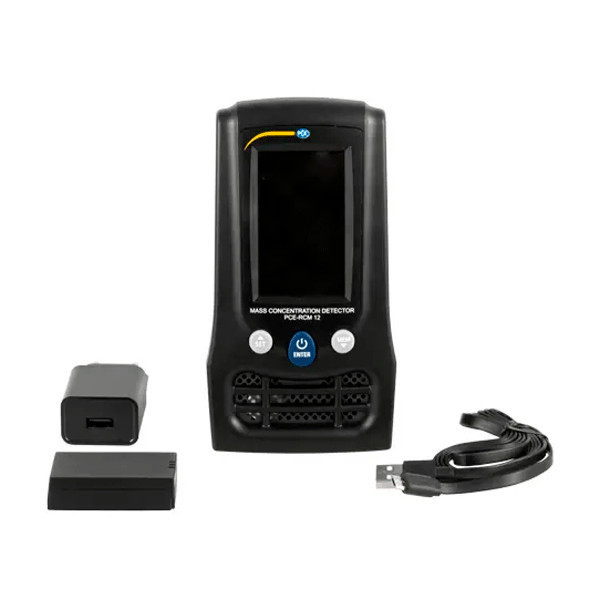

Delivery contents

• 1 x PCE-RCM 12 particle counter
• 1 x USB cable (for charging only)
• 1 x Rechargeable battery
• 1 x Mains power adapter
• 1 x Operating manual
