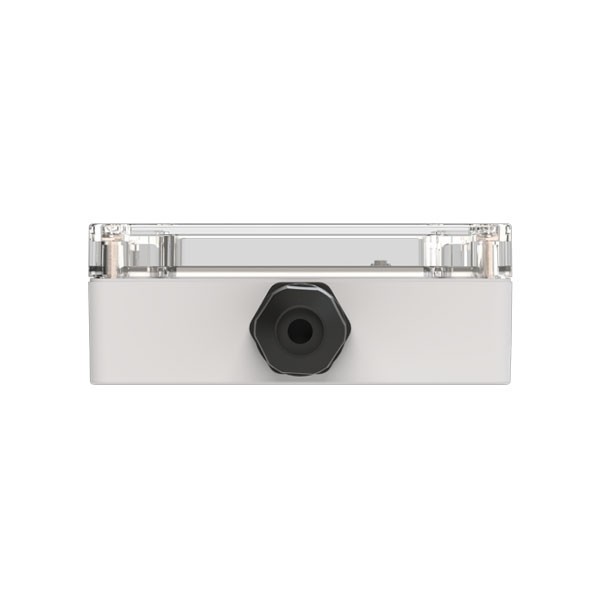

Aranet PRO Plus Wireless Base Station Reciever/ Datalogger TDSBOA03

Aranet Pro Plus have PoE power input for ease of commissioning.

Allows the connection of wireless sensors for temperature, humidity, CO2, CO, NH3, LUX, Infrared, level (ultrasonic), PAR, soil moisture, weighing, radiation, energy meter, 0...10DC, 4... .20mA among other sensors.

Aranet PRO Plus is a perfect solution for monitoring when precision, autonomy and long range are essential. Aranet PRO Plus includes free software integrated into the equipment. The interface is easy to use and allows you to view, analyze and compare data in real time, define alarm limits and export reports.

It collects data from multiple sensors and provides independent local data storage within its free software and is compatible with Aranet Cloud for a complete experience. The user-friendly interface makes it simple to examine, analyse, and compare data in real-time.

Additionally, you can establish alert thresholds and export reports at any time. Software’s responsive design adapts to any device, be it a smartphone, tablet, or laptop.

You can choose between three Aranet PRO Plus versions based on the number of sensors you require: Aranet PRO Plus 12, Aranet PRO Plus 50, and Aranet PRO Plus 100. The line-of-sight range reaches up to 3 km/1.9 mi.

3-in-1
Gateway, data storage and web server

Choice between 3 Aranet PRO licence versions
Select Aranet PRO Plus 12, Aranet PRO Plus 50 or Aranet PRO Plus 100 depending on the number of sensors you intend to connect to the base station. User can also update their license when required at additional cost, only firmware update will be required.

The Aranet system is the solution that ensures a quality standard added to your business area.

SensorHUB software included on Aranet PRO base station
User-friendly interface to view, analyze and export data

• Aranet Pro Base Station (TDSBWPA1.xxx)
  • Aranet PRO receivers are a wireless monitoring solution for temperature, humidity, CO2 and other quantities. There are three versions of Aranet PRO receivers:

    • Aranet PRO 12 (to 12 wireless sensors) Reference: TDSBWPA1.012
    • Aranet PRO 50 (to 50 wireless sensors) Reference: TDSBWPA1.050
    • Aranet PRO 100 (to 100 wireless sensors) Reference: TDSBWPA1.100
  • Alarm Type: Email
  • Internal memory capacity: >10 years with 100 paired sensors and sampling every 10 minutes
  • Export data to other applications excel, csv and other applications
  • Includes backup battery in case of power failure
  • Includes WIFI, Ethernet connection (LAN)
  • Data protection methods: XXTEA, HTTPS, password-protected user accounts
  • User interface languages:  English, French, Spanish, Italian, Portuguese, Nederland, German, Russian, Latvian
  • Integrations MQTT, Modbus TCP/IP, BACnet IP
  • Support for table and wall mounting
  • Storage: Internal memory or (Aranet Cloud option with subscription)
  • Protection class: IP67
  • Receiver sensitivity: -127 dBm
• Other technical data

  • Frequency:
    • Channel 1: 868.10 MHz
    • Channel 2: 868.30 MHz
    • Channel 3: 868.50 MHz
  • Power: 14 dBm
  • Range: 3 km (line of sight)
  • Enclosure material: ABS plastic
  • Data encryption
  • Data viewing in any browser on a local PC or via (Aranet Cloud option with subscription)
  • Compliances: CE, FCC, IC
  • PoE power input
  • Instruction manual
  • Free and embedded software included
  • No annual subscription, just subscription with the Aranet Cloud option
  • Software com design responsivo que se adapta a qualquer smartphone, tablet ou laptop.

Areas of application:

• Health:
  • Clinics
  • Pharmacies
  • Hospitals
  • Laboratories
  • Blood collection
  • Transport of pharmaceuticals
  • Blood transport
  • Veterinary
• Food sector:
  • Canteens
  • Catering
  • Schools
  • Hotels
  • Food industry
  • Bakeries
  • Pastries
  • Fishmongers
  • Restoration
  • Butchers
  • Food transport
• Other sectors
  • Industry
  • Document Archives
  • Libraries
  • Museums
  • Scientific area

See available sensors and receivers from Aranet

Aranet Products

Aranet PRO is suitable for data recording, it includes a function for maximum and minimum values, average values and freely configurable alarm values (upper and lower limits).

Why it's importanto use our system?

Sectors:

Health
Health warehouses and refrigerators containing significant quantities of pharmaceutical products must always be equipped with a maximum and minimum temperature control and registration system and, permanently activated alarm to warn whenever An abnormal temperature change occurs.
The correct preservation of medicinal products is a critical factor in ensuring their quality, effectiveness and safety, and therefore it is essential to implement working procedures that ensure this conservation.

Horticulture
Aranet helps to save costs and reduce food waste by ensuring the best conditions for growing and storing produce. Avoid unwanted losses that can occur when temperature and humidity levels are not compliant with the desirable standards by improving quality control.

Warehouse
Ensure best storage conditions for different types of goods!

Aranet temperature and humidity monitoring solutions allow remote viewing, analysing and comparing of the data ensuring the best quality control and adaptable settings for each client’s needs. Set different alert thresholds for all the Aranet sensors and receive warnings via SMS or E-mail any time of the day.

Catering and Food manufacturers
Maximize profits by saving money with reduced food waste through improving quality control in storage facilities and production rooms.

Centralized data aggregation saves time and money by eliminating potential human error and saving time previously spent on manual data gathering. Optimize costs with the help of Aranet!

HVAC & Building management
Take HVAC systems to the next level with Aranet IoT monitoring solutions! Aranet can be integrated with existing equipment and wireless sensors can be deployed without extra installation expenses. Save costs on heating and air conditioning for places like hospitals, schools and museums, data centers, pharmacies, hotels, restaurants, office buildings, vacant properties.

Aranet provides wireless monitoring solutions for precise temperature, humidity and CO2 measurements. Receive alert notifications via e-mail or SMS when something needs attention.

Note: If you select Accredited Calibration Certificate (IPAC) when purchasing this product, click the Product Customization TAB and fill in the second field (TEXT - Required temperature calibration points.) with the respective required points or simply attach a copy of a calibration certificate.
IP Rating

An IP rating, also known as "International Protection" or "Ingress Protection" rating, is a value assigned to a product that determines its susceptibility to ingress from solids and liquids. The first numeric digit relates to the level of protection against solid objects, and the second numeric digit indicates the level of protection against liquid ingress. Click for a table of IP Rating values.

Table of IP rating values

IP65 - No ingress of dust (6); Protection from water ingress: Low pressure jets of water (5).
