Temperature and Humidity Mini Sensor TDSPT101

Reference: TDSPT101

Condition: New product

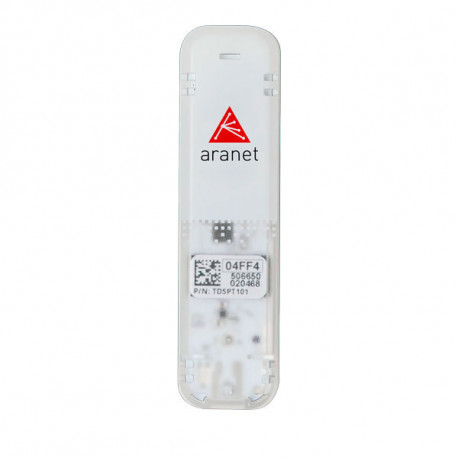

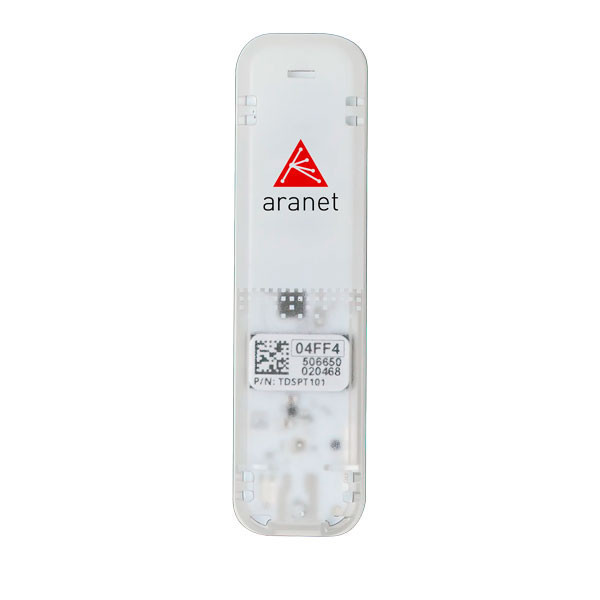

Aranet T/RH Mini Sensor

Product Code: TDSPT101

Compact, wireless sensor delivering accurate temperature and relative humidity readings indoors. Perfect for offices, living areas, and facilities where heavy water/dust protection isn’t required. Works with the Aranet Base Station and Aranet Cloud.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Why choose it

Trusted accuracy: ±0.3 °C and ±2 %RH.
Discreet footprint: 92×24×24 mm, adhesive tape included.
Long battery life: up to 16 years (lithium, 10-min interval).
Scales easily: Aranet Pro, Base Station, and Cloud compatible.
Reliable link: up to 3 km line-of-sight, XXTEA encryption.

Temperature

Temperature
Range	-40–60 °C (-40–140 °F)
Resolution	0.1 °C (0.1 °F)
Accuracy	±0.3 °C (±0.5 °F)
Long-term drift	0.03 °C/yr (0.05 °F/yr)
Time constant (τ)	13 min

Relative Humidity

Relative Humidity
Range	0–100 %RH
Resolution	1 %RH
Accuracy	±2 %RH
Long-term drift	0.5 %RH/yr
Time constant (τ)	1 min

• RH accuracy valid for 0–80 %RH at 23 °C (73 °F). Drift quoted for lab conditions (23 °C, 30–70 %RH); may be higher otherwise.
• Prolonged exposure >80 %RH (condensing) can temporarily increase readings; dry the sensor in low RH to normalize.

General Specifications

General Specifications
Ingress protection	IP42
Operating temperature	-40–60 °C (-40–140 °F)
Dimensions	92×24×24 mm (3.6×0.9×0.9 in)
Weight (incl. battery)	45 g (1.6 oz)
Enclosure material	Polycarbonate
Power supply	1× AA battery
Package includes	1× AA alkaline, double-sided mounting tape

Battery Life

Battery Life (interval → runtime)
1 min	Alkaline: 1.8 years • Lithium: 2.4 years
2 min	Alkaline: 3.2 years • Lithium: 4.6 years
5 min	Alkaline: 6.8 years • Lithium: 10 years
10 min	Alkaline: 10 years • Lithium: 16 years

• Figures are mathematically extrapolated (no guarantee). Tests at 20 °C using Fujitsu Premium LR6G07 (alkaline) and Energizer Ultimate Lithium L91 (lithium).
• Operating range depends on battery chemistry: alkaline -20–50 °C • lithium -40–60 °C.

Radio Parameters

Radio Parameters
Line-of-sight range	Up to 3 km (1.9 mi)
Transmitter power	14 dBm (25 mW)
Data transmission interval	1, 2, 5, or 10 min
Data protection	XXTEA encryption

Performance notes: accuracy valid at purchase in equilibrium. Consider long-term drift. Time constant (τ) is the time to reach 63 % of a new steady state after a step change.
