K Type PTFE Fine Wire Thermocouple TME KA01

Reference: KA01

Condition: New product

Brand: TME

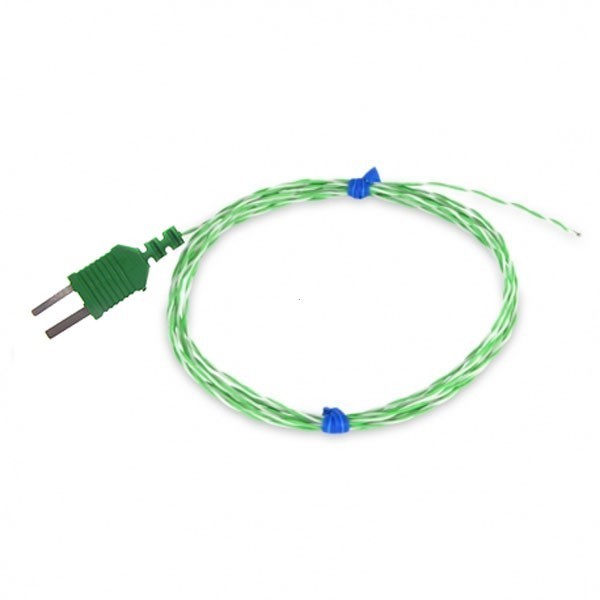

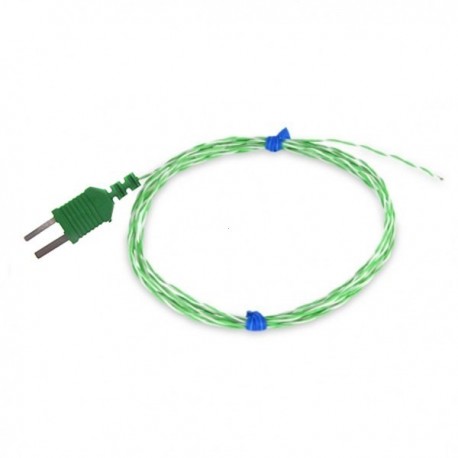

This sensor is constructed using a 1M length PTFE wire constructed as a twisted pair. The wire

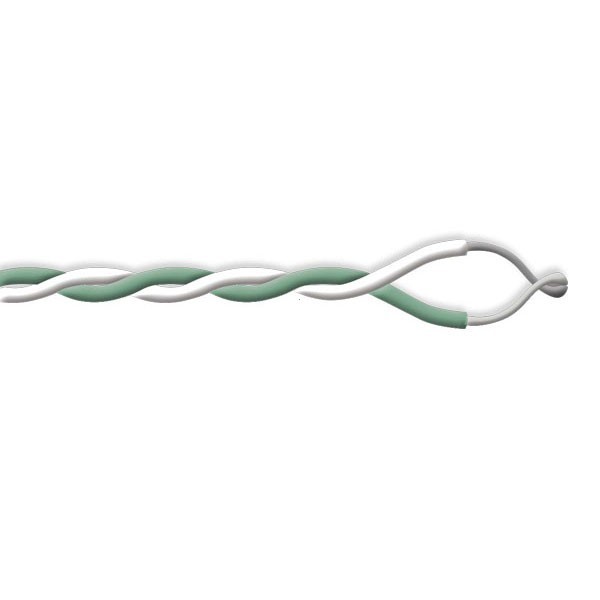

used is Class 1 Type K alloys (NiCr / NiAl). A weld bead is manufactured at one end of the wire
whilst the other end is terminated in a moulded miniature thermocouple plug.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

PTFE Insulation
Used for applications such as air, liquid or surface temperatures, bituminous mixtures, ovens, hot cupboards and similar appliances
Range -100 to 250°C
Maximum probe temperature 250°C.
Dimensions: Ø0,3 x 1000 mm
Response time less than 0.5 of a second
Allow fast response and excellent repeatability
Used for applications such as air, liquid or surface temperatures
Class 1 material
Moulded thermocouple miniature plug

The probe has a rapid response time of less than 0.5 of a second. Temperature range -100 to 250°C. Maximum probe temperature is 250°C.

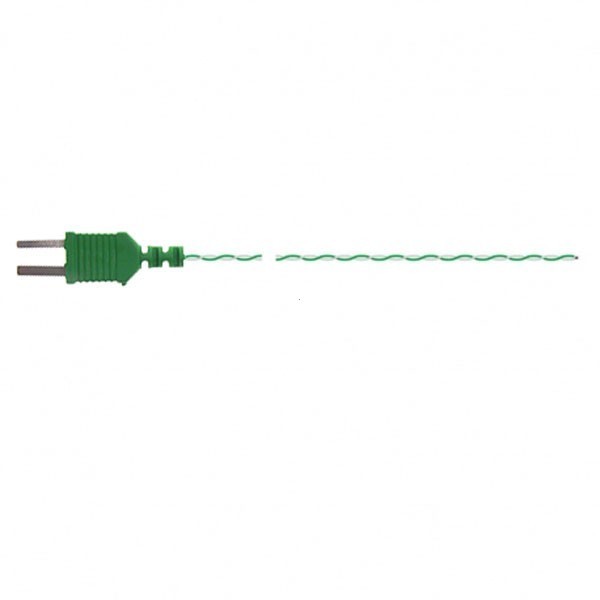

The probe measures Ø0,3 mm x 1000mm it is suitable for attaching to a wide range of thermocouple thermometers.
