High-Precision Temperature, Humidity and Flow Meter

Reference: 5000-0750

Condition: New product

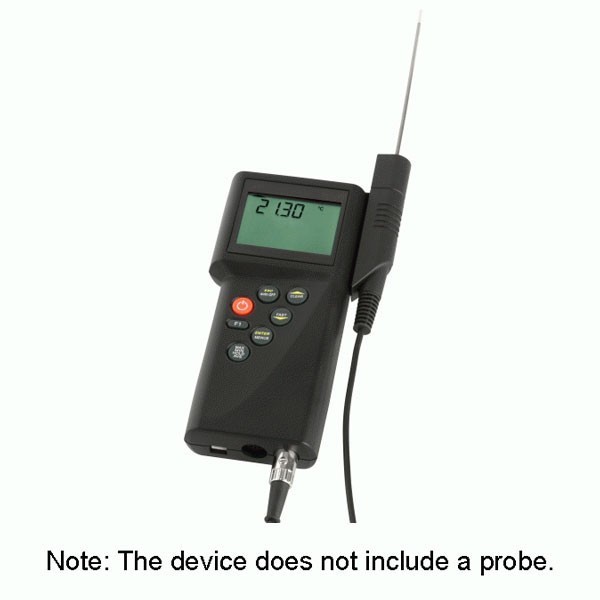

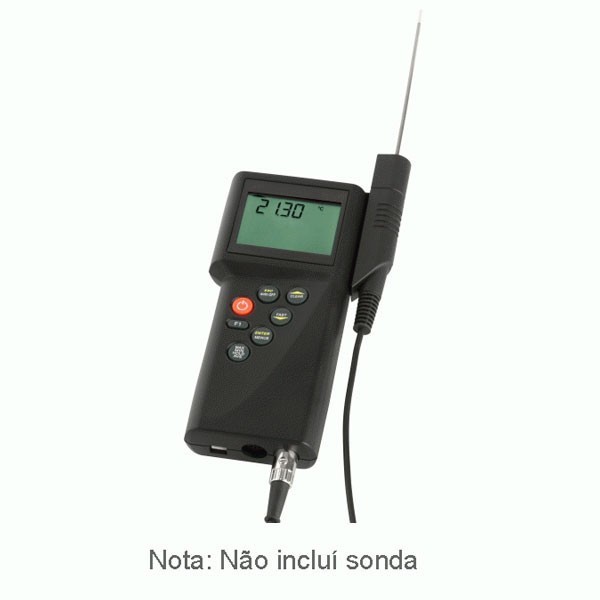

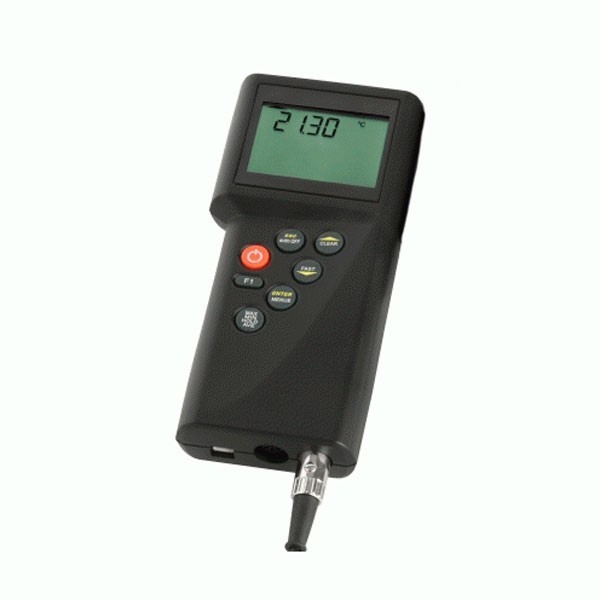

P750 – High-Precision Temperature, Humidity and Flow Meter

1-channel handheld thermometer with exceptional accuracy of ±0.03°C (Pt100). Designed for laboratory use, industrial process control and quality assurance applications.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Key Features

USB interface for PC connectivity
Optional DE-Graph Windows software for graphical and tabular documentation
High measuring accuracy
Built-in calibration function for easy sensor tolerance compensation
1-point, 2-point or 3-point physical calibration options
Freely assignable measurement channels
Records max, min, average, and hold values
One-hand operation via integrated sensor holder
Mains operation available
Simultaneous dual measurement display
Differential temperature readout

Applications & Advantages

The P750 offers exceptional precision of ±0.03°C, making it an excellent reference instrument for quality control labs and validation of secondary measuring devices. Compatible with Pt100 sensors, thermocouples (J, K, L, N, R, S, T), humidity and flow probes.

Technical Specifications

Inputs	1-channel – Pt100, Thermocouples (K, J, L, N, R, S, T), Humidity, Dewpoint, Flow
Measuring Range	Pt100: -200°C to +850°C Thermocouples: -200°C to +1760°C (DIN) Ohm: 0...400 Ω Humidity: 0%...100% rH Flow: 0...40 m/s
Accuracy	Pt100: ±0.03°C (-50°C to +199.99°C); ±0.05°C otherwise Thermocouples R, S: ±1.0°C +0.1% Thermocouples K, J, L, N, T: ±0.2°C (0°C to 200°C), ±0.5°C to 1000°C, ±1.0°C rest of range Humidity: ±1.5% rH Flow: 1% of final value Ohm: ±0.5%
Resolution	0.01°C (-200°C to +200°C), otherwise 0.1°C
Connectors	DIN 8-pin
Operating Temperature	0°C to +40°C
Display	2-line LCD
Housing	Plastic
Dimensions	200 x 93 x 44 mm
Weight	300 g
Power Supply	9 V battery
Battery Life	Approx. 20 h
