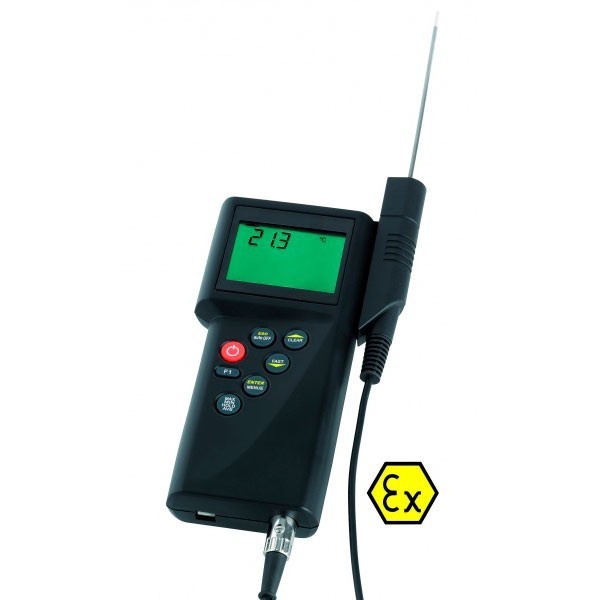

ATEX Thermometer P700-EX Dostmann 5000-X700

The ATEX standard prevents the danger of explosion during measurement with an ATEX thermometer, prevents sparks from jumping, or overheating.

Key Features:

• Range: -200°C to +850°C
• Resolution: 0,1°C
• Accuracy: ±0,1°C from -100°C to +200°C, 0,1% remaining range
• Inputs 1-channel, Pt100
• USB interface
• Optional DE-Graph Windows Software for graphic andtabular documentation
• High measuring accuracy
• Integrated calibration function for simple compensation of sensor tolerances
• Physical 1-point, 2-point or 3-point calibration function
• Measuring channels are freely assignable
• Recording maximum, minimum, hold and average values
• Integrated sensor holder for one hand operation
• Mains operation possible
• Differential temperature display

The P700-EX thermometer with a temperature measurement range between -200°C to +850°C) and an accuracy of ± 0.1°C between -100°C to +200°C and the remaining range 0.1% reading. The P700-EX thermometer with EX classification: EEX ib IIB T4 and TÜV 13 ATEX 117115 X certificate of compliance is intrinsically safe to work indoors or outdoors, where potentially explosive gases may be present. The thermometer is portable, operated with a 9 Volt battery and an autonomy of 20 hours of continuous use.

Note: Does not include temperature probe

Choice of probes
Conveniently located at the bottom of the instrument is the PT100 probe socket that allows a wide range of interchangeable, PT100, probes to be connected to the instrument. The P700-EX is therefore priced excluding probe. For full details of the range of PT100 probes available choose from the available PT100 probes for the P700-EX:

The instrument can be used with the following PT100 probes:

• Insertion PT100 Probe, Reference: 6000-1006;

  Insertion PT100 Probe
