Description

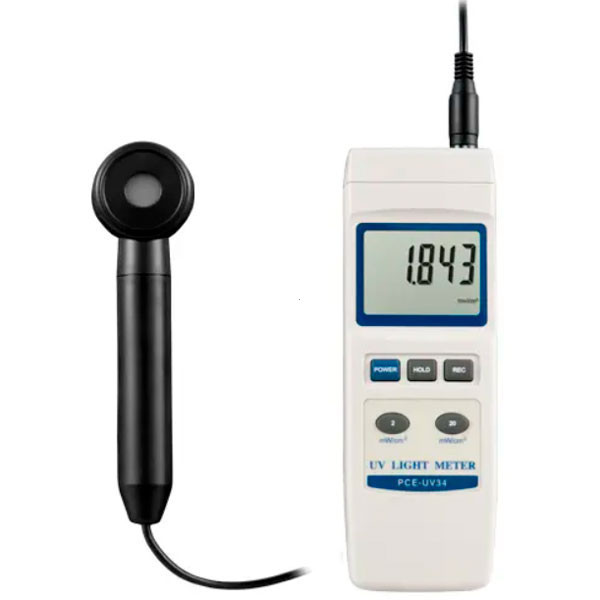

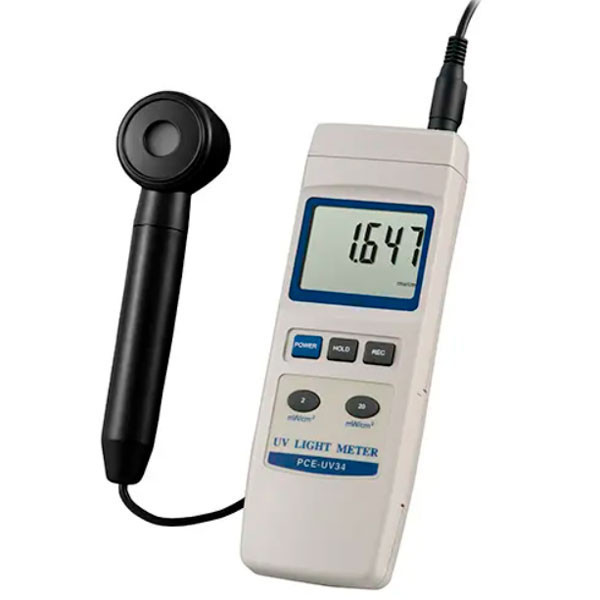

With this ultraviolet light meter, users can measure radiation levels in tanning beds, assess exposure to solar UVA radiation and check elevated UV levels in industrial environments such as welding arcs. Its external sensor with UV correction filter makes the instrument especially flexible and convenient for measurements in difficult or restricted positions.

The PCE-UV34 is also suitable for UV sterilisation, photochemical compensation, virology laboratories and DNA research. The HOLD, MIN and MAX functions, together with the large LCD display and RS-232 interface, make it a practical solution for technical control, testing and documentation.

Key benefits

• Reliable ultraviolet radiation measurement in the 290 ... 390 nm range.
• Two measuring ranges for different UV intensity levels.

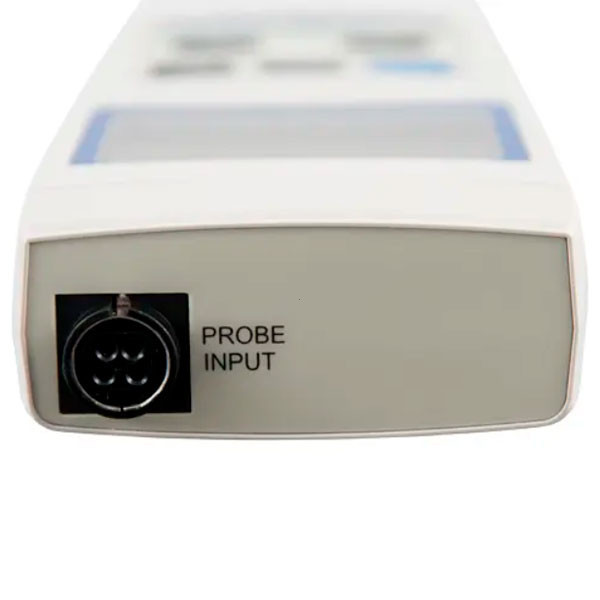

• External sensor for greater flexibility and better sensor positioning.
• Sensor with UV correction filter for more consistent readings.
• Large LCD display for clear result visualization.
• HOLD, MIN and MAX functions for practical value analysis.

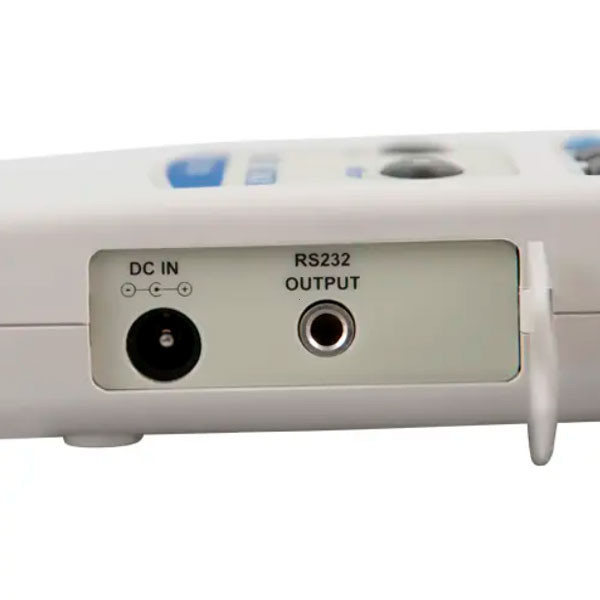

• RS-232 interface for external connection and data handling.
• Automatic power-off after 10 minutes to save energy.

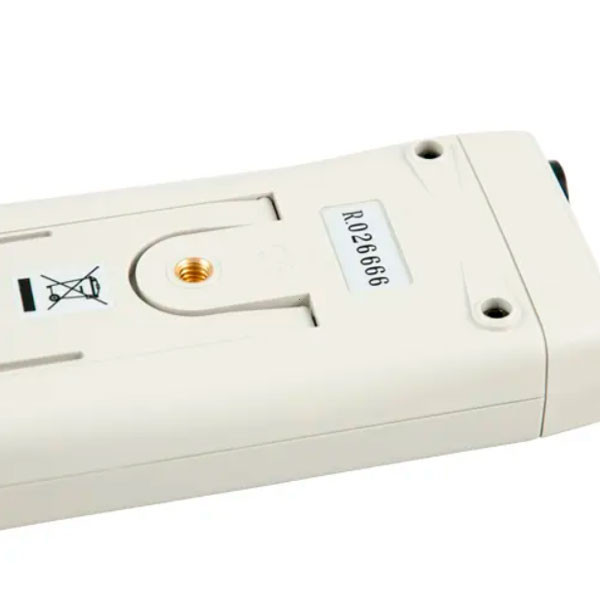

• 1/4" thread for tripod mounting.

Recommended applications

The PCE-UV34 UV meter is designed for applications where ultraviolet radiation measurement is important for safety, validation, process control or research. It is especially suitable for:

• UV monitoring in tanning beds.

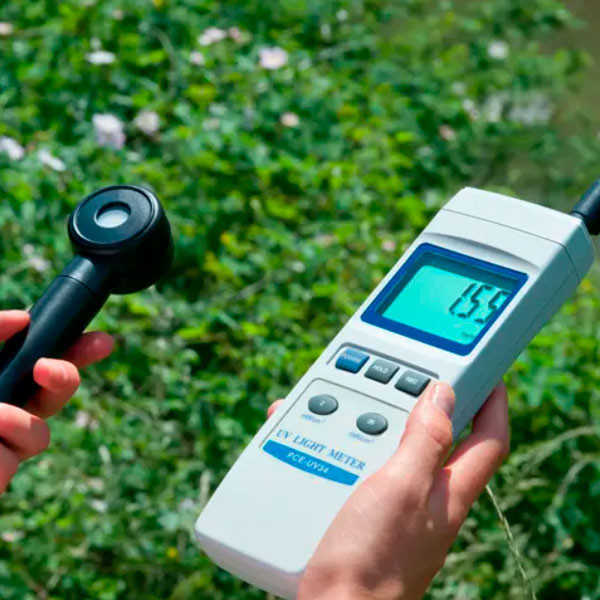

• Assessment of solar UVA exposure.
• Verification of UV levels in welding environments.
• Monitoring of UV sterilisation processes.
• Photochemistry, virology and DNA research.
• Laboratory and technical measurements requiring a remote sensor.

Technical and functional advantages

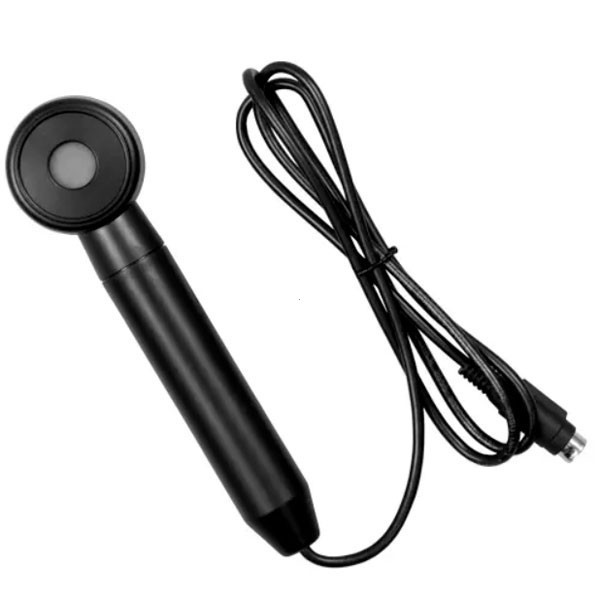

The PCE-UV34 combines precision, portability and ease of use. Its external UV sensor with a 1 metre cable allows practical positioning close to the radiation source while the main unit remains easy to hold and read.

With compact dimensions, 9 V battery power and the option to use an optional power adapter, this meter adapts well to field work, bench testing and long laboratory measurements. The overrange indication on the display also supports safer and more controlled operation.

Technical specifications - PCE-UV34

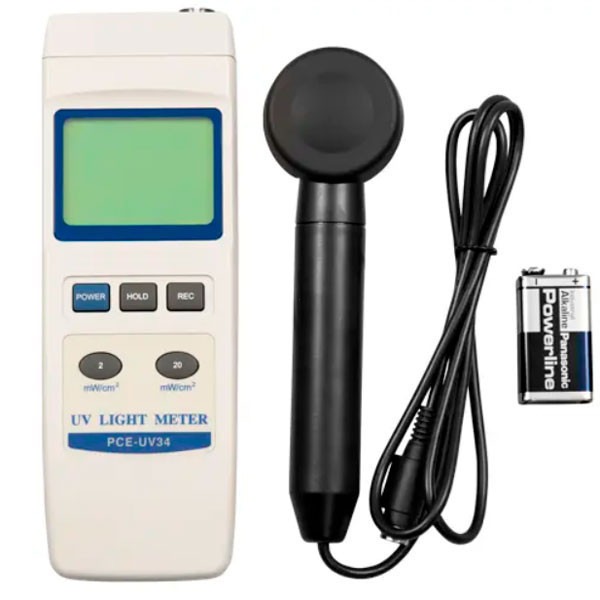

Scope of delivery

The PCE-UV34 is supplied with the essential components required to start ultraviolet radiation measurements quickly and conveniently.

• 1 x PCE-UV34 UV meter for UVA-UVB radiation measurement
• 1 x Combined UV sensor
• 1 x Battery
• 1 x Instruction manual
