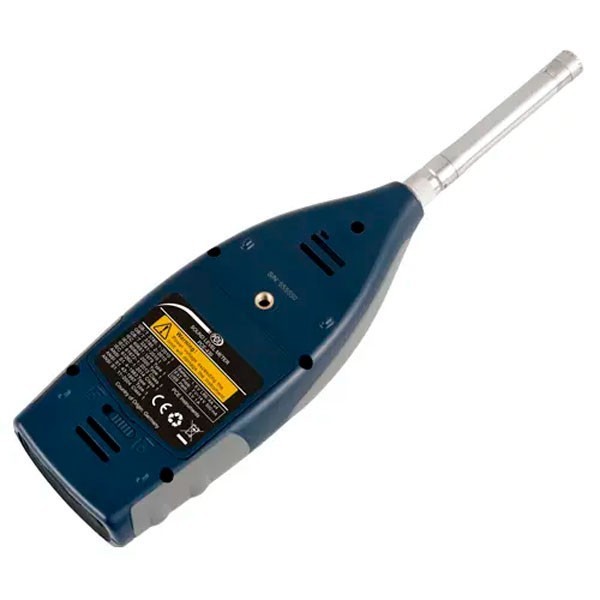

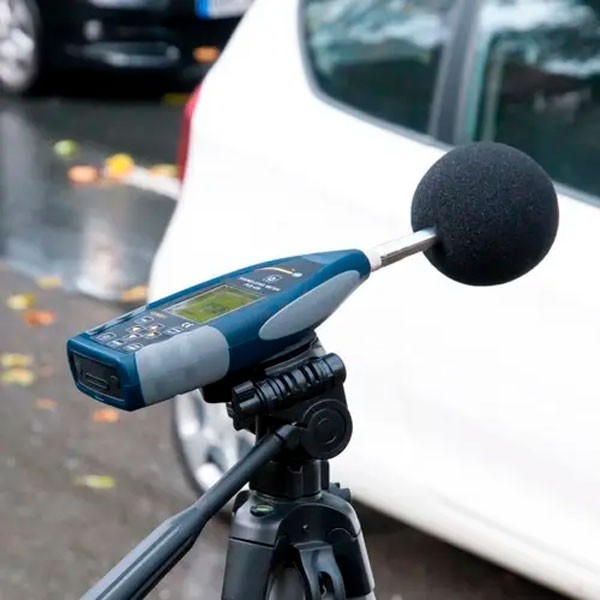

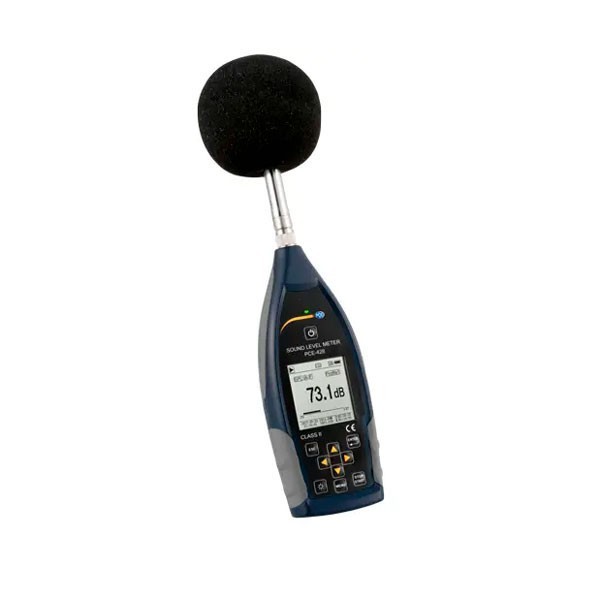

Portable high-accuracy decibel meter Class 2 with 1/1 octave band filter PCE-428

It features a built-in octave band filter and can optionally be equipped with a one-third octave band filter for more detailed frequency analysis.

Equipped with a USB interface and internal data logging, the device supports frequency weightings A, B, C, and Z, as well as time weightings Fast, Slow, Impulse, and Peak. Measurements can be displayed both numerically and graphically for clear interpretation.

It offers a measurement range of 25 to 136 dBA and a frequency response from 20 Hz to 12.5 kHz. Users can configure up to three simultaneous measurement profiles and select specific parameters such as LAeq, LCpeak, LAFmax, LAFmin, and more.

The “Peak Hold” function allows the device to capture and display the peak value during continuous measurement. A 24-bit AD converter and specially optimized electronics ensure extremely low self-noise and high accuracy, with a sampling rate exceeding 48 kHz.

Key Features

✅ Octave band filter (optional: one-third octave band)
✅ Class 2 precision
✅ Frequency weightings: A, B, C, Z
✅ Time weightings: Fast, Slow, Impulse, Peak
✅ Integrated statistical functions
✅ Graphical and numerical data display
✅ Configurable with up to 3 measurement profiles
✅ Low intrinsic noise
✅ ICCP microphone with 40 mV/Pa sensitivity
✅ Adjustable sound level alarm

Technical Specifications

• Measurement Range: 25 ... 136 dB(A)
• Accuracy: Class 2
• Frequency Range: 20 Hz ... 12.5 kHz
• Standards:
  • GB/T3785.1-2010 / GB/T3785.2-2010
  • IEC 60651:1979 / IEC 60804:2000 / IEC 61672-1:2013
  • ANSI S1.4-1983 / ANSI S1.43-1997
• Frequency Analysis:
  • Octave band filter: 20 Hz ... 8 kHz
  • One-third octave band filter: 20 Hz ... 12.5 kHz (optional 1/3 octave band filter upgrade)
• Microphone:
  • Type: 1/2” Class 2
  • Sensitivity: 40 mV/Pa
  • Connection: TNC
  • Power Supply: ICCP standard
• Integration Time: 1 s ... 24 h (adjustable)
• Measurement Functions: LXY(SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN
  • X = Frequency weighting: A, B, C, Z
  • Y = Time weighting: F (Fast), S (Slow), I (Impulse)
  • N = Statistical value: 1 % ... 99 %
• Data Logging: 24-hour automatic measurement with internal recording
• Self-Noise Levels:
  • Microphone: 20 dB(A), 26 dB(C), 31 dB(Z)
  • Electronics: 14 dB(A), 19 dB(C), 24 dB(Z)
• AD Converter: 24-bit
• Sampling Rate:
  • Standard: 48 kHz
  • LN Mode: 20 ms

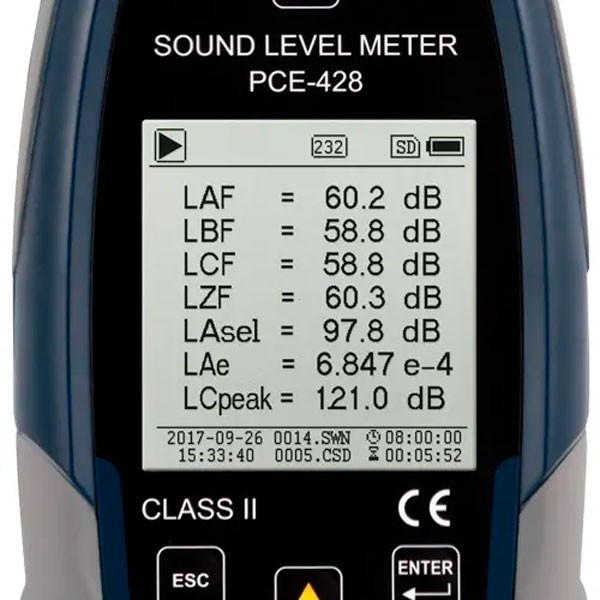

• Display Options: Numerical, bar graph, continuous graph
• Display: Backlit LCD, 160 x 160 pixels
• Memory: 4 GB microSD card

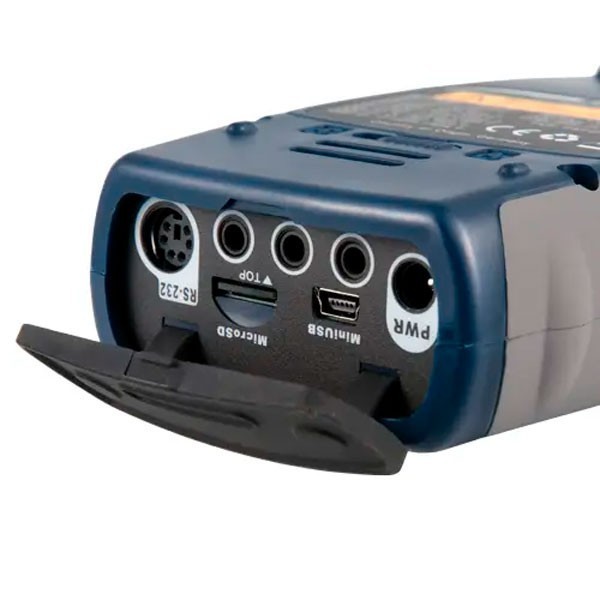

• Interfaces:
  • USB (for data transfer or external memory access)
  • RS-232
• Voltage Output:
  • AC: 5 V RMS
  • DC: 10 mV/dB
• Power Supply:
  • 4 x 1.5 V AA batteries – minimum 10 hours runtime
  • External power supply: 12 V / 1 A or USB 5 V / 1 A
• Dimensions: 70 x 300 x 36 mm (W x H x D)
• Weight: Approx. 620 g (including batteries)

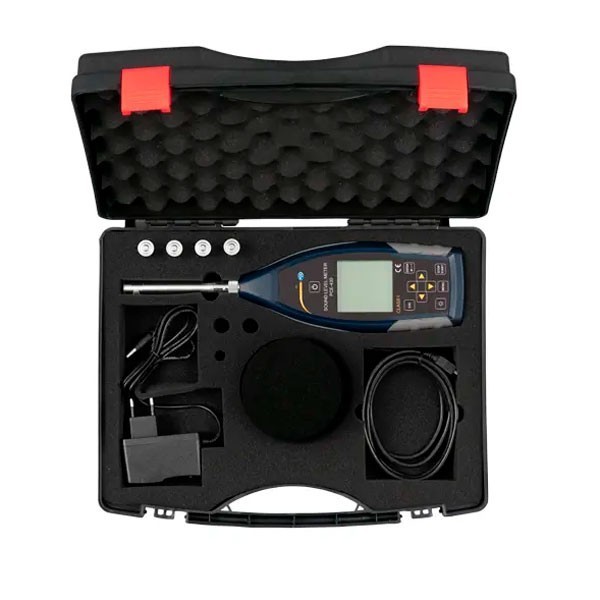

Delivery Contents

✅1 x PCE-428 Sound Level Meter
✅1 x 1/2" Microphone
✅ 1 x Windscreen
✅ 1 x USB Cable
✅ 1 x Software
✅ 1 x Power Adapter
✅ 1 x Carrying Case
✅ 1 x User Manual
