Sound Level Meter with Data Logger

Reference: 5020-0323

Condition: New product

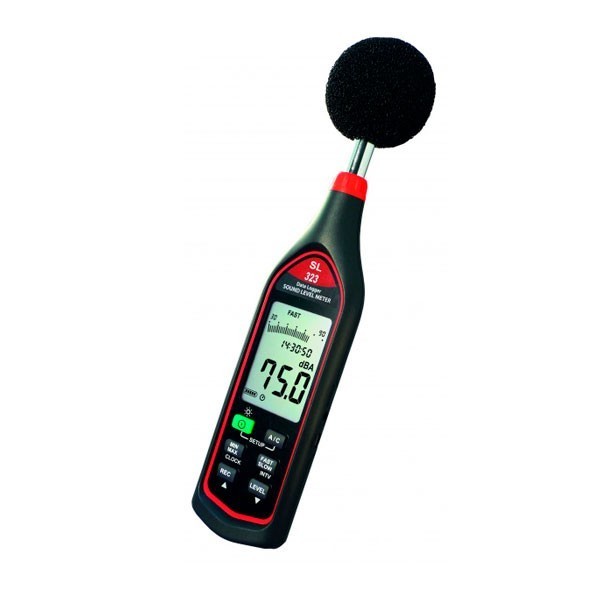

SL323 Sound Level Meter with Data Logger – Professional Noise Monitoring

The SL323 Sound Level Meter with built-in data logger is the ideal solution for accurate and efficient noise measurement in workplaces, offices, and industrial environments.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Key Features & Benefits

With a storage capacity of 64,000 readings and real-time output, it's perfect for professionals who need to monitor, record, and analyze sound levels with precision.

Ideal for noise pollution assessment in workspaces
Data logger with included Windows software
Wide measurement range: 30 – 130 dB
Fast/Slow time weighting and A/C frequency weighting
USB interface and analog output for live data analysis
Tripod mount – perfect for stationary monitoring
Backlit LCD for easy reading in all environments

Applications

Perfect for office noise assessments, environmental studies, occupational health & safety inspections, industrial noise monitoring, and more.

Technical Specifications

Compliance	IEC 61672-1 Class 2, ANSI S1.4 Type 2
Frequency Range	20Hz ~ 8KHz
Measuring Range	30 ~ 130 dB
Frequency Weighting	A / C
Microphone	1/2” Electret Condenser Microphone
Data Logging Capacity	64,000 records
AC Output	1 Vrms at full scale
DC Output	10 mV / dB
Display	4-digit LCD + 30-segment analog bargraph
Resolution	0.1 dB (digital), 2 dB (bargraph)
Time Weighting	FAST / SLOW
Accuracy	±1.4 dB @ 94 dB, 1KHz
Dynamic Range	60 dB
Power Supply	4x AAA or 5V DC (via USB)
Battery Life	Approx. 24 hours (alkaline)
Operating Temperature	0 to 40°C (32 to 104°F)
Operating Humidity	10 to 90% RH
Dimensions	264 × 63 × 29 mm
Included Accessories	Carrying case, Windows software, USB cable, wind shield, screwdriver
