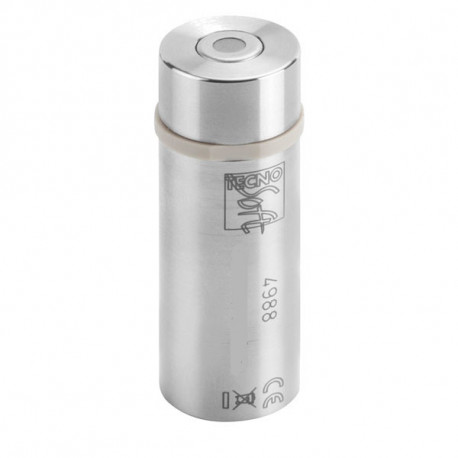

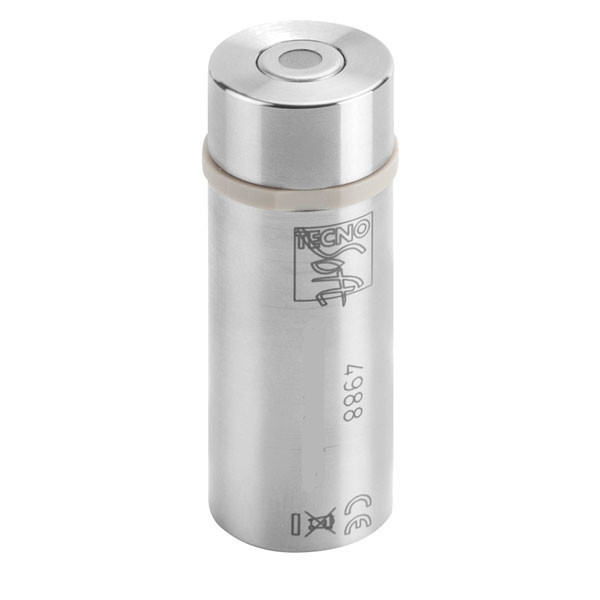

High Temperature Temperature & Humidity Data Logger Up to 125 °C HTemp 125L 5005-0842

Reference: 5005-0842

Condition: New product

The HTemp 125L is a professional temperature and humidity data logger built for reliable monitoring in dry processes and harsh environments. With a wide measuring range from -40 °C to +125 °C, it supports quality control, process validation, and traceability, featuring food-grade AISI316L stainless steel construction and 10,112 readings memory capacity.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Key benefits

Up to 125 °C: ideal for high-temperature dry-process monitoring and extreme conditions.
High accuracy: temperature up to ±0.2 °C (0 to 60 °C) and humidity up to ±1.8% RH (10% to 80% RH).
Sampling from 1 second: capture fast changes with fine time resolution.
User-replaceable battery: simple maintenance and reduced downtime.
Effortless reporting: clear graphics and quick data export to Excel (via software).
Optional compliance: validated CFR 21 Part 11 software option for regulated environments.

Typical applications

Designed for continuous monitoring and documentation where stability and traceability matter most:

Drying process monitoring (e.g., pasta, powders, grains).
Warehouses and storehouses for grains and raw materials.
Extreme environments, thermal cycles, and validation studies.

Connectivity & software

Managed via Windows software and a USB interface (DiskInterface HS, Universal Multibay). The logger features a user-replaceable battery and includes a reference traceable certificate across multiple points to support professional metrology and audits.

Technical Specifications – HTemp 125L (Ref. 5005-0842)
Dimensions	46 (h) × 17 Ø mm – 18 Ø (mm) PEEK ring
Weight	36 g
Materials	Stainless steel AISI316L, PEEK, FKM (o-ring)
Temperature range	-40 °C to +125 °C
Standard calibration points (temperature)	23/50 °C
Extra calibration points (temperature)	Within -40 °C to +125 °C range
Temperature resolution	0.015 °C
Temperature accuracy	±0.2 °C (0 °C to +60 °C) / ±1.3 °C (-20 °C to +80 °C) / ±2.3 °C (-40 °C to +125 °C) — derates linearly
Humidity range	0% to 100% RH (not condensing)
Standard calibration points (humidity)	30/50/70% @ 32 °C ± 10 °C
Extra calibration points (humidity)	Within 10% to 90% RH range
Humidity resolution	0.02%
Humidity accuracy	±1.8% RH (10% to 80%) / ±4% RH (80% to 90%) @ 23 °C ± 10 °C
Humidity drift	1% to 2% / year (depends on use conditions)
Memory (acquisitions)	10,112
Battery life	+8,000,000 acquisitions at 1-second step continuously (calculated @25 °C; may be shorter at low temperatures)
Acquisition step	From 1 second upward, in 1-second steps
Protection degree	IP50
Software & Mobile App	TS Manager 3, HumiPressureDisk, TS Manager
Accessories	DiskInterface HS, Universal Multibay

Need audit-ready records? HTemp 125L supports professional workflows with straightforward exports, advanced software options, and rugged materials for industrial and food environments.
