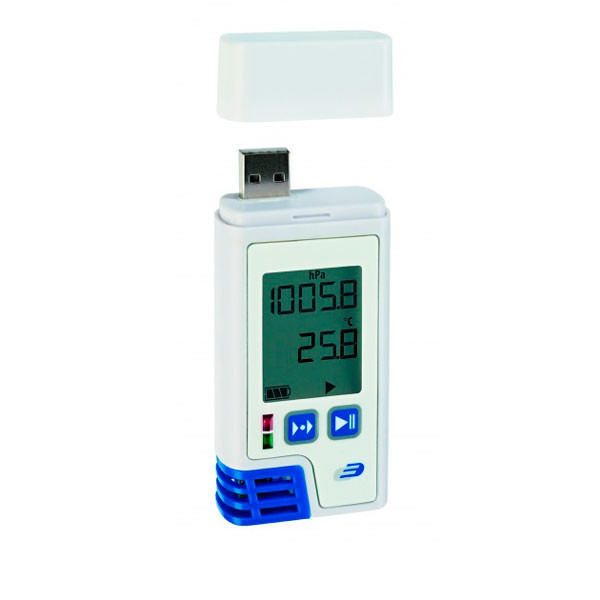

Data Logger with Display for Temperature, Humidity, Dew Point and Pressure

Reference: 5005-0220

Condition: New product

LOG220 PDF – Data Logger with Display for Temperature, Humidity, Dew Point and Pressure.

Accurate, Reliable Monitoring for Sensitive Environments.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

The LOG220 PDF is a professional data logger designed for precise monitoring of temperature, humidity, dew point and pressure.

With an integrated motion sensor, USB interface, and automatic PDF report generation, this logger is ideal for laboratories, healthcare, logistics, and industry, providing flexibility and ease of use with no extra software required.

Automatic PDF reporting – No drivers or software needed
Large 60,000 reading memory – For each parameter: temperature, humidity, and pressure
Integrated motion sensor – Records shock events
Battery life up to 4 years – Minimal maintenance
Adjustable recording interval – From 10 seconds up to 24 hours via free Log Connect software
Easy installation – Wall mount included
Free software

Key Applications

Laboratories and controlled environments
Pharmaceutical and medical storage & transport
Food and pharmaceutical industry
Environmental monitoring in buildings and warehouses

LOG220 PDF Advantages

Automatic PDF reporting compatible with any PC
Display can be disabled for maximum battery life
Status and alarm LEDs for clear notifications
Event marking and resettable Max/Min values
Reliable and secure data logging without mandatory software

LOG220 PDF Technical Data
Temperature Range	-40...+70°C
Temperature Resolution	0.1°C
Temperature Accuracy	±0.5°C (0...60°C), ±1°C (other range)
Humidity Range	0...100% rH
Humidity Resolution	0.1% rH
Humidity Accuracy	±3% rH (40..60%), ±3.5% (20...40% and 60...80%), ±5% (other range)
Pressure Range	300...1100 hPa
Pressure Resolution	0.1 hPa
Pressure Accuracy	±1 hPa (900...1100 hPa), 0.5% of end value (other range)
Memory	60,000 readings per parameter
Power Supply	1 x 1/2AA 3.6V
Battery Life	Approx. 4 years (interval > 15 min)
Dimensions	91.5 x 42 x 20 mm
Weight	70 g
