LOG 20 – Temperature and Humidity Data Logger

Reference:

Condition: New product

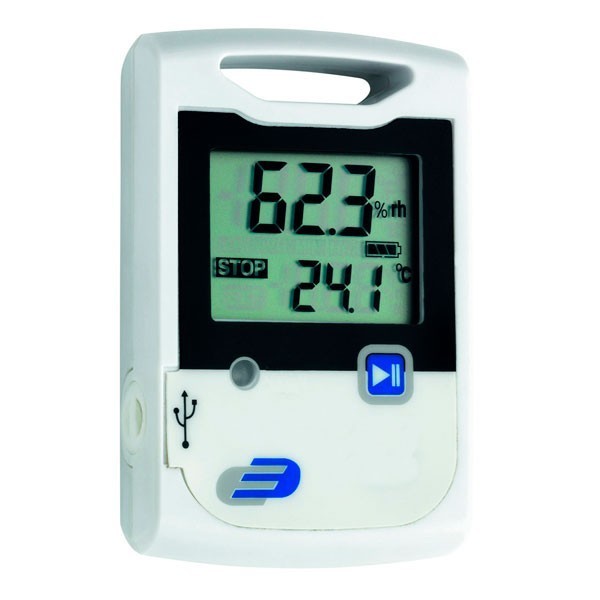

LOG 20 – Temperature and Humidity Data Logger for Transport and Storage

The LOG 20 is a high-precision temperature and humidity data logger, designed for professional applications in transport and storage environments. It provides accurate monitoring, extended memory capacity, and user-friendly operation, making it ideal for logistics, pharmaceutical, food, and laboratory sectors.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Main Benefits

Large 2-line LCD display showing real-time values and MAX/MIN/AVG readings
Battery status indicator for continuous monitoring
Easy-to-use LOG-Graph software for Windows (Not included)
Optical HI/LO alarm for threshold breaches
Memory for up to 20,000 readings across 3 variables
Customizable measurement interval: 30 seconds to 24 hours
Battery easily replaceable by the user
High accuracy: ±0.5°C / ±3% RH (40–60%), higher deviation outside this range
With ISO certificate; reference points: 23°C, 50% rH
Made in Germany

Recommended Applications

The LOG 20 is the perfect solution for:

Cold chain control in food transport and logistics
Environmental monitoring in warehouses and laboratories
Transport and storage of pharmaceuticals and biological materials
Compliance with HACCP and other regulatory standards

Technical Specifications

Feature	Details
Reference	50005-0002
Display	2-line LCD with real-time and historical data
Measurement Principle	NTC
Temperature Range	-30°C to +60°C
Humidity Range	0% to 100% RH
Temperature Accuracy	±0.5°C (-20°C to +50°C), ±0.7°C outside this range
Humidity Accuracy	±3% RH (40% to 60%), greater deviation beyond this range
Memory Capacity	2 x 20,000 readings
Customizable measurement interval:	30 seconds to 24 hours
Interface	USB
Power Supply	1 x CR2032 battery
Battery Life	Over 1 year (with interval > 4 minutes)
Dimensions	88 x 55 x 20 mm
Weight	95 g
With ISO certificate:	Reference points: 23°C, 50% rH

Why Choose the LOG 20?

The LOG 20 offers a reliable and cost-effective solution for precise environmental monitoring in critical processes. Its USB interface and dedicated software simplify data analysis and ensure full traceability and regulatory compliance.

Invest in quality control and operational safety with the LOG 20 Data Logger.
