Noise Dosimeter PCE-MND 10
PCE-MND 10
New product
The PCE-MND 10 noise dosimeter has been specifically designed for the accurate measurement of occupational noise exposure and fully complies with the IEC 61252:2002 standard. It is an ideal solution for occupational health and safety applications, ensuring reliable and traceable noise monitoring in workplace environments.
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Product Description
With a wide measurement range from 70 to 140 dB and selectable frequency weightings A, C and Z, the PCE-MND 10 is suitable for a broad variety of industrial and professional noise assessment scenarios, including continuous and impulsive noise conditions.
The time weighting can be set to Fast, Slow or Impulse, providing maximum flexibility for acoustic analysis. The integrated 470 mAh rechargeable battery delivers an operating time of more than 15 hours, making the device perfectly suited for full working shifts.

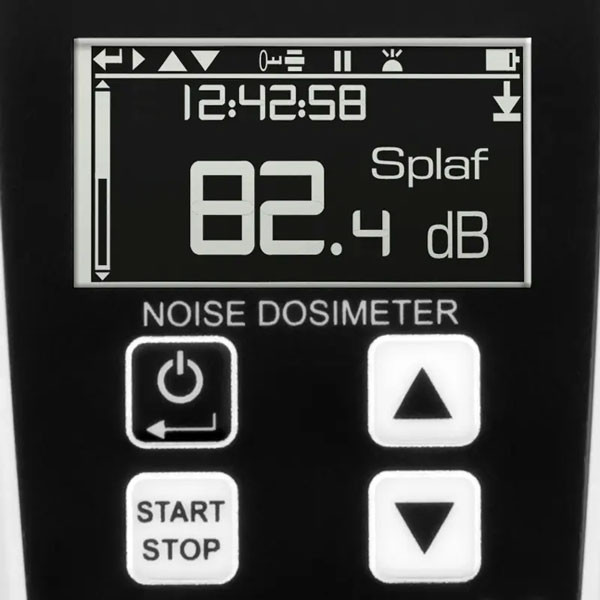

A key advantage of this noise dosimeter is the ability to configure up to three virtual dosimeters. This allows the simultaneous recording of different measurement standards. The LCD display can show up to 14 configurable measurement windows, enabling clear and efficient data visualization.

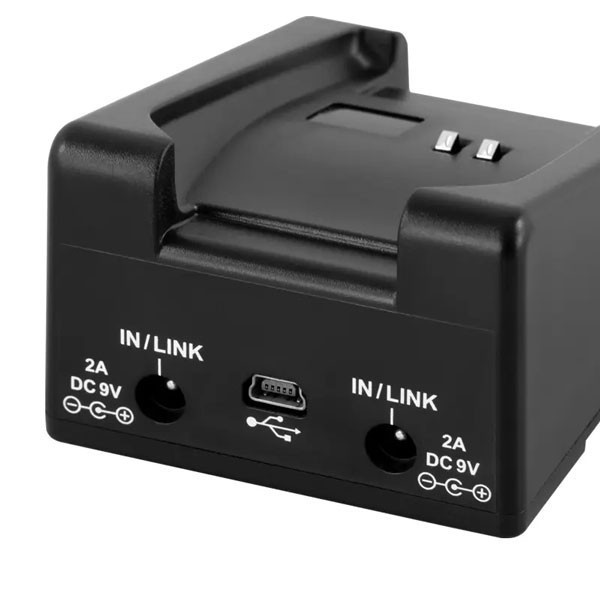

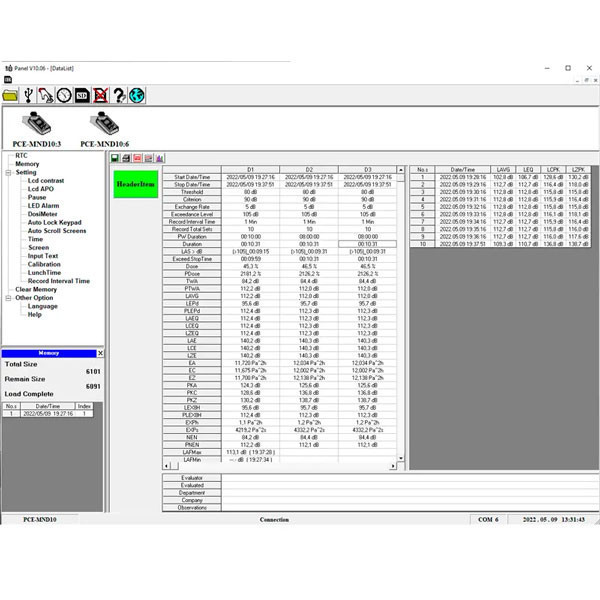

Data transfer from the noise dosimeter to a computer is carried out directly via the USB charging station. The included software allows detailed data analysis as well as full parameter configuration of the device. In addition, multiple charging stations can be interconnected, allowing up to four noise dosimeters to be charged simultaneously using a single power supply.

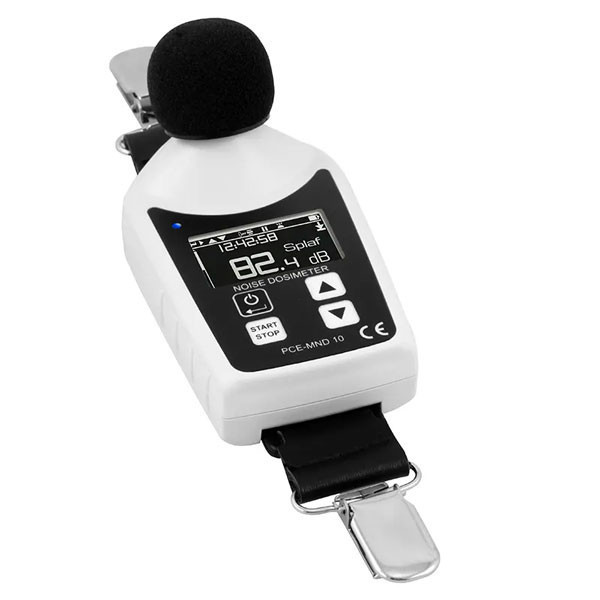

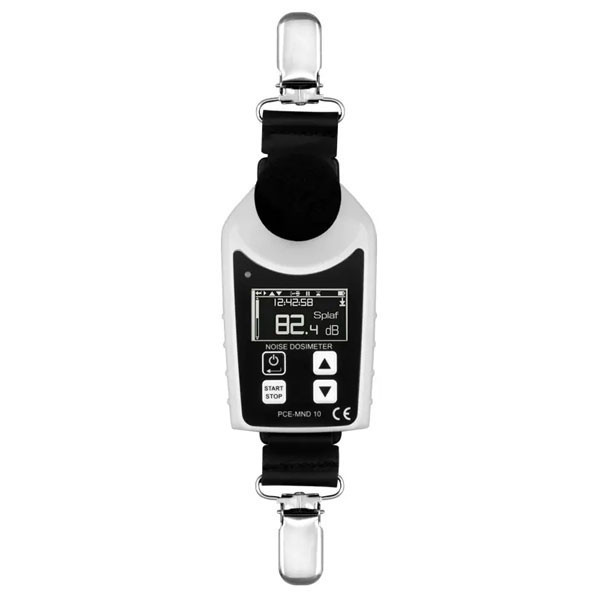

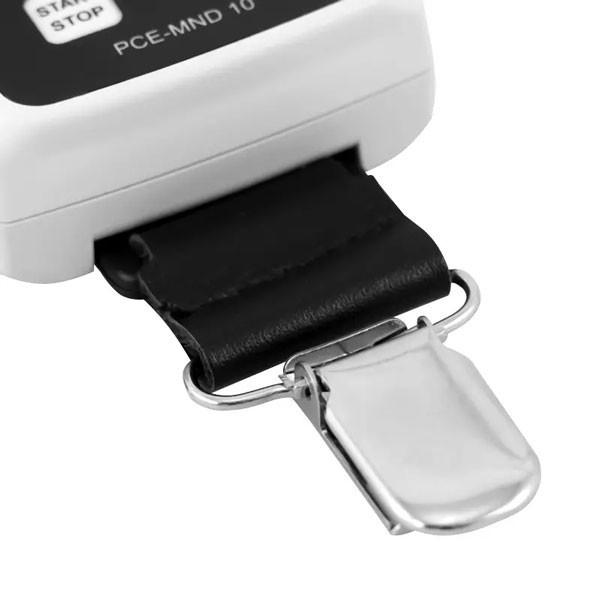

For optimal and secure positioning, the noise dosimeter is supplied with two alligator clips, allowing it to be easily attached to the worker’s clothing. For accurate measurements, the recommended distance between the ear and the dosimeter is 10 to 15 cm. An ISO calibration certificate is available as an option.
Main Features
- Frequency weighting A, C and Z
- Rechargeable battery with operating time >15 hours
- Software for parameter configuration and data analysis
- Measurement range from 70 to 140 dB
- Complies with IEC 61252:2002 and ANSI S1.25-1991
- Optional ISO calibration certificate
Technical Specifications
| Parameter | Description |
|---|---|
| Measurement range | 70 … 140 dB (A, C) / 90 … 140 dB (Z) |
| Peak range | 103 … 143 dB PEAK |
| Resolution | 0.1 dB |
| Accuracy | Class 2 |
| Frequency range | 31.5 Hz … 8 kHz |
| Time weighting | Fast / Slow / Impulse |
| Memory | 30 measurements / 6101 values |
| Display | 128 x 64 pixel LCD |
| Power supply | Li-Po battery 3.7 V / 470 mAh |
| Operating time | >15 hours |
| Dimensions | 84 x 49 x 55 mm |
| Weight | 77 g |

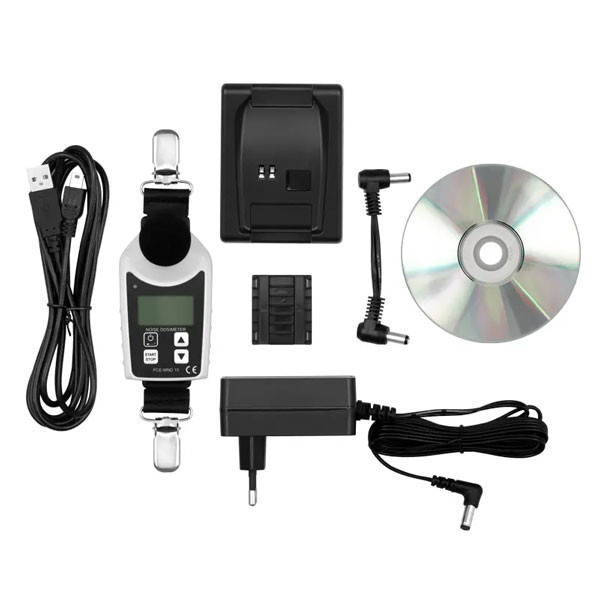

Scope of Delivery
- 1 x PCE-MND 10 noise dosimeter
- 1 x USB cable
- 1 x Charging station
- 1 x Power adapter
- 1 x Charger linking plate and cable
- 2 x Alligator clips
- 1 x Software CD

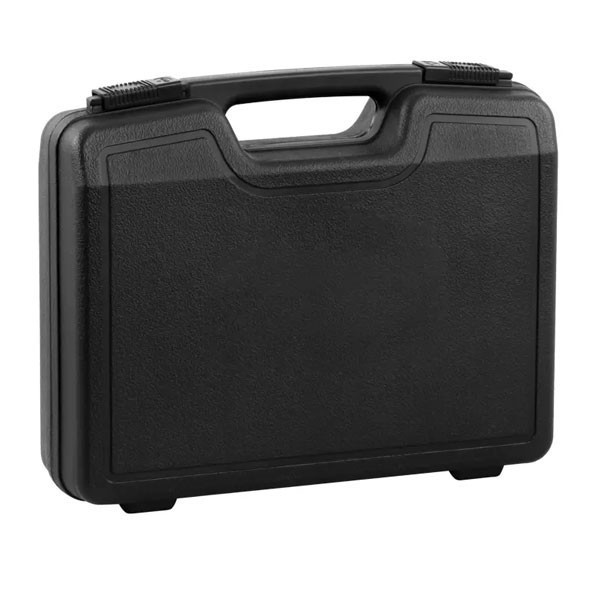

- 1 x Carrying case
- 1 x Instruction manual
Should you wish to proceed, you may complete the email by selecting “Request a Quote” and providing your contact details. Our team will subsequently contact you. For the preparation of the quotation, we kindly ask that you indicate the reference of the desired product as well as the company’s tax identification number
