Accuracy, Durability, and Simplicity

With advanced features like real-time data logging, SD card storage in Excel format, and an RS-232 interface for live data transmission, this device delivers excellent performance with an unbeatable price-performance ratio.

Main Benefits

• Accurate and stable measurements thanks to 2 or 3-point calibration and automatic temperature compensation.
• Includes all necessary probes and calibration solutions.
• Intuitive interface with large, easy-to-read LCD screen.
• Convenient Excel-format data storage – no additional software required.
• Durable and portable with sturdy housing and carry case.

Recommended Applications

• Water quality analysis in treatment facilities.
• Environmental monitoring in rivers, lakes, and groundwater.
• Laboratory testing and industrial quality control.
• Use in aquaculture, agriculture, and fish farming.

Highlighted Technical Features

• Measures pH, Redox (optional), conductivity, salinity, oxygen, and temperature.
• SD card (1–16 GB) for data storage.

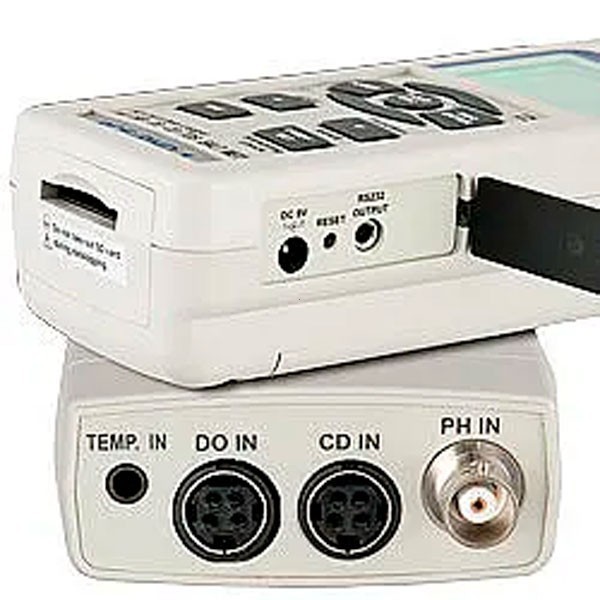

• RS-232 interface for PC connection.
• Custom calibration and BNC connection for pH electrode.
• Compatible with Redox electrode (optional).

Technical Specifications

Other Technical Data

Additional Technical Details

• Sampling rate: 1 second to 9 hours
• Display: Large LCD
• Memory: SD card up to 16 GB (2 GB included)
• Interface: RS-232
• Power supply: 6 x AA batteries (1.5 V) or optional AC adapter
• Dimensions: 177 x 68 x 45 mm
• Weight: 490 g
• Operating environment: 0 - 50 ºC / < 85% RH

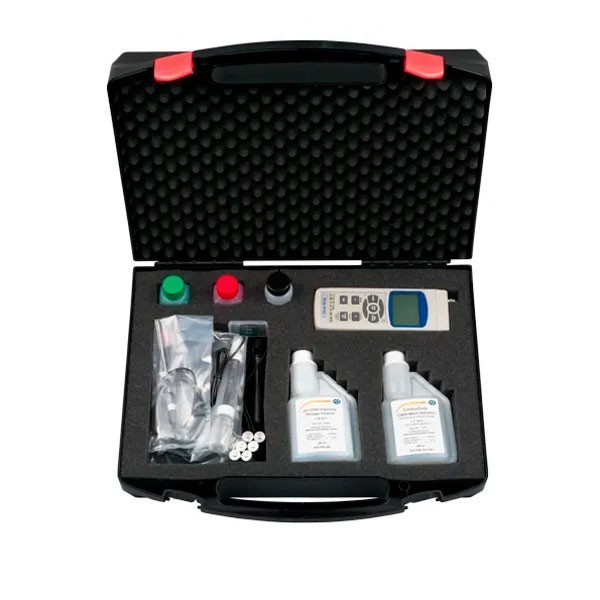

Package Contents

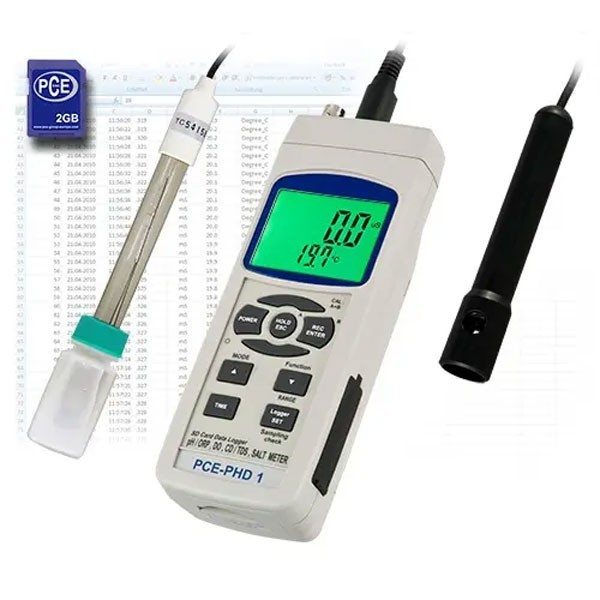

• 1 x PCE-PHD-1 meter
• 1 x Oxygen probe (OXPB-11)
• 1 x pH electrode (PE-03)
• 1 x Conductivity electrode (CDPB-03)

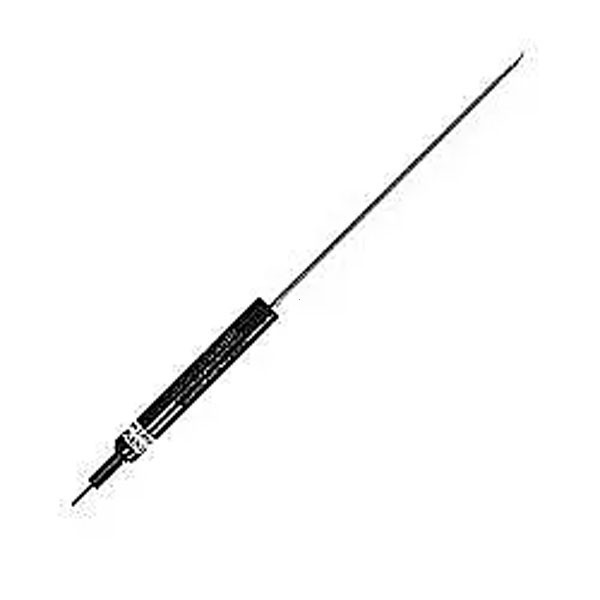

• 1 x Temperature probe (TP-07)
• 1 x SD card (2 GB)
• 1 x Storage solution (250 ml)
• 1 x pH 4 calibration solution (50 ml)
• 1 x pH 7 calibration solution (50 ml)
• 1 x Oxygen electrolyte solution (50 ml)
• 1 x Conductivity calibration solution 1413 µS (250 ml)
• 6 x AA batteries (1.5 V)
• 1 x Instruction manual
• 1 x Transport case with custom foam insert

PCE-PHD-1-KIT1 Key Advantages

• All-inclusive kit: sensors, solutions, and accessories ready to use.
• Portable and durable: perfect for field technicians and lab professionals.
• Independent logging: no computer or software required.
• Professional design with high-quality materials.
