Wine pH Meter PCE-PH20WINE

Reference: PCE-PH20WINE

Condition: New product

Wine pH Meter

The PCE-PH20WINE Wine pH Meter is a portable, waterproof (IP67) measuring instrument specifically designed for quick and accurate determination of pH in low-conductivity liquids such as wine and beer. Ideal for winemakers, laboratories, and quality control processes, it combines ease of use, high accuracy, and automatic calibration in a compact, robust device.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Key Benefits of the PCE-PH20WINE

Waterproof housing (IP67) for use in demanding environments

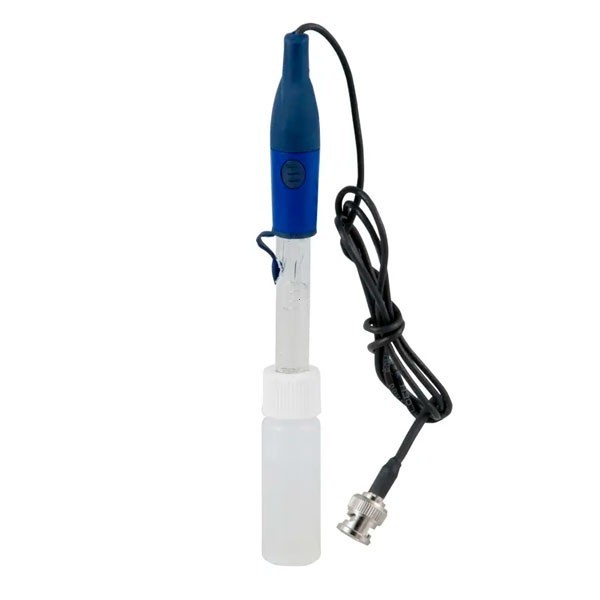

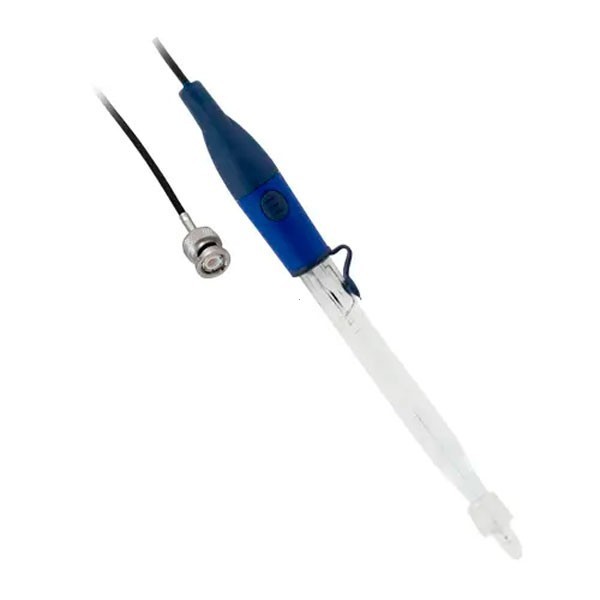

Specialized external pH electrode for wine and beer analysis
High precision with clear, rotatable digital display
Data hold function and auto power-off to save battery
Automatic calibration at pH 4, 7, or 10 (no adjustment screws needed)
Ideal for wineries, labs, and educational applications

Main Applications

pH value is a critical factor in winemaking, influencing the wine’s taste, microbial stability, and digestibility. The PCE-PH20WINE provides rapid, accurate pH measurement, helping winemakers make informed decisions at every stage of production.

Versatile and easy to use, it is also suitable for beer analysis and other aqueous solutions. Its rugged, waterproof construction ensures reliable results even in challenging environments.

Technical Specifications

Specification	Value
Measuring Range	0.00 ... 14.00 pH
Resolution	0.01 pH
Accuracy	±0.07 pH (5–9 pH) / ±0.1 pH (4–4.9 & 9.1–10) / ±0.2 pH (1–3.9 & 10–13)
Calibration	Automatic at pH 4, 7, or 10 using calibration solutions
Electrode	External pH electrode with BNC connector
Power Supply	4 x AAA 1.5V batteries
Operating Conditions	0 ... 60 °C / <80% RH
Dimensions	180 x 40 mm / 7 x 1.6 in
Weight	220 g / <1 lb

What's in the Box

1 x PCE-PH20WINE Wine pH Meter
1 x PCE-PH-WINE pH Electrode
4 x AAA Batteries
1 x Calibration Kit (pH 4 & 7 solutions, 75 ml each)
1 x User Manual

Accessories & Maintenance

To ensure optimal accuracy, regular calibration using pH 4.01 and pH 7.01 solutions is recommended. Available accessories include:

Replacement electrodes and proper storage solutions
Cleaning solution with pepsin and hydrochloric acid (PCE-GCS-500, 500 ml)
ISO Calibration Certificate (CAL-PCE-PH) from PCE Instruments

Competitive Advantages

Ergonomic pen-shaped design for portability
Rotatable screen for convenient viewing
Data-hold function for temporary storage of values
Auto shut-off after 10 minutes of inactivity
User-friendly, even for non-experts

Why Choose the PCE-PH20WINE?

The PCE-PH20WINE wine pH meter is an essential tool for quality-conscious wine producers. By combining lab-grade accuracy with simple operation and rugged reliability, this device supports efficient and effective wine analysis at every stage of production.
