Portable pH Meter – Multi-Parameter Water Quality Tester

Reference: PCE-PHD 1

Condition: New product

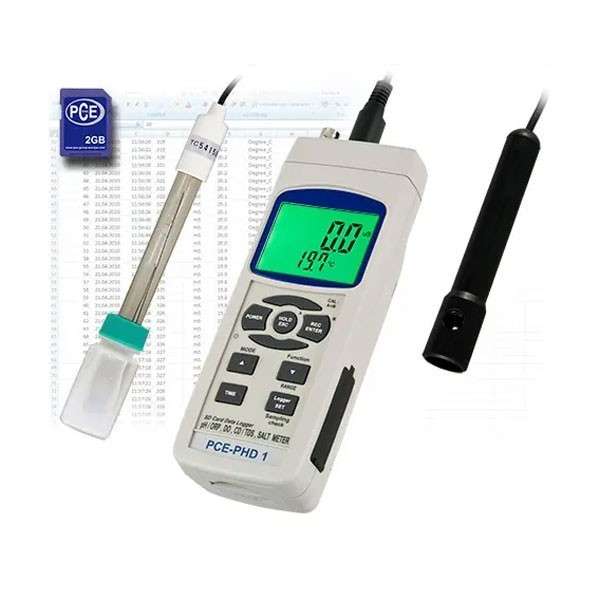

PCE-PHD 1 Portable pH Meter – Multi-Parameter Water Quality Tester

Product Description

The PCE-PHD 1 pH Meter is a high-precision, multi-parameter handheld device for analyzing water quality. This all-in-one tester measures pH, conductivity, salinity, dissolved oxygen (optional), and temperature, making it ideal for labs, pools, aquariums, wastewater plants, and environmental monitoring.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Equipped with automatic 3-point calibration and temperature compensation

It delivers highly accurate results under varying conditions. Data can be stored on an SD card (up to 16 GB) in Excel format, or transmitted in real-time via the integrated RS-232 interface using optional software and cable.

Key Benefits

Measures: pH, Redox, conductivity, salinity, TDS, temperature, and optional dissolved oxygen
Real-time data logging directly to Excel (via SD card)
High measurement accuracy with auto calibration
RS-232 port for live data transmission
Portable and durable design for field and lab use
Simple operation with intuitive interface

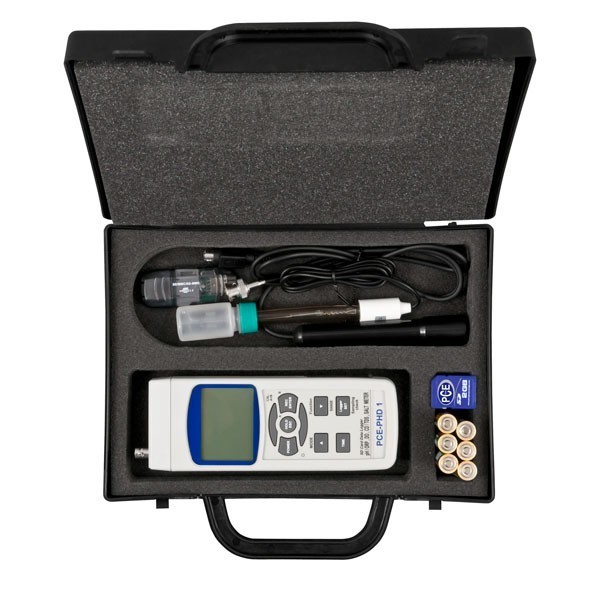

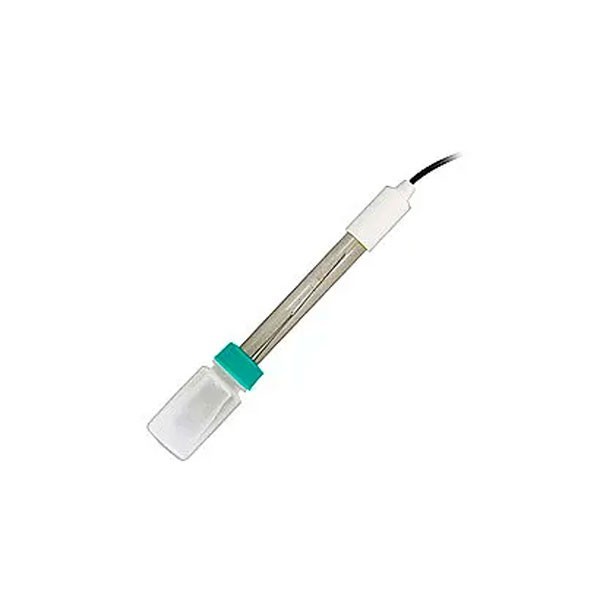

Includes pH and conductivity electrodes

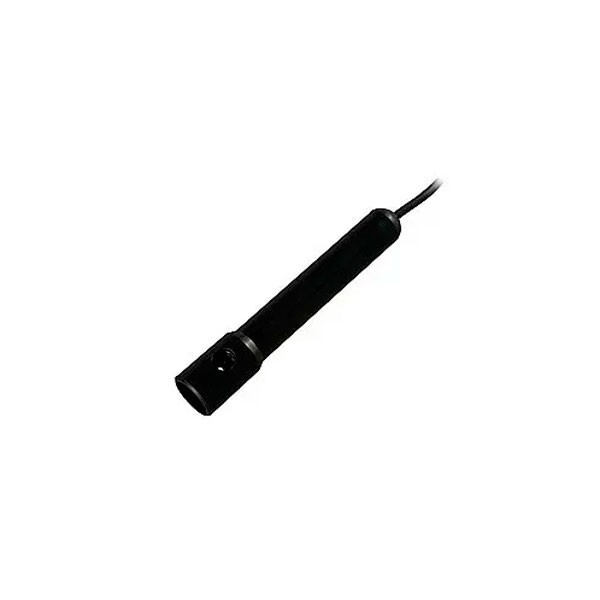

Optional accessories: Redox and oxygen probes, software, RS-232 cable

Technical Specifications

pH Measurement
Range	0.00 ... 14.00 pH
Resolution	0.01 pH
Accuracy	±0.02 pH + 2 digits
Calibration	3 points (pH 4, 7, 10)
Temperature compensation	Automatic (0–60 °C) or manual (0–100 °C)
Conductivity
Range	0 ... 200 mS/cm (in 4 ranges)
Resolution	Up to 0.1 µS/cm
Accuracy	±2% of range + 1 digit
Calibration	1413 µS/cm
Temperature compensation	Automatic (0–60 °C)
TDS Measurement
Range	0 ... 132000 ppm
Resolution	Up to 0.1 ppm
Accuracy	±2% of range + 1 digit
Temperature compensation	Automatic (0–60 °C)
Salinity
Range	0 ... 12 % (by weight)
Resolution	0.01 %
Accuracy	±0.5 %
Temperature compensation	Automatic (0–60 °C)
Dissolved Oxygen (optional)
Range	0 ... 20 mg/L (water), 0 ... 100% (air)
Resolution	0.1 mg/L \| 0.1%
Accuracy	±0.4 mg/L \| ±0.7%
Temperature compensation	Automatic (0–50 °C)
Temperature
Range	0 ... 60 °C
Resolution	0.1 °C
Accuracy	±0.8 °C
Temperature compensation	Automatic
General Specifications
Sampling rate	1 second to 9 hours
Memory	SD card up to 16 GB (2 GB included)
Display	LCD
Interface	RS-232
Software	Available optionally
Power supply	6 x AA batteries (1.5 V)
Operating conditions	0 ... +50 °C / <85% RH
Dimensions	177 x 68 x 45 mm
Weight	490 g
