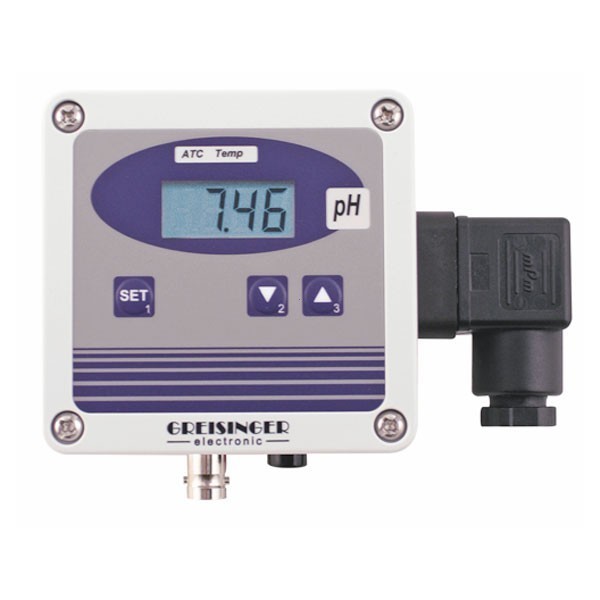

pH Transmitter with Display GPHU 014 MP / BNC
GPHU014 MP-BNC
New product
pH Transmitter with Display and Galvanic Isolation
Brand: Senseca
The GPHU 014 MP is a high-precision pH transmitter designed for industrial applications requiring reliable and safe pH measurement. Featuring a local display and galvanic isolation, it supports any standard pH electrode (BNC connector) and external Pt1000 temperature sensor.
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Main Features
- Measuring range: 0.00 to 14.00 pH
- Output signal: 4–20 mA (optional 0–10 V)
- Power supply: 12–30 V DC
- Galvanic isolation on input
- Manual or automatic temperature compensation via external sensor
- 4-digit LCD display, approx. 10 mm height
- Compact IP65 housing (except connectors)
Benefits & Applications
Ideal for chemical process monitoring, water treatment, environmental control, and laboratory use. Easy to configure via intuitive buttons and two-point calibration, ensuring fast and accurate setup.
Technical Specifications
| Reference | GPHU 014 MP / BNC |
|---|---|
| Measuring range | 0.00 ... 14.00 pH |
| Accuracy | ±0.02 pH ±1 digit (at 25 °C) |
| Output signal | 4 ... 20 mA (2-wire), optional 0 ... 10 V (3-wire) |
| Galvanic isolation | Yes, on input |
| Power supply | 12 ... 30 V DC (18–30 V DC for 0–10 V output) |
| Temperature compensation | -30 ... +150 °C, manual or automatic via Pt1000 |
| Display | 4-digit LCD, approx. 10 mm height |
| Dimensions | 82 x 80 x 55 mm (W x H x D) |
| Mounting | Wall mount with fixing holes (70 x 50 mm) |
