Dewpoint Meter Elcometer 319-S

Reference: G319-S

Condition: New product

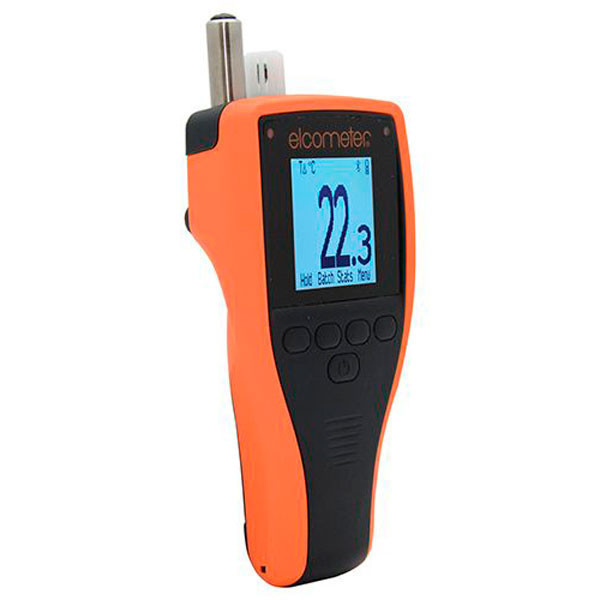

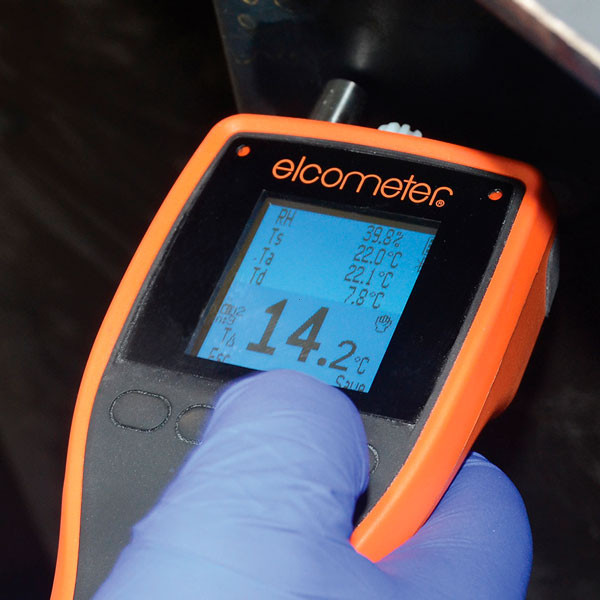

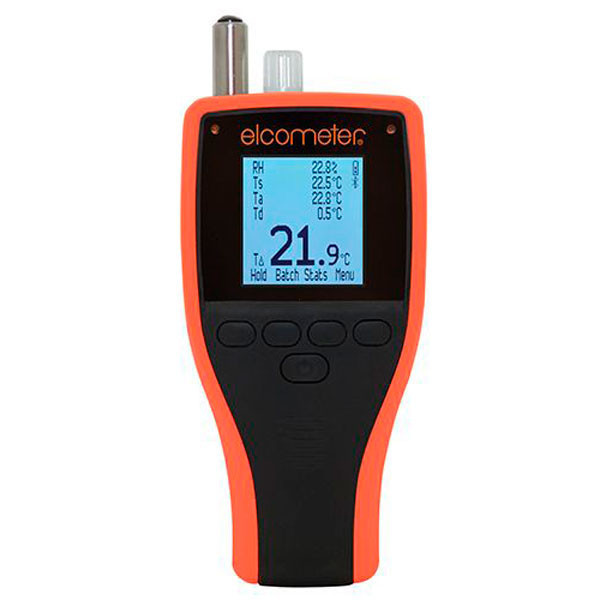

Elcometer 319 Dewpoint Meter

The Elcometer 319 Dewpoint Meter is a professional instrument designed to accurately measure and record the key climatic parameters required to determine whether environmental conditions are suitable for painting, industrial coatings and corrosion protection applications.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Description

Rugged, intuitive and highly versatile, this dewpoint meter helps inspectors, applicators and quality control professionals prevent condensation-related issues, improve coating adhesion and maintain compliance with technical specifications and international standards, including ISO 8502-4.

Key Benefits

Accurate climatic monitoring before and during coating application
Compliant with ISO 8502-4
Readings stored with date and time stamp
Supplied with calibration certificate

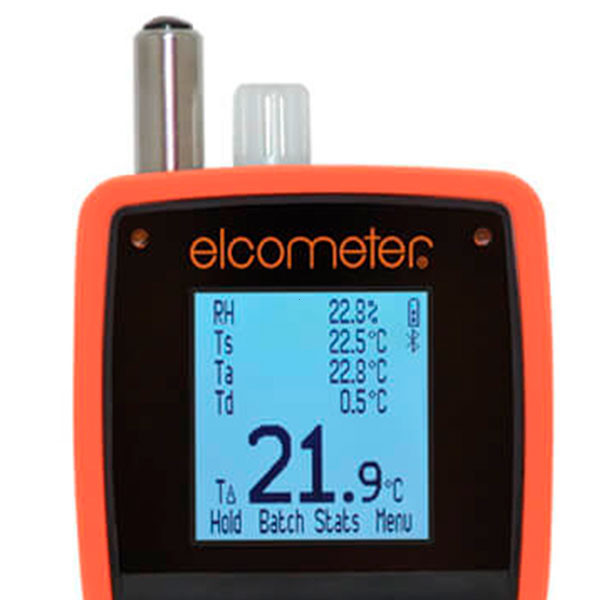

Backlit display showing up to five parameters

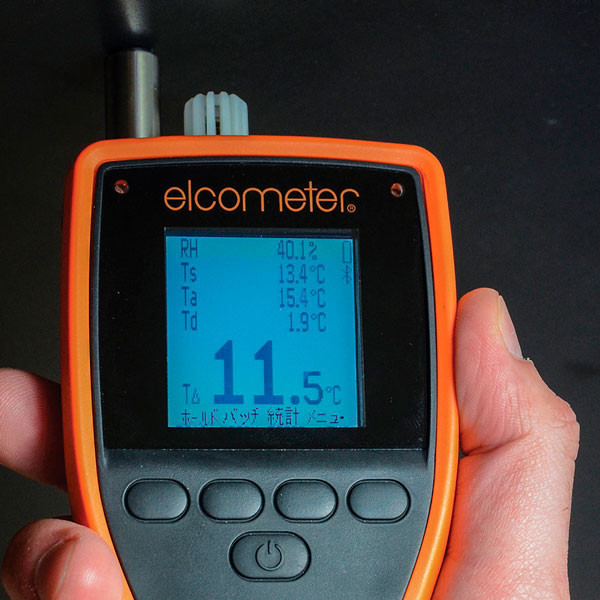

Easy-to-use multilingual menu interface
Configurable visual and audible alarms for instant control
Rugged design with IP66-equivalent protection

Measured Climatic Parameters

The Elcometer 319 is designed to measure and record the most relevant environmental parameters for coating inspection and climatic control:

RH – Relative Humidity
Ta – Air Temperature
Ts – Surface Temperature
Td – Dewpoint Temperature
TΔ – Difference between Surface Temperature and Dewpoint
Tdb – Dry Bulb Temperature
Twb – Wet Bulb Temperature
Te – External Temperature Correction (K-Type)
SH – Specific Humidity

Industrial Applications

This dewpoint meter is ideal for environments where climatic monitoring is essential to coating quality, adhesion and long-term durability:

Industrial painting
Corrosion protection
Surface preparation and inspection
Shipyards and offshore structures
Petrochemical industry
Steel fabrication and metal structures
Paint booths
On-site quality control and industrial maintenance

Performance, Logging and Data Transfer

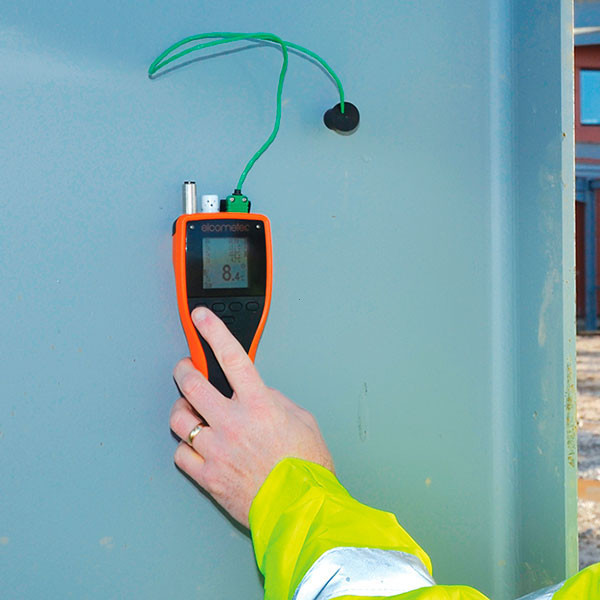

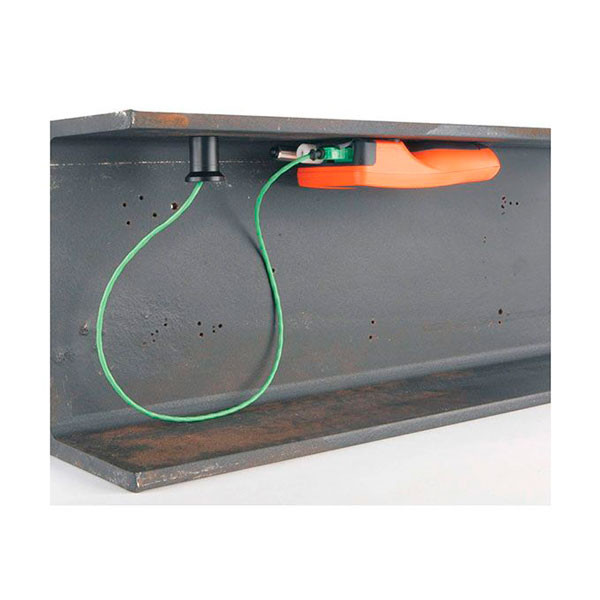

The Model T can be used both as a handheld dewpoint meter and as a remote monitoring device with automatic data logging. Thanks to the integrated magnets, the gauge can be attached directly to the substrate during logging, enabling stable measurements during long inspections.

Data can be transferred via USB or Bluetooth® to PC, Android™ or iOS devices and analysed using ElcoMaster® software. This makes it easy to generate professional reports and share inspection data instantly with clients, technical teams and project managers.

Technical Specifications

Technical Specification	Model S	Model T	Certificate
Part Number	G319----S	G319----T	●
Reading Parameters RH, Ta, Ts, (Te⁶), Td, TΔ, Tdb, Twb¹, SH¹	■	■
Statistics Number of readings, standard deviation, mean, coefficient of variation, minimum and maximum	■	■
Dustproof & Waterproof Protection Fully sealed sensors – equivalent to IP66	■	■
Integral Magnets Secure the gauge during logging	■	■
High / Low Limits Audible, visual and red/green LED alarms can be set for any parameter	■	■
Multilingual Menus	■	■
Backlight User selectable	■	■

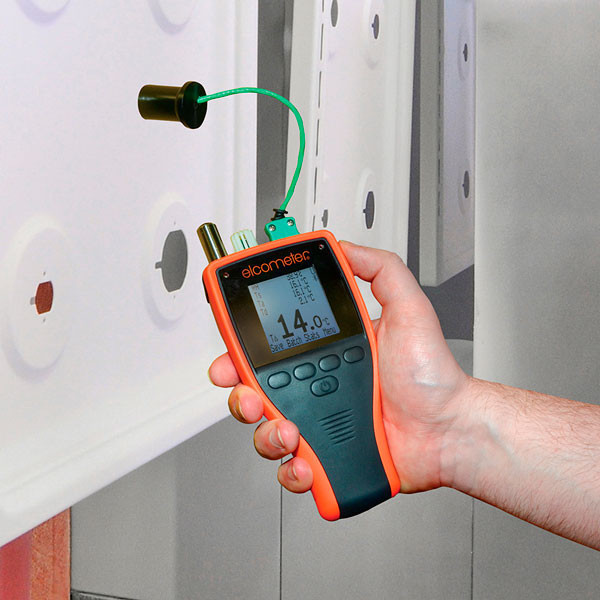

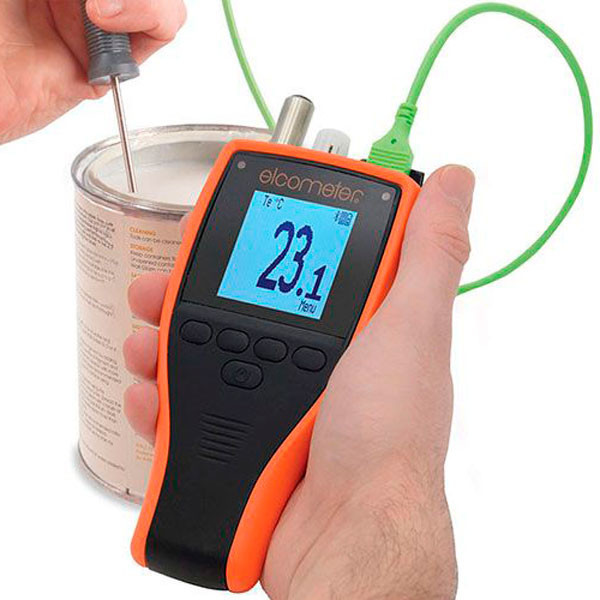

K-Type Connector For external measurement	■	■

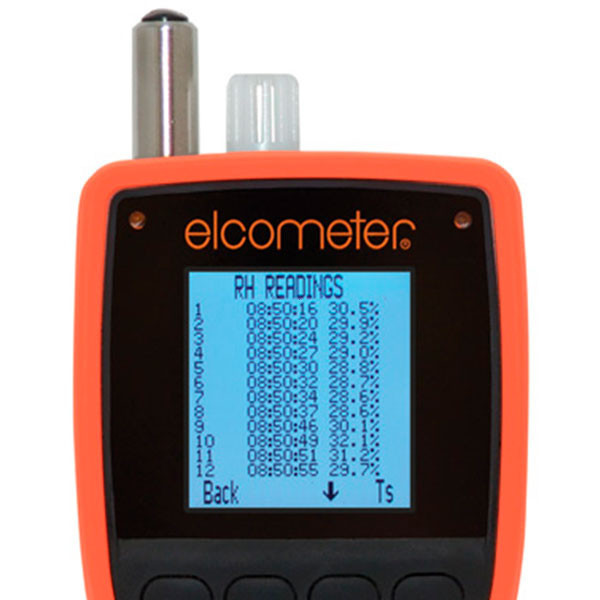

Memory With reading and statistics review	Last 10 records	25,000 records in 999 batches
Manual Logging	■	■
Interval Logging²	Adjustable between 1 second and 24 hours
Data Output
USB		■
Bluetooth® to computer, Android™ and iOS⁴		■
ElcoMaster® software and USB cable		■
Range / Accuracy / Resolution	Specification
Gauge⁵	-20 to +80°C / ±0.5°C / 0.1°C
Air Temperature (Ta)	-20 to +80°C / ±0.5°C⁷ / 0.1°C
Surface Temperature (Ts)	-20 to +80°C / ±0.5°C / 0.1°C
External K-Type Thermocouple (Te)	-40 to +200°C / ±0.5°C⁶ / 0.1°C
Relative Humidity (RH)	0 to 100% RH / ±3% RH / 0.1%
Gauge & LCD Operating Range	-20°C to +80°C
Power Supply	2 x AA batteries or via USB
Battery Life	Manual mode: > 40 hours Interval logging: up to 400 hours (1 reading every 10 minutes)
Dimensions	180 x 75 x 35 mm
Weight	300 g
Packing List	Elcometer 319 Dewpoint Meter, 2 x AA batteries, wrist strap, carry case, calibration certificate, USB cable⁸, ElcoMaster®⁸ software and operating instructions

¹ Model T only.
² Adjustable logging interval between 1 second and 24 hours.
³ Relative humidity accuracy according to manufacturer specification.
⁴ Compatible with supported Android™ and iOS devices.
⁵ Gauge measurement range.
⁶ With external K-type thermocouple.
⁷ Air temperature accuracy according to manufacturer specification.
⁸ Included with Model T where applicable.

Frequently Asked Questions

What is the Elcometer 319 used for?

It is used to measure and record critical climatic parameters such as relative humidity, air temperature, surface temperature and dewpoint temperature, helping professionals confirm whether environmental conditions are suitable for coating and painting work.

What is the difference between Model S and Model T?

The Model S provides essential measuring functions and basic reading review. The Model T adds advanced memory, batch logging, USB and Bluetooth® connectivity, and greater capability for monitoring and data analysis.

Is it suitable for demanding industrial environments?

Yes. The instrument is designed for industrial use, with an operating range from -20°C to +80°C, fully sealed sensors and water and dust resistance equivalent to IP66.

Can data be downloaded and shared?

Yes. On Model T, data can be downloaded to PC or mobile devices via USB or Bluetooth®, allowing professional reporting and inspection data management through ElcoMaster® software.

Why choose the Elcometer 319?

The Elcometer 319 Dewpoint Meter combines accuracy, durability, ease of use and advanced connectivity in one professional instrument. It is a high-value solution for professionals who need reliable climatic control, detailed technical documentation and greater confidence in coating application conditions.
