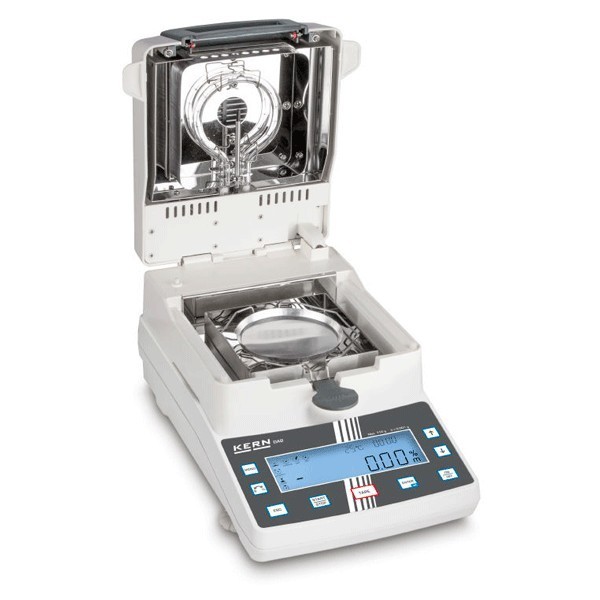

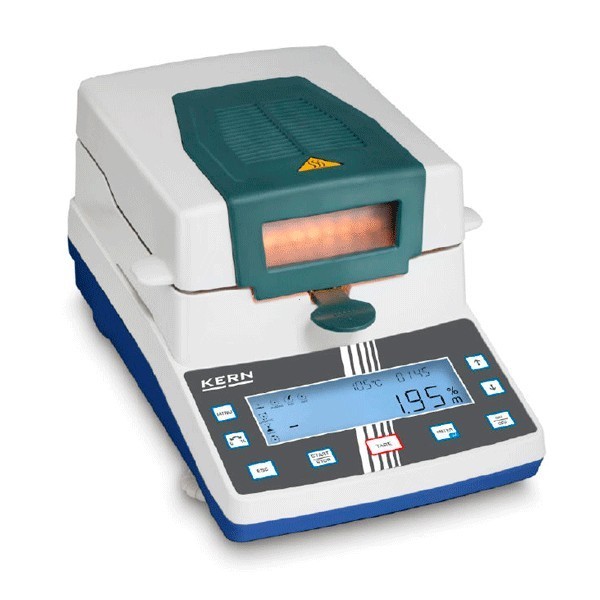

Moisture analyser Kern DAB 100-3 or DAB 200-2

Reference:

Condition: New product

Brand: Kern & Sohn

The devices is designed for a fast and reliable determination of material moisture in liquid, porous and solid materials by applying the method of thermogravimetrics. The moisture meter DAB 100 with a sampling capacity between 1 g up to 110 g and the DAB 200 with a sampling capacity between 1 g up to 200 g.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

The DAB moisture analyzer is particularly easy to use and with reliable results due to the high precision temperature control with halogen heating technology and a distinct weighing technology. Operation is intuitive with all indications on the display. The DAB-100 indicates step-by-step operation to avoid measurement errors.

Differences between DAB 100 and DAB 200

Specification	DAB 100-3	DAB 200-2
Maximum load:	110 g	200 g
Readability:	0,001 g/ 0,01%	0,01 g/ 0,05%
Sample size:	1 g to 110 g	1 g to 200 g
Recommended adjustment weight, not added (class):	100 g (Class F2)	200 g (Class F2)
Reproducibility Weighed-in quantity 2 g:	0,15%	1,5%
Reproducibility Weighed-in quantity 10 g:	0,02%	0,3%

Easy to use:

Get fast moisture results in an easy three-step process:
Tare the empty weighing pan.
Add the sample
Press the start button and get the results in a few minutes.

Your benefits:

Quick measurements
Moisture meter for all types of food products
Fast and accurate halogen heating for reliable results
Large format, easy-to-read display
Robust for use in laboratory or production environments
Easy access menu
Configuration function for various programs and connectivity options for documentation

Key Features:

Backlit graphic display
Display with 14 mm high digits
Three heating profiles:
- Standard drying
- Quick drying
- Slow drying
Temperature indication
Indication of humidity in%
Previous drying time
Result indication in:
- [%] moisture content
- [%] dry content
- [g] residual weight in grams
RS 232 interface for communication with printer or software (Note: printer or software not included)
Indication of drying process
Active heating profile indication
Auto power off function:
- 2 mg weight loss in 45 seconds
- Time-controlled
- Configurable from 3 minutes to 99 minutes
- Manually pressing the power off button
400W Quartz Halogen Heating
Observation window above the sample, useful during initial setup
Internal memory for automatic sequence of 15 complete drying processes and 5 drying processes carried out
The last measured value remains on the display until it is deleted and replaced with a new measured value
50 sample plates included
Large format LCD display with backlight
Dimensions: 240 × 365 × 180 mm
Included in delivery: DAB moisture meter, 50 test plates and instruction manual
