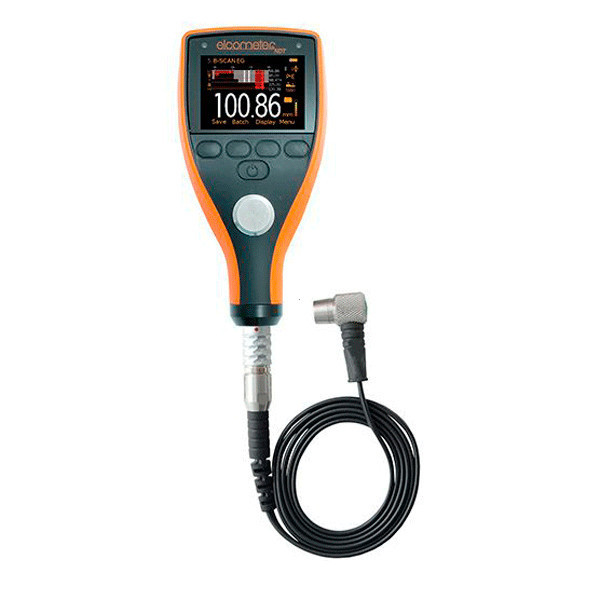

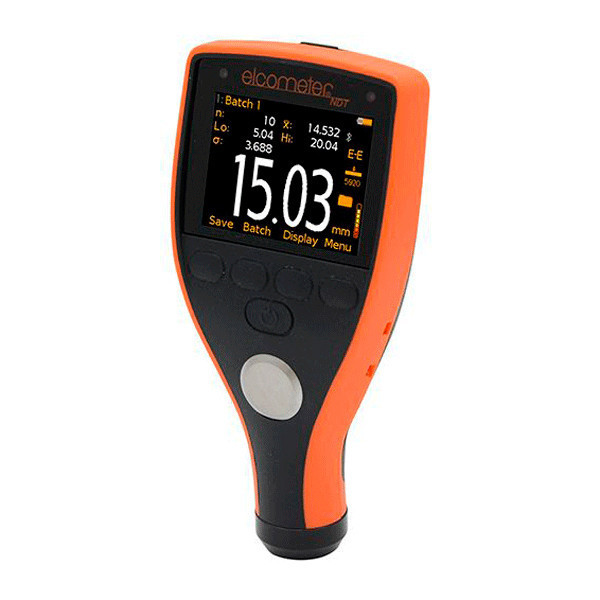

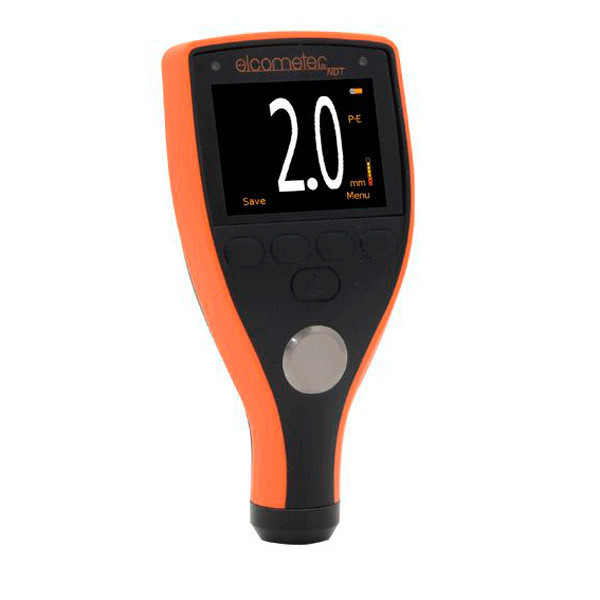

Ultrasonic Material Thickness Gauge Elcometer MTG8-TXC

Reference: MTG8DL-TXC

Condition: New product

Material Thickness Gauge

The Elcometer MTG Ultrasonic Thickness Gauges combine accuracy, speed and versatility to measure material thickness and sound velocity on virtually any substrate. Ideal for quality control, predictive maintenance, corrosion inspection and on-site verification.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

MTG8 Features

✅ Pulsed-Echo (P-E), Echo-Echo ThruPaint™ and Velocity (VM) measurement modes
✅ Calibration options: 2-Point, 1-Point, Material, Velocity, Thickness Set and Factory settings
✅ Three user-programmable calibration memories
✅ User-selectable measurement rate: 4, 8 or 16 readings per second
✅ User-selectable resolution: 0.1 mm (0.01”) or 0.01 mm

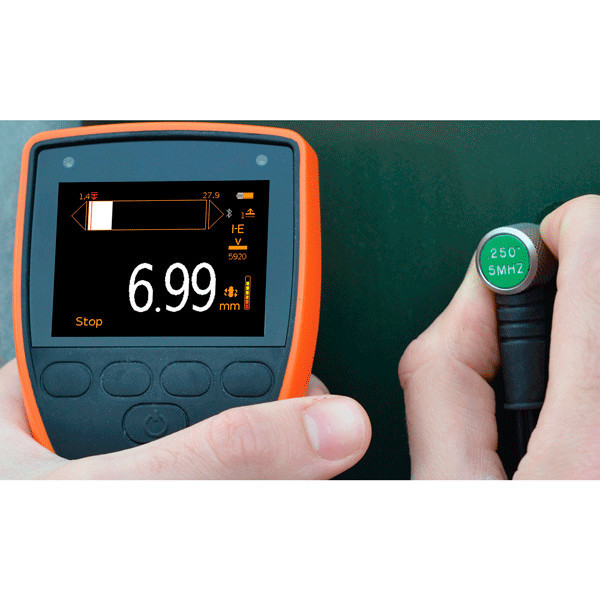

✅ Scan Mode

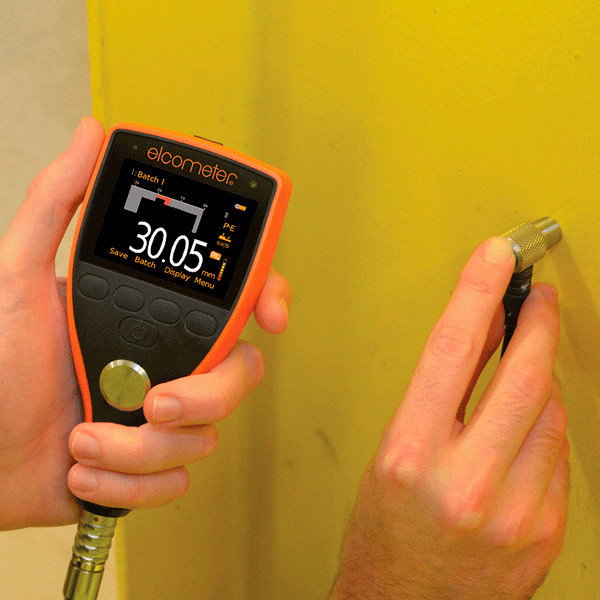

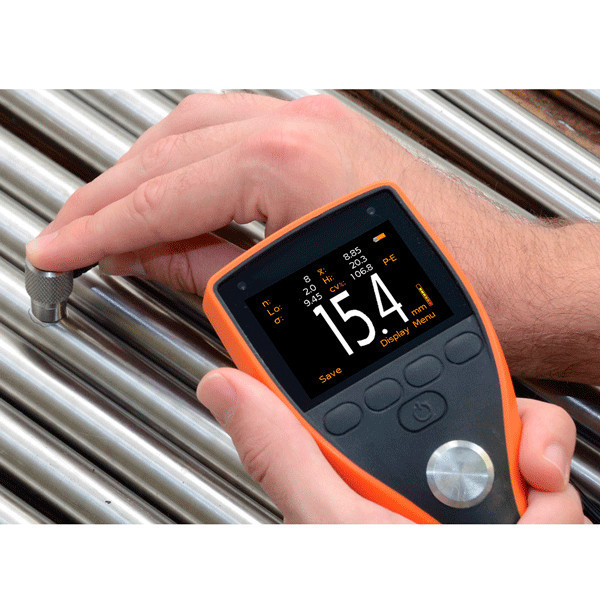

✅ Display modes: Readings, Statistics, Bar Graph, Run Chart, B-Scan and Differential Mode
✅ Gauge memory capable of storing 100,000 readings in up to 1,000 sequential batches
✅ User-definable upper and lower limits with audible and visual pass/fail alerts
✅ USB and Bluetooth® data output to ElcoMaster® and ElcoMaster® Mobile App

Description

The MTG8 is the top-of-the-range gauge, providing all the features and capabilities required for accurate thickness and velocity measurement on virtually any material, across a wide variety of applications.

In addition to all the features found on the MTG2, MTG4 and MTG6 models, the MTG8 allows users to store up to three separate calibrations in memory. Once saved, each calibration can be selected without the need to re-calibrate the instrument — ideal for operators measuring different materials or thickness ranges. Calibration files can also be renamed for easy identification.

The MTG8 offers fully user-definable upper and lower limits, complete with audible and visual pass/fail warnings. If a reading falls outside the defined limits, the measurement value and limit icon turn red, the red LED flashes and an alarm sounds, providing immediate indication of out-of-tolerance areas.

In Differential Mode, a nominal thickness value can be set, enabling the gauge to display both the measured thickness and its deviation from the nominal value, clearly highlighting any thinner or thicker regions.

The MTG8 also features B-Scan, a time-based, two-dimensional cross-sectional graphical representation of the test material, ideal for relative depth analysis. The B-Scan zoom level may be set automatically or manually adjusted to focus on specific areas of interest.

The instrument can store up to 100,000 readings in as many as 1,000 sequential or grid-type batches. In grid mode, readings are arranged in a spreadsheet-style format. The Obst function allows users to record obstructions within the grid.

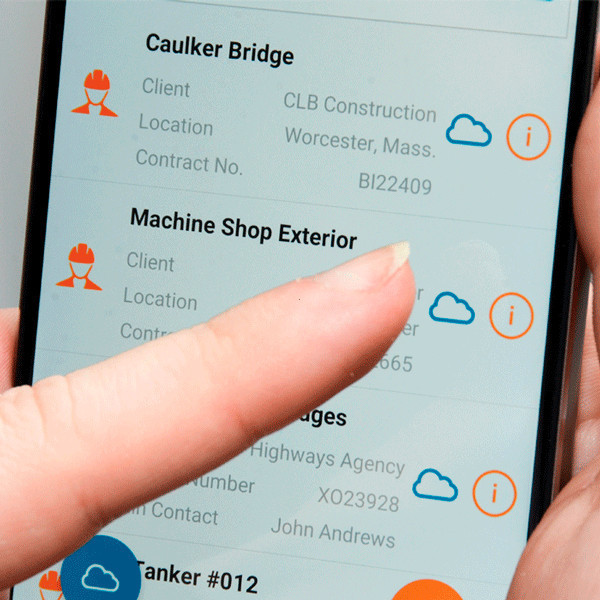

Fully compatible with ElcoMaster® for PC and mobile devices, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ for further analysis and comprehensive reporting.

The Elcometer MTG8 material thickness gauge complies with the following standards:

✅ ASTM E797
✅ EN 14127
✅ EN15317

Why Choose the MTG Range

Smart: configurable pass/fail limits (audible and visual alerts) per reading or per batch.
Accurate: multiple calibration options (Zero, 1-Point, 2-Point, pre-defined materials) and an integrated zero disk.

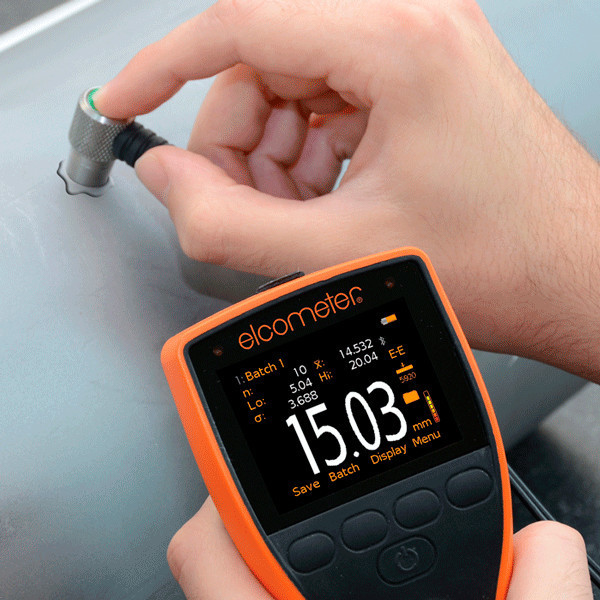

Versatile: measures uncoated and coated surfaces using the Echo Echo ThruPaint™ mode up to 2 mm.
Productive: Scan Mode up to 16 Hz, storage for up to 100,000 readings (MTG8) and USB/Bluetooth® connectivity with ElcoMaster®.
Robust: impact-, dust- and splash-resistant construction (equivalent to IP64) with a 2.4" TFT display.
Connected: USB/Bluetooth® to ElcoMaster® (PC, iOS & Android) — for professional analysis and reporting.

Typical Applications

Pipe and tank inspection, corrosion monitoring, metal structures, composites, plastics and engineering materials, through-coating thickness verification, industrial maintenance, oil & gas, automotive, marine and energy sectors.

Specifications & Model Comparison

Code				Certificate
¹ Ranges depend on material and transducer. ² Typical values under controlled conditions. ³ Approximate; varies with usage and temperature.
Gauge only	Complete with 5 MHz ¼” right-angle dual element transducer	Description		Yes
	MTG2-TXC	Elcometer MTG2 — Ultrasonic Material Thickness Gauge		Yes
MTG4	MTG4-TXC	Elcometer MTG4 — Ultrasonic Material Thickness Gauge		Yes
MTG6DL	MTG6DL-TXC	Elcometer MTG6DL — Ultrasonic Material Thickness Gauge		Yes
MTG8BDL	MTG8BDL-TXC	Elcometer MTG8BDL — Ultrasonic Material Thickness Gauge		Yes
Model Comparison
Model	MTG2	MTG4	MTG6	MTG8
Measurement Range¹
Pulse Echo (PE)	0.63 – 500 mm (0.025 – 19.999”)	0.63 – 500 mm (0.025 – 19.999”)	0.63 – 500 mm (0.025 – 19.999”)	0.63 – 500 mm (0.025 – 19.999”)
Echo Echo ThruPaint™ (EE)	—	2.54 – 25.4 mm (0.100 – 1.0”)	2.54 – 25.4 mm (0.100 – 1.0”)	2.54 – 20.00 mm (0.100 – 0.787”)
Velocity Mode (VM)	—	1,250 – 10,000 m/s (0.0492 – 0.3937 in/μs)	1,250 – 10,000 m/s (0.0492 – 0.3937 in/μs)	1,250 – 10,000 m/s (0.0492 – 0.3937 in/μs)
Measurement Accuracy²
Pulse Echo (PE)	±0.1 mm (0.63–19.99 mm); ±0.5% (20.00–500.00 mm)	±0.1 mm (0.63–19.99 mm); ±0.5% (20.00–500.00 mm)	±0.05 mm (0.63–9.99 mm); ±0.5% (10.00–500.00 mm); ±0.004” (0.025–0.393”); ±0.5% (0.394–20.00”)	±0.05 mm (0.63–9.99 mm); ±0.5% (10.00–500.00 mm); ±0.004” (0.025–0.393”); ±0.5% (0.394–20.00”)
Echo Echo ThruPaint™ (EE)	—	±0.1 mm (2.54–25.4 mm)	±0.05 mm (2.54–9.99 mm); ±0.5% (10.00–20.00 mm); ±0.004” (0.100–0.393”); ±0.5% (0.394–0.787”)	±0.05 mm (2.54–9.99 mm); ±0.5% (10.00–20.00 mm); ±0.004” (0.100–0.393”); ±0.5% (0.394–0.787”)
General
Operating temperature	-10 to 50 °C (14 to 122 °F)
Power supply	2 × AA batteries
Battery life³	Alkaline: 15 h \| Lithium: 28 h
Gauge weight	210 g (7.4 oz) — with batteries, without transducer
Gauge dimensions	145 × 73 × 37 mm (5.7 × 2.84 × 1.46”), without transducer
Package Contents
MTG2	MTG2 gauge, 5 MHz ¼” right-angle dual element transducer, ultrasonic couplant, carry pouch, screen protector, wrist strap, 2 × AA, instructions, test certificate and 2-year warranty extension card.
MTG4	MTG4 gauge, 5 MHz ¼” dual element transducer reference TXC5M00CP-4 (MTG4-TXC only), couplant, pouch, screen protector, wrist strap, 2 × AA, instructions, test certificate and 2-year warranty extension card.
MTG6	MTG6 gauge, 5 MHz ¼” dual element transducer reference TXC5M00CP-4 (MTG6DL-TXC only), couplant, hard carry case, 3 × screen protectors, wrist strap, 2 × AA, instructions, calibration certificate, ElcoMaster® CD and USB cable.
MTG8	MTG8 gauge, 5 MHz ¼” dual element transducer (MTG8BDL-TXC only), couplant, hard carry case, 3 × screen protectors, wrist strap, 2 × AA, instructions, calibration certificate, ElcoMaster® CD and USB cable.

Features — Model Comparison

Feature	MTG2	MTG4	MTG6	MTG8
¹ Requires Internet connection. ² Standard 1-year warranty, free extension to 2 years within 60 days of purchase. ³ Default scan mode: 16 Hz. ⁴ Material and transducer dependent.
Easy-to-use multilingual menu structure	✓	✓	✓	✓
Tough, impact, water and dust resistant (IP64 equivalent)	✓	✓	✓	✓
Bright colour display with permanent backlight	✓	✓	✓	✓
Ambient light sensor with adjustable brightness	✓	✓	✓	✓
2.4" (6 cm) scratch/solvent-resistant TFT display	✓	✓	✓	✓
Large tactile buttons with positive feedback	✓	✓	✓	✓
USB power (via PC)	✓	✓	✓	✓
Software updates¹ via ElcoMaster®	✓	✓	✓	✓
2-year gauge warranty²	✓	✓	✓	✓
Limits: up to 40 audible/visual pass/fail warnings	—	—	—	✓
Measurement Modes
Pulse Echo (PE)	✓	✓	✓	✓
Echo Echo ThruPaint™ (EE)	—	✓	✓	✓
Velocity Mode (VM)	—	—	✓	✓
Measurement Rate
Readings per second	4 Hz	4 Hz	4, 8, 16 Hz³	4, 8, 16 Hz³
Thickness Range⁴
PE 0.63–500 mm (0.025–19.999")	✓	✓	✓	✓
EE 2.54–25.4 mm (0.100–1.0")	—	✓	✓	—
Units & Indicators
Units: mm or inches	✓	✓	✓	✓
m/s, in/μs	—	—	✓	✓
Repeatability / stability indicator	✓	✓	✓	✓
Display Modes
Reading	✓	✓	✓	✓
Selected statistics	—	—	✓	✓
Scan bar graph	—	—	✓	✓
Run Chart	—	—	✓	✓
Readings & Differential	—	—	—	✓
B-Scan (cross-sectional view)	—	—	—	✓
Selectable Resolution
Low: 0.1 mm; 0.01"; 10 m/s; 0.001 in/μs	✓	✓	✓	✓
High: 0.01 mm; 0.001"; 1 m/s; 0.0001 in/μs	—	—	✓	✓
Statistics
n, mean x̄, standard deviation σ	—	—	✓	✓
Minimum (Lo) / Maximum (Hi)	—	—	✓	✓
Low/High limit value	—	—	—	✓
Reading range / Nominal value	—	—	—	✓
# of readings below low limit / above high limit	—	—	—	✓
Calibration Options
Zero (integral zero disc)	✓	✓	✓	✓
1-Point	—	✓	✓	✓
2-Point	—	—	✓	✓
39 preset materials / Factory reset	—	✓ / ✓	✓ / ✓	✓ / ✓
Velocity mode / Known thickness	—	—	✓ / ✓	✓ / ✓
Calibration Features
Calibration lock (optional PIN) / Calibration test	—	—	✓ / ✓	✓ / ✓
Calibration memories (3 programmable) / Out-of-cal warning	—	—	— / —	✓ / ✓
Data Logging
Number of readings / Number of batches	— / —	— / —	1,500 / 1	100,000 / 1,000
Sequential batches / Grid batches / Fixed batch size with linking	— / — / —	— / — / —	✓ / — / —	✓ / ✓ / ✓
“obst” entry / Delete last reading	— / —	— / —	— / ✓	✓ / ✓
Date/time stamp / Review–clear–delete batches / Alphanumeric names / Review graph	— / — / — / —	— / — / — / —	✓ / ✓ / — / —	✓ / ✓ / ✓ / ✓
Data Output & Transducer
USB to PC / Bluetooth® to PC, Android™, iOS / ElcoMaster® software	✓ / — / —	✓ / — / —	✓ / ✓ / ✓	✓ / ✓ / ✓
Dual element transducer / Auto recognition / V-path correction	✓ / ✓ / ✓	✓ / ✓ / ✓	✓ / ✓ / ✓	✓ / ✓ / ✓

Connectivity & Software

Compatible with ElcoMaster® (PC and iOS/Android App). Transfer readings via USB or Bluetooth®, analyse statistics, and generate professional reports for easy sharing with teams and clients.

Packing List

1 x Elcometer MTG8DL
1 x 5 MHz 1/4" right-angle transducer
1 x Couplant
1 x Wrist strap
1 x 3 × screen protectors
1 x Protective case
1 x Plastic transit case
1 x 2 × AA batteries
1 x Calibration certificate
1 x USB cable
1 x ElcoMaster® software
1 x Two-year warranty extension card
1 x Operating instructions
