Ultrasonic Thickness Gauge PCE-TG 300-NO7

Reference: PCE-TG 300-NO7

Condition: New product

Ultrasonic Thickness Gauge

The PCE-TG 300-NO7 is a professional ultrasonic thickness gauge designed for fast, accurate, and non-destructive measurements on homogeneous materials.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Description

The PCE-TG 300-NO7 is a professional ultrasonic thickness gauge designed for fast, accurate, and non-destructive measurements on homogeneous materials. With its wide measuring range, pulse-echo and echo-echo modes, plus Bluetooth printing capability and USB connectivity, it is a reliable solution for industrial maintenance, quality control, technical inspection, and corrosion monitoring.

This thickness meter can measure virtually any homogeneous material, including metals, plastics, ceramics, epoxy resin, and glass. Optional probes are available for applications involving damping or dispersive materials, as well as 90° probes for hard-to-reach areas. The ultrasonic velocity can be freely adjusted to match the tested material and ensure dependable measurement accuracy.

Its TFT color display ensures clear readings even in demanding working environments. The built-in memory stores measurements from multiple inspection points, while the echo-echo mode allows measurements through coated parts without including the coating thickness in the final result. This makes the instrument ideal for pipe inspection, tank testing, wall thickness control, wear assessment, and defect detection.

Key benefits

Non-destructive thickness measurement for safe and efficient inspections.
Pulse-echo and echo-echo modes for greater application flexibility.
Suitable for metals, plastics, ceramics, resins, and other homogeneous materials.
PCE-TG-NO7 probe optimized for thin walls and highly curved pipes.
Built-in memory for organized data logging.
Bluetooth printing support and USB 2.0 data transfer.
Up to 100 hours of continuous operation.

Recommended applications

Corrosion and wear inspection on metal structures.
Thickness measurement on pipes, tanks, and vessels.
Quality control in manufacturing and industrial maintenance.
Inspection of coated parts without damaging the material.
Measurement on thin-wall components and curved surfaces.

Features

Wide measuring range.
Different probes available for specific applications.
Battery powered with standard AA batteries.
Defect and pit detection capability.
Non-volatile internal memory.

Technical specifications

Specification	Details

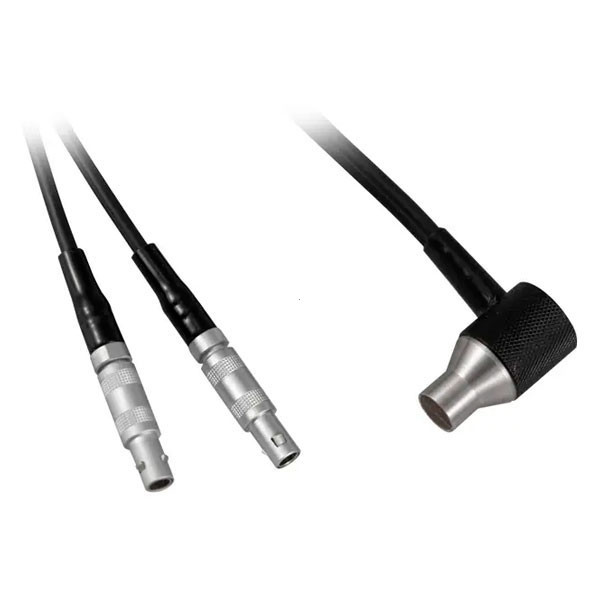

PCE-TG-NO7 Probe
Range	0.65 ... 200 mm (steel)
Minimum tube diameter and wall thickness	15 x 2 mm
Frequency	7 MHz
Diameter	6 mm
Description	For thin walls or highly curved pipes
PCE-TG 300 Gauge
Range	P-E: pulse-echo mode 0.65 ... 600 mm (steel) E-E: echo-echo mode 2.50 ... 100 mm
Accuracy	±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm) H refers to material thickness
Resolution	0.1 mm / 0.01 mm / 0.001 mm (adjustable)
Measurable materials	Metals Plastic Ceramic Epoxy resin Glass And any homogeneous material
Measurement modes	Pulse-echo (defect and pit detection) Echo-echo (ignores coating thickness)
Calibration	Ultrasonic velocity calibration Zero-point calibration Two-point calibration
Display modes	Normal mode, scan mode, differential mode
Units	mm / inch
Data transfer	Bluetooth printing / USB 2.0
Memory	Non-volatile memory for 100 data groups with 100 records each
Operating time	Up to 100 hours continuous operation Automatic standby mode (adjustable) Automatic power-off mode (adjustable)
Power supply	4 x 1.5 V AA batteries

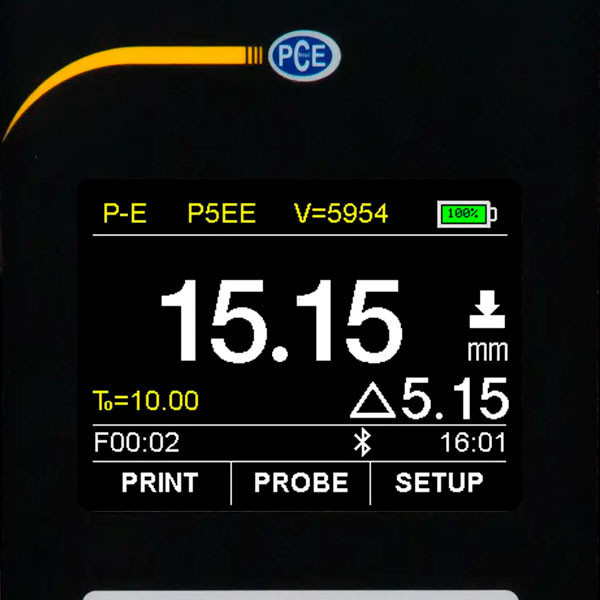

Display	320 x 240 pixel TFT LCD, color screen with brightness adjustment
Operating conditions	0 ... +50 °C, ≤80 % RH non-condensing
Storage conditions	-20 ... +70 °C, ≤80 % RH non-condensing
Dimensions	185 x 97 x 40 mm
Weight	375 g

Delivery contents

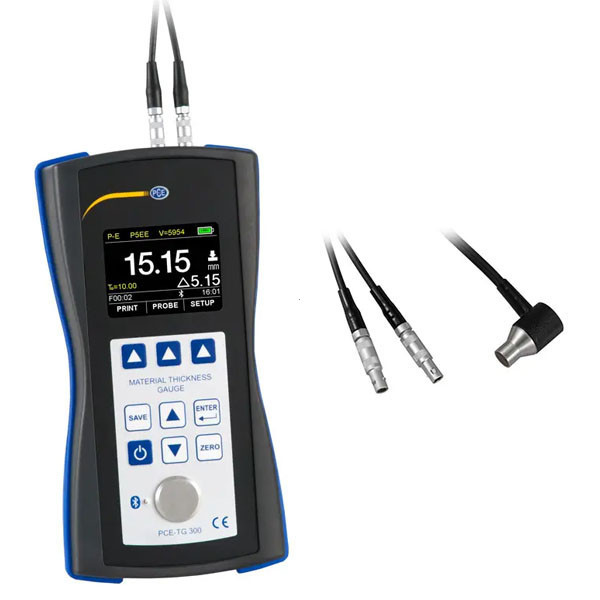

1 x PCE-TG 300-NO7 thickness gauge
1 x PCE-TG-NO7 probe
1 x 100 ml high-temperature couplant gel
4 x 1.5 V AA batteries
1 x Carrying case
1 x User manual

FAQ - Frequently Asked Questions

What materials can the PCE-TG 300-NO7 measure?

This ultrasonic thickness gauge is designed for homogeneous materials, including metals, plastic, ceramic, epoxy resin, glass, and other materials suitable for ultrasonic thickness measurement.

Can it measure through coatings?

Yes. The echo-echo mode allows the instrument to measure the base material thickness while excluding the coating layer, making it ideal for painted or protected parts.

Is this model suitable for curved pipes and thin walls?

Yes. The PCE-TG-NO7 probe is specifically designed for measurements on thin walls and highly curved tubes, helping improve accuracy in demanding inspection points.

Can I store and transfer measurement data?

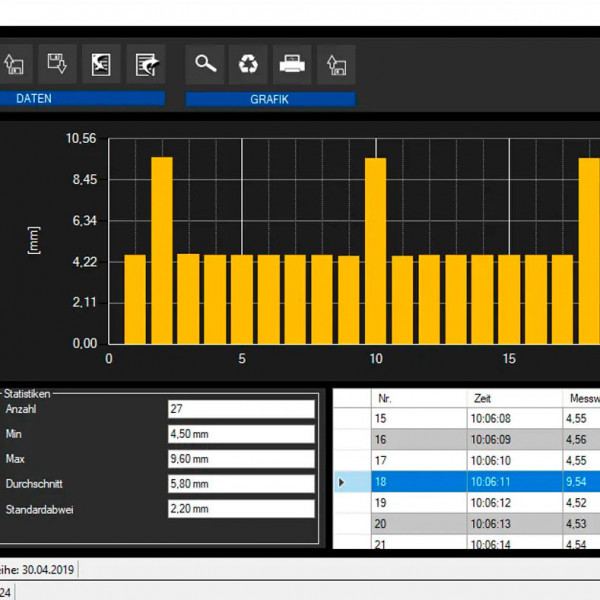

Yes. The device includes non-volatile internal memory for data storage and supports Bluetooth printing as well as USB 2.0 data transfer.

What are the main applications of this thickness gauge?

The PCE-TG 300-NO7 is ideal for industrial maintenance, quality control, corrosion inspection, tank and pipe testing, metallic component analysis, and non-destructive measurement on technical parts.
