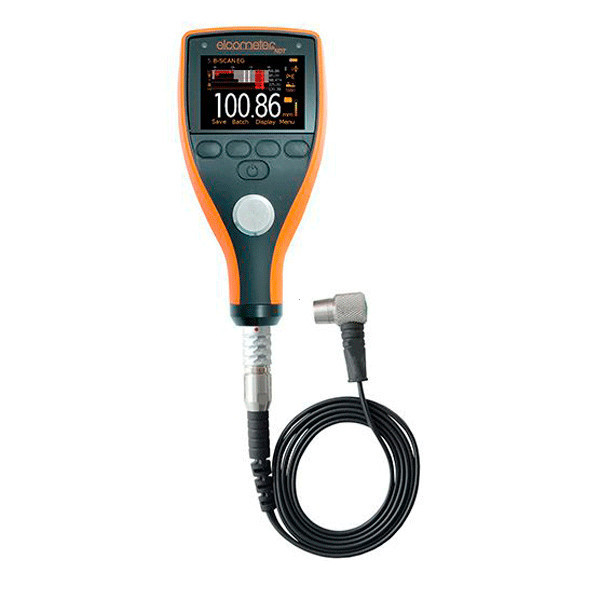

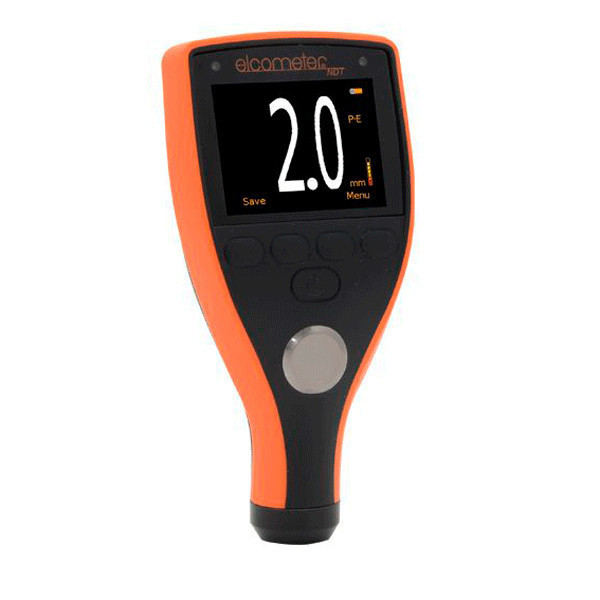

Ultrasonic Material Thickness Gauge Elcometer MTG6-TXC

MTG6DL-TXC

New product

Material Thickness Gauge

The Elcometer MTG Ultrasonic Thickness Gauges combine accuracy, speed and versatility to measure material thickness and sound velocity on virtually any substrate. Ideal for quality control, predictive maintenance, corrosion inspection and on-site verification.

P-E E-E VM

More details

1 930,00€ tax excl.

Add to wishlist

More info

MTG6 Features

✅ Interface Echo (I-E), Echo-Echo (E-E) and Plastic Mode (PLAS) measurement modes
✅ Measurement range from 0.15 mm (0.006") to 25.40 mm (1.000")
✅ User-selectable measurement rate: 4, 8 or 16 readings per second
✅ User-selectable reading resolution: 0.1 mm (0.01") or 0.01 mm (0.001")
✅ Scan Mode
✅ Readings, Selected Statistics, Bar Graph & Run Chart
✅ Gauge memory: single sequential batch of up to 1,500 readings
✅ USB and Bluetooth® data output to ElcoMaster® and the ElcoMaster® Mobile App

With a choice of calibration options, measurement modes — including high-speed scan mode — display options and data logging, the MTG6 is ideal for taking readings across a wide range of coated and uncoated materials and for downloading data for further analysis and reporting.

In addition to all the features of the MTG2 and MTG4, the MTG6 includes extra calibration options: 2-Point, Velocity, and Known Thickness Value.

The MTG6 also offers Velocity Mode (VM), which is ideal for determining material or alloy homogeneity and establishing the correct sound velocity for calibration. For further information on measurement modes, see datasheet page 3.

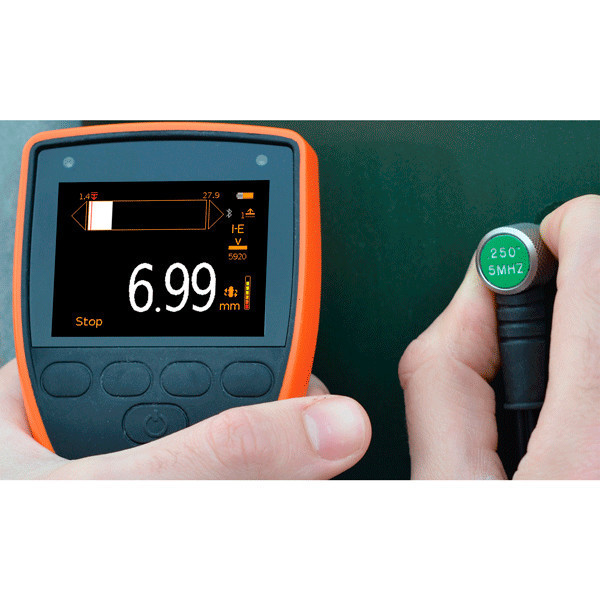

Using Scan Mode, readings can be taken at 16 Hz (16 readings per second) over a large surface area. When the transducer is lifted from the surface, the average, lowest and highest thickness values are displayed, making Scan Mode ideal for assessing a sample’s overall uniformity. For more information on Scan Mode, see datasheet page 6.

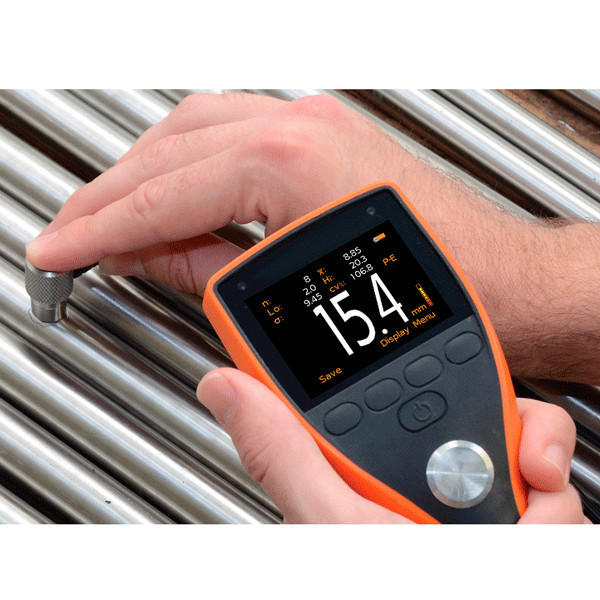

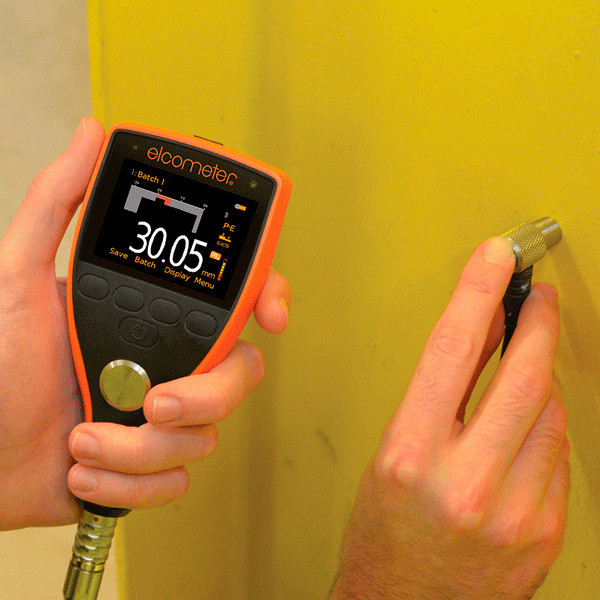

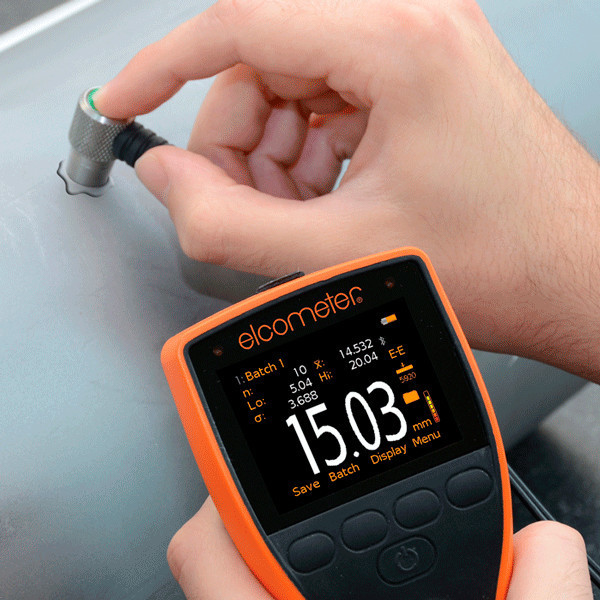

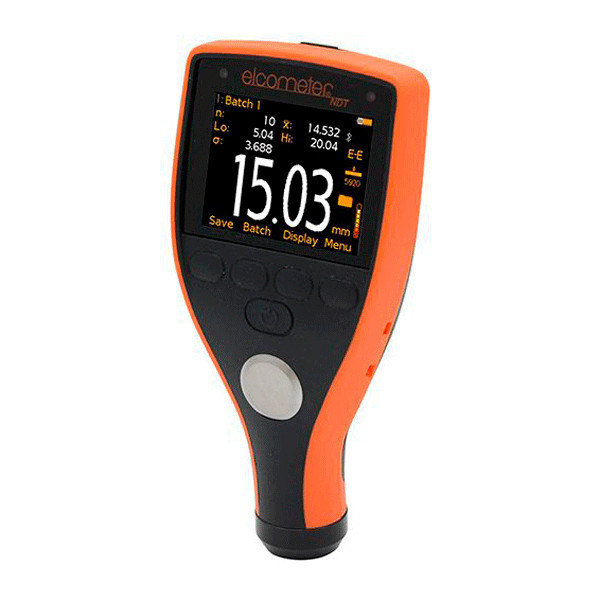

With a user-configurable display, users can choose to view readings, statistical information, a bar graph — an analogue representation of the current reading along with the highest (Hi), lowest (Lo) and average (x) values — or a run chart, showing the trend of the last 20 readings. For further information on display options, see datasheet pages 6 and 7.

The MTG6 includes a single-batch gauge memory capable of storing up to 1,500 readings. Compatible with both ElcoMaster® and the ElcoMaster® Mobile App, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ devices for further analysis and reporting.

The Elcometer MTG4 material thickness gauge complies with the following standards:

✅ ASTM E797
✅ EN 14127
✅ EN15317

Why Choose the MTG Range

  • Smart: configurable pass/fail limits (audible and visual alerts) per reading or per batch.
  • Accurate: multiple calibration options (Zero, 1-Point, 2-Point, pre-defined materials) and an integrated zero disk.
  • Versatile: measures uncoated and coated surfaces using the Echo Echo ThruPaint™ mode up to 2 mm.
  • Productive: Scan Mode up to 16 Hz, storage for up to 100,000 readings (MTG8) and USB/Bluetooth® connectivity with ElcoMaster®.
  • Robust: impact-, dust- and splash-resistant construction (equivalent to IP64) with a 2.4" TFT display.
  • Connected: USB/Bluetooth® to ElcoMaster® (PC, iOS & Android) — for professional analysis and reporting.

Typical Applications

Pipe and tank inspection, corrosion monitoring, metal structures, composites, plastics and engineering materials, through-coating thickness verification, industrial maintenance, oil & gas, automotive, marine and energy sectors.

Specifications & Model Comparison

CodeCertificate
1 Ranges depend on material and transducer. 2 Typical values under controlled conditions. 3 Approximate; varies with usage and temperature.
Gauge onlyComplete with 5 MHz ¼” right-angle dual element transducerDescriptionYes
MTG2-TXCElcometer MTG2 — Ultrasonic Material Thickness GaugeYes
MTG4MTG4-TXCElcometer MTG4 — Ultrasonic Material Thickness GaugeYes
MTG6DLMTG6DL-TXCElcometer MTG6DL — Ultrasonic Material Thickness GaugeYes
MTG8BDLMTG8BDL-TXCElcometer MTG8BDL — Ultrasonic Material Thickness GaugeYes
Model Comparison
ModelMTG2MTG4MTG6MTG8
Measurement Range1
Pulse Echo (PE)0.63 – 500 mm (0.025 – 19.999”)0.63 – 500 mm (0.025 – 19.999”)0.63 – 500 mm (0.025 – 19.999”)0.63 – 500 mm (0.025 – 19.999”)
Echo Echo ThruPaint™ (EE)—2.54 – 25.4 mm (0.100 – 1.0”)2.54 – 25.4 mm (0.100 – 1.0”)2.54 – 20.00 mm (0.100 – 0.787”)
Velocity Mode (VM)—1,250 – 10,000 m/s (0.0492 – 0.3937 in/μs)1,250 – 10,000 m/s (0.0492 – 0.3937 in/μs)1,250 – 10,000 m/s (0.0492 – 0.3937 in/μs)
Measurement Accuracy2
Pulse Echo (PE)±0.1 mm (0.63–19.99 mm); ±0.5% (20.00–500.00 mm)±0.1 mm (0.63–19.99 mm); ±0.5% (20.00–500.00 mm)±0.05 mm (0.63–9.99 mm); ±0.5% (10.00–500.00 mm); ±0.004” (0.025–0.393”); ±0.5% (0.394–20.00”)±0.05 mm (0.63–9.99 mm); ±0.5% (10.00–500.00 mm); ±0.004” (0.025–0.393”); ±0.5% (0.394–20.00”)
Echo Echo ThruPaint™ (EE)—±0.1 mm (2.54–25.4 mm)±0.05 mm (2.54–9.99 mm); ±0.5% (10.00–20.00 mm); ±0.004” (0.100–0.393”); ±0.5% (0.394–0.787”)±0.05 mm (2.54–9.99 mm); ±0.5% (10.00–20.00 mm); ±0.004” (0.100–0.393”); ±0.5% (0.394–0.787”)
General
Operating temperature-10 to 50 °C (14 to 122 °F)
Power supply2 × AA batteries
Battery life3Alkaline: 15 h | Lithium: 28 h
Gauge weight210 g (7.4 oz) — with batteries, without transducer
Gauge dimensions145 × 73 × 37 mm (5.7 × 2.84 × 1.46”), without transducer
Package Contents
MTG2MTG2 gauge, 5 MHz ¼” right-angle dual element transducer, ultrasonic couplant, carry pouch, screen protector, wrist strap, 2 × AA, instructions, test certificate and 2-year warranty extension card.
MTG4MTG4 gauge, 5 MHz ¼” dual element transducer reference TXC5M00CP-4 (MTG4-TXC only), couplant, pouch, screen protector, wrist strap, 2 × AA, instructions, test certificate and 2-year warranty extension card.
MTG6MTG6 gauge, 5 MHz ¼” dual element transducer reference TXC5M00CP-4 (MTG6DL-TXC only), couplant, hard carry case, 3 × screen protectors, wrist strap, 2 × AA, instructions, calibration certificate, ElcoMaster® CD and USB cable.
MTG8MTG8 gauge, 5 MHz ¼” dual element transducer (MTG8BDL-TXC only), couplant, hard carry case, 3 × screen protectors, wrist strap, 2 × AA, instructions, calibration certificate, ElcoMaster® CD and USB cable.

Features — Model Comparison

FeatureMTG2MTG4MTG6MTG8
1 Requires Internet connection. 2 Standard 1-year warranty, free extension to 2 years within 60 days of purchase. 3 Default scan mode: 16 Hz. 4 Material and transducer dependent.
Easy-to-use multilingual menu structure✓✓✓✓
Tough, impact, water and dust resistant (IP64 equivalent)✓✓✓✓
Bright colour display with permanent backlight✓✓✓✓
Ambient light sensor with adjustable brightness✓✓✓✓
2.4" (6 cm) scratch/solvent-resistant TFT display✓✓✓✓
Large tactile buttons with positive feedback✓✓✓✓
USB power (via PC)✓✓✓✓
Software updates1 via ElcoMaster®✓✓✓✓
2-year gauge warranty2✓✓✓✓
Limits: up to 40 audible/visual pass/fail warnings———✓
Measurement Modes
Pulse Echo (PE)✓✓✓✓
Echo Echo ThruPaint™ (EE)—✓✓✓
Velocity Mode (VM)——✓✓
Measurement Rate
Readings per second4 Hz4 Hz4, 8, 16 Hz34, 8, 16 Hz3
Thickness Range4
PE 0.63–500 mm (0.025–19.999")✓✓✓✓
EE 2.54–25.4 mm (0.100–1.0")—✓✓—
Units & Indicators
Units: mm or inches✓✓✓✓
m/s, in/μs——✓✓
Repeatability / stability indicator✓✓✓✓
Display Modes
Reading✓✓✓✓
Selected statistics——✓✓
Scan bar graph——✓✓
Run Chart——✓✓
Readings & Differential———✓
B-Scan (cross-sectional view)———✓
Selectable Resolution
Low: 0.1 mm; 0.01"; 10 m/s; 0.001 in/μs✓✓✓✓
High: 0.01 mm; 0.001"; 1 m/s; 0.0001 in/μs——✓✓
Statistics
n, mean x̄, standard deviation σ——✓✓
Minimum (Lo) / Maximum (Hi)——✓✓
Low/High limit value———✓
Reading range / Nominal value———✓
# of readings below low limit / above high limit———✓
Calibration Options
Zero (integral zero disc)✓✓✓✓
1-Point—✓✓✓
2-Point——✓✓
39 preset materials / Factory reset—✓ / ✓✓ / ✓✓ / ✓
Velocity mode / Known thickness——✓ / ✓✓ / ✓
Calibration Features
Calibration lock (optional PIN) / Calibration test——✓ / ✓✓ / ✓
Calibration memories (3 programmable) / Out-of-cal warning——— / —✓ / ✓
Data Logging
Number of readings / Number of batches— / —— / —1,500 / 1100,000 / 1,000
Sequential batches / Grid batches / Fixed batch size with linking— / — / —— / — / —✓ / — / —✓ / ✓ / ✓
“obst” entry / Delete last reading— / —— / —— / ✓✓ / ✓
Date/time stamp / Review–clear–delete batches / Alphanumeric names / Review graph— / — / — / —— / — / — / —✓ / ✓ / — / —✓ / ✓ / ✓ / ✓
Data Output & Transducer
USB to PC / Bluetooth® to PC, Android™, iOS / ElcoMaster® software✓ / — / —✓ / — / —✓ / ✓ / ✓✓ / ✓ / ✓
Dual element transducer / Auto recognition / V-path correction✓ / ✓ / ✓✓ / ✓ / ✓✓ / ✓ / ✓✓ / ✓ / ✓

Connectivity & Software

Compatible with ElcoMaster® (PC and iOS/Android App). Transfer readings via USB or Bluetooth®, analyse statistics, and generate professional reports for easy sharing with teams and clients.
