Earth Ground Resistance Tester PCE-ERT 10
PCE-ERT 10
New product
Earth Ground Resistance Tester PCE-ERT 10

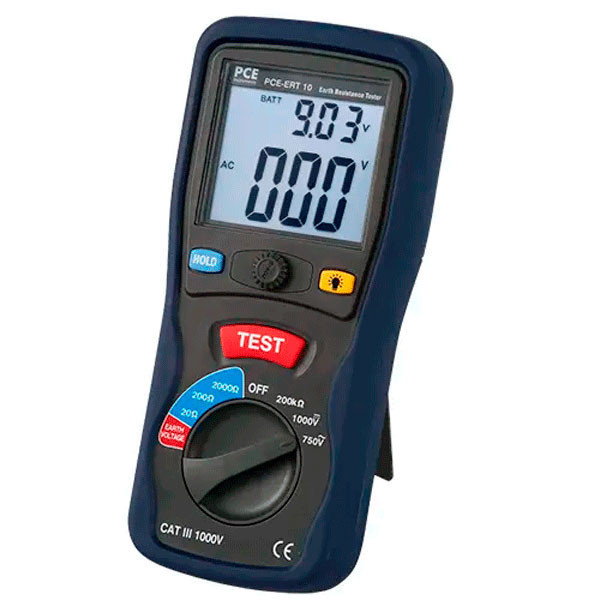

The PCE-ERT 10 Ground Resistance Tester is a high-precision handheld instrument designed for fast, reliable and user-friendly earth resistance measurements. Using the professional three-wire method, it enables accurate readings up to 2000 Ω, making it ideal for electrical installers, maintenance teams and field technicians.
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Product Description
Its practical zero adjustment rotary switch allows the operator to calibrate the reference point before each measurement, ensuring optimum accuracy. The device also provides soil voltage measurement, AC/DC voltage measurement and resistance measurement up to 200 kΩ, offering broad versatility in demanding electrical environments.
The large backlit LCD display ensures excellent readability, even in poorly lit conditions, and shows the current battery status at all times. Included in the delivery are test leads, ground rods, batteries and a convenient carrying case to protect and organize all accessories.
Main Features
- Professional three-wire measurement method
- Three measurement ranges up to 2000 Ω
- Earth voltage measurement up to 200 V
- Measures AC/DC voltage
- Zero adjustment for improved accuracy
- Continuous battery status indication
- Includes ground stakes, test leads, batteries and carrying case
Technical Specifications
| PCE-ERT 10 Ground Tester Specifications | |
|---|---|
Measurement Ranges | Earth resistance: 20 Ω / 200 Ω / 2000 Ω Earth voltage: 200 V DC voltage: 1000 V AC voltage: 750 V (40–400 Hz) Resistance: 200 kΩ |
Resolution | Earth resistance: 0.01 Ω / 0.1 Ω / 1 Ω Earth voltage: 0.1 V DC voltage: 1 V AC voltage: 1 V Resistance: 0.1 kΩ |
Accuracy | Earth resistance: ±(2 % + 10 dgt) / ±(2 % + 3 dgt) Earth voltage: ±(3 % + 3 dgt) DC voltage: ±(0.8 % + 3 dgt) AC voltage: ±(1.2 % + 10 dgt) Resistance: ±(1 % + 2 dgt) |
Sampling Rate | 2.5 / second |
Display | Backlit LCD |
Power Supply | 6 x AA batteries (1.5 V) |
Environmental Conditions | 0–40 ºC / <80% RH |
Dimensions | 200 x 92 x 50 mm |
Weight | 700 g |
Standards | IEC10101, CAT III 1000 V |
Delivery Contents
- 1 x PCE-ERT 10 Ground Tester

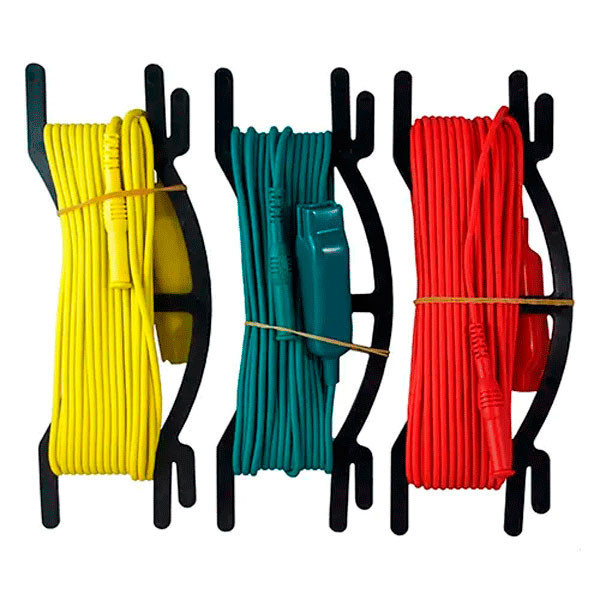

- 1 x Set of test leads

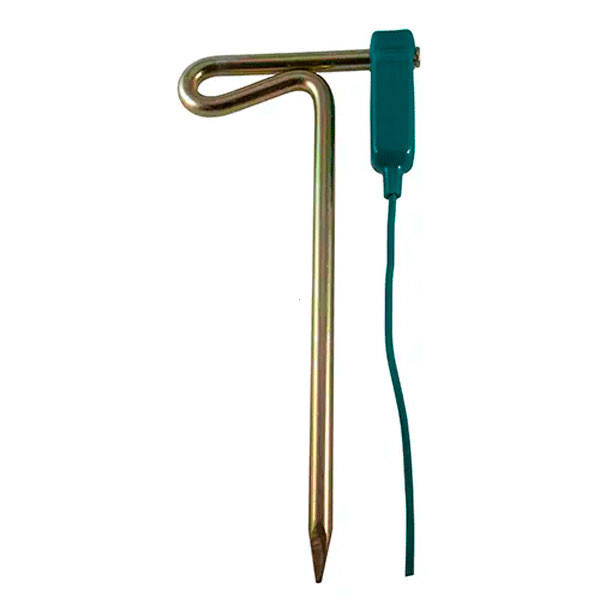

- 2 x Ground stakes
- 6 x Batteries

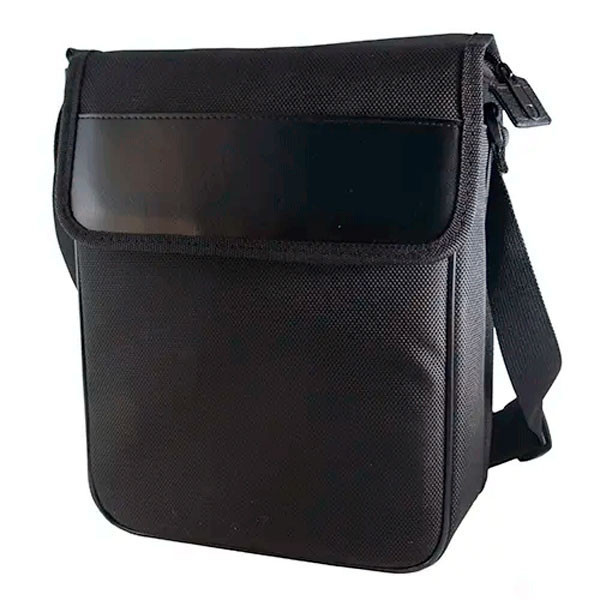

- 1 x Carrying case
- 1 x User manual
