Earth Tester - Earth Resistance Meter PCE-ECT 50

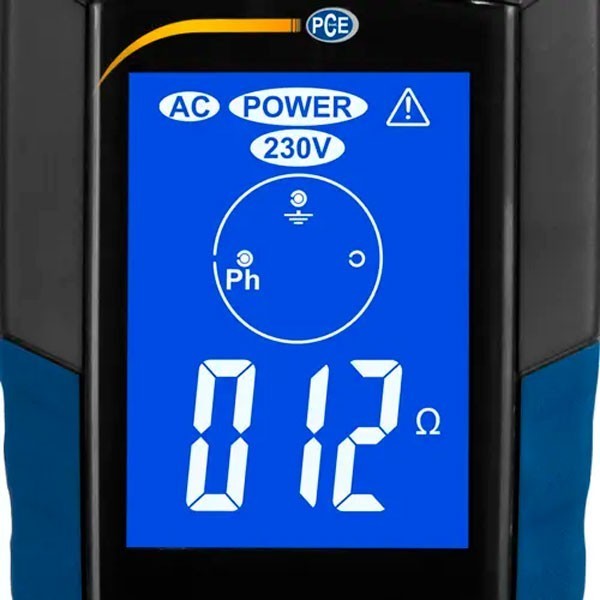

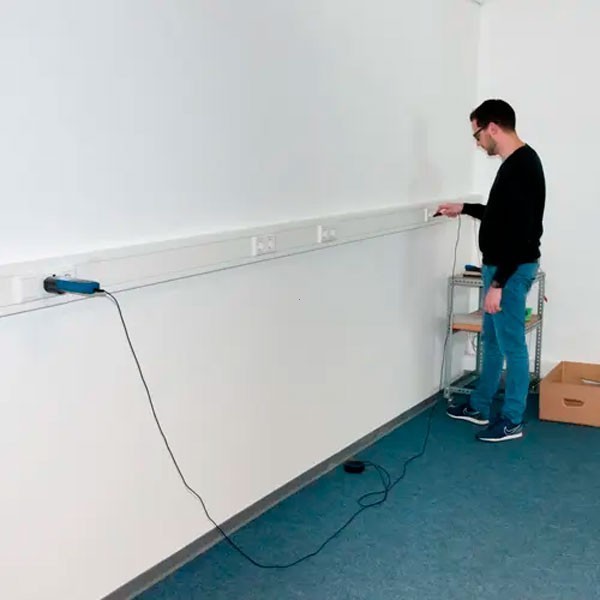

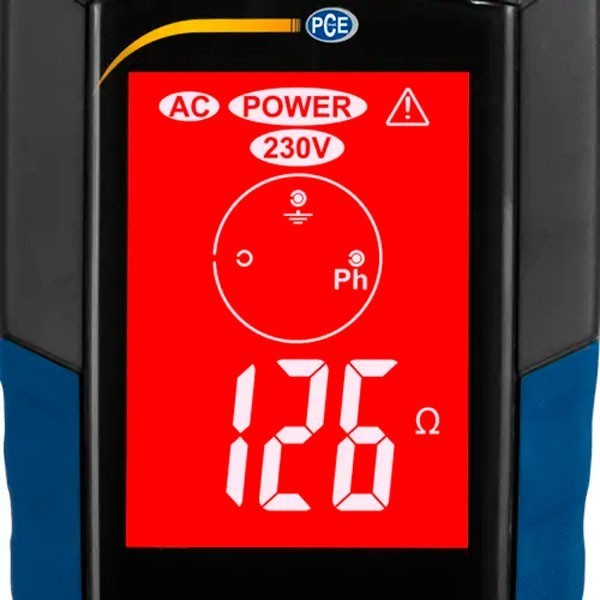

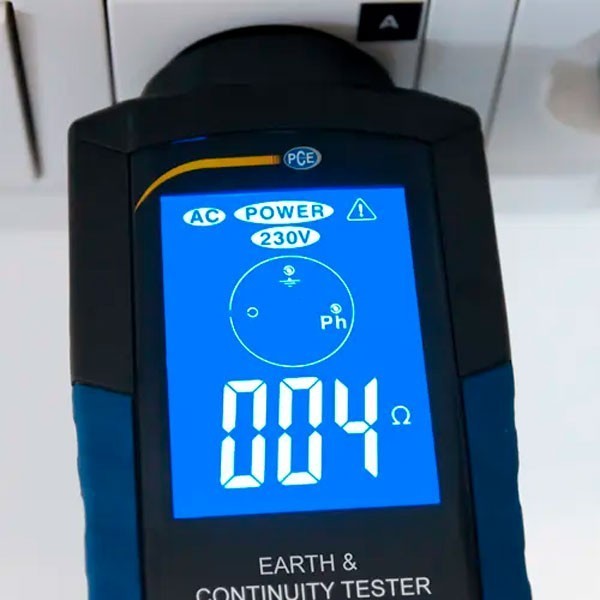

Equipped with a large, backlit multicolor LCD, the tester provides clear readings and visual status feedback of the electrical installation: blue indicates a correct installation, while red signals a fault. The main unit plugs directly into a socket, and the included safety probe is connected via a 7-meter cable, allowing for flexible and convenient use.

Key Features

✅ Dual-color LCD with backlight for easy reading
✅ High measurement accuracy
✅ Ergonomic and portable design
✅ Installation Category: CAT III
✅ Protection rating: IP40 / IK06
✅ Approx. 7 m test cable length
✅ Visual indication of installation status

Technical Specifications

• Measurement Principle: Continuity and earth resistance measurement
• Measurement Range: 0 to 2000 Ω
• Accuracy: ± (3% + 3 digits) for 0 to 200 Ω at 23 °C ±5 °C
• Display: Dual-color backlit LCD
• Operating Voltage: 230 V AC (Ph/N) -10% / +6%
• Operating Frequency: 50 / 60 Hz
• Standards Compliance: IEC 61010-1 / EN 61557-4 / Class II / IP40 / IK06
• Installation Category: CAT III
• Operating Temperature: -15 °C to +45 °C
• Storage Temperature: -25 °C to +70 °C
• Dimensions: (W x L x H) 72 x 210 x 50 mm
• Weight: 340 g
• Test Cable Length: Approx. 7 m

Delivery Contents

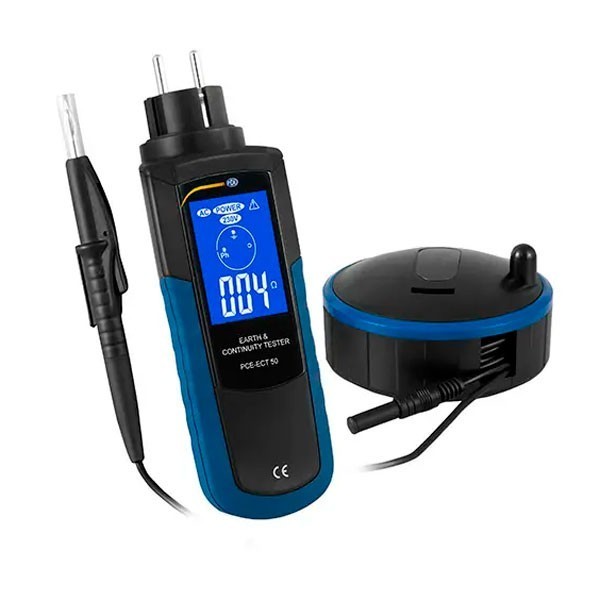

✅ 1 x PCE-ECT 50 Earth Resistance Tester
✅ 1 x Probe with 7 m test cable
✅ 1 x User Manual
