O₂ Analyser / air oxygen meter (formerly G 1690)

Reference: ECO 410T-MAX

Condition: New product

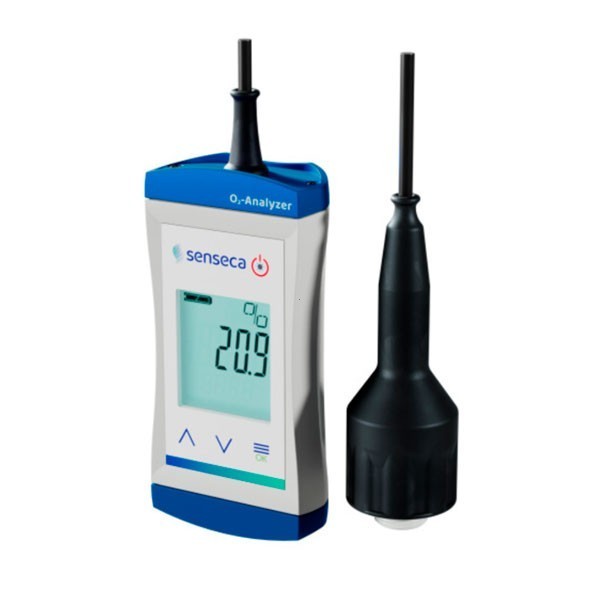

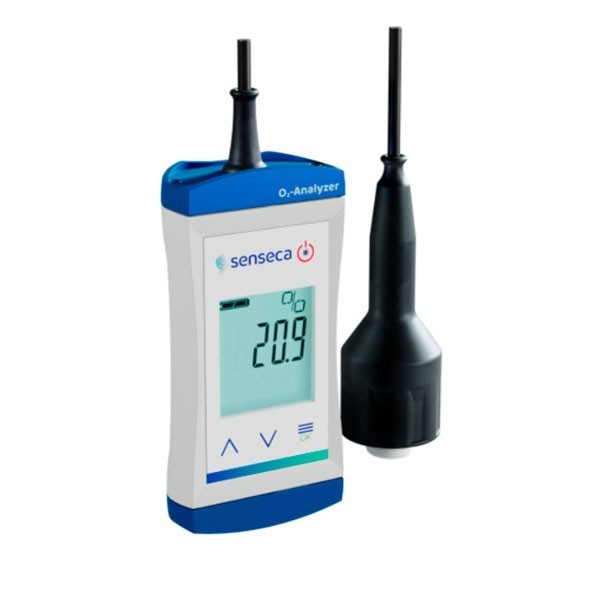

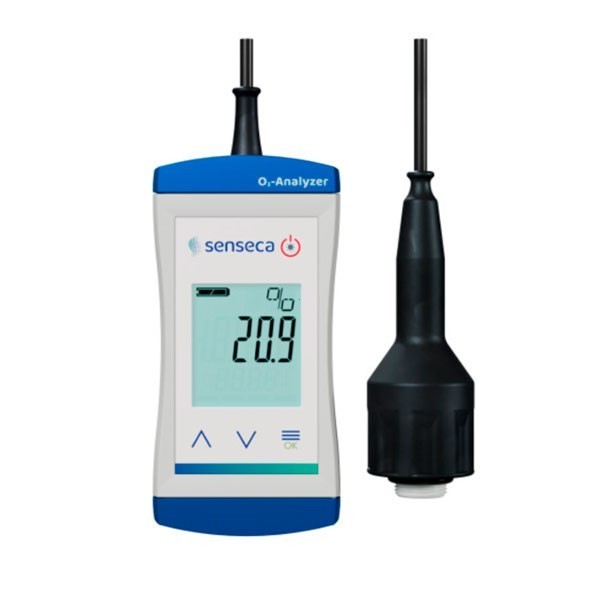

ECO 410(T)-MAX – O₂ Analyzer / Air Oxygen Meter

Brand: Senseca

High accuracy, durability and outstanding value for reliable oxygen measurements in a wide range of applications.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Main Features and Benefits

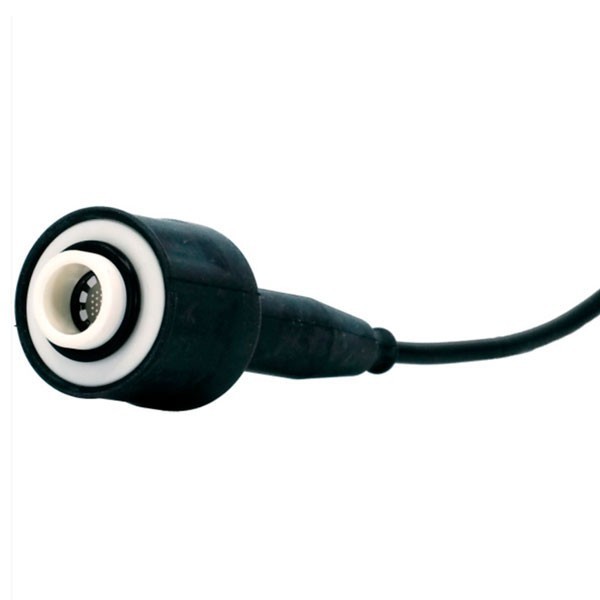

The ECO 410 / 410T is designed with a focus on essential functions for dependable O₂ concentration measurement in gases. The high‑performance sensors GOEL 370 and GOEL 381, ideal for humid environments, ensure accuracy, ergonomics and water protection, enhanced by a backlit display for clear readings in any lighting conditions.

✅ Ideal for oxygen measurements in inert gases and other technical environments.
✅ Robust and durable construction with IP65/IP67 protection class.
✅ Three‑line backlit LCD display for excellent visibility.
✅ Outstanding price–performance ratio for immersion measurements and additional O₂ control.

Attention: This device is intended as an additional control instrument and does not replace a certified device or approved methods for creating safe gas mixtures.

Main Applications

Thanks to its robustness and accuracy, the ECO 410(T)-MAX is widely used in:

✅ Oxygen monitoring in industrial environments.
✅ Process control with inert gases.
✅ O₂ measurements in humid or submerged conditions.
✅ Sports diving version, with MOD calculation for nitrox up to 36%.

Technical Specifications

Feature	Details
Protection Class	IP65 / IP67 (sensor IP54)
Measurement Rate	1 measurement/second
Power Supply	2 AA batteries (included), 0.8 mA consumption (2.8 mA with backlight)
Weight	Approx. 175 g (with batteries and sensor)
Housing Material	Impact‑resistant ABS, secure battery compartment
Measuring Range	0.0 – 100.0 % vol. O₂
Response Time	90% in <10 s (depending on temperature)
Operating Conditions	-20 °C to +50 °C; 0–95% RH (short‑term condensation possible)
Accuracy	< 35% vol. O₂: ±0.25% vol. O₂ 35–100% vol. O₂: ±2%*(measured value – 20.9% vol.)
Sensor Lifetime	> 3 years at 20.9% vol. O₂
Dimensions	108 × 54 × 28 mm (without cable and sensor)

Why Choose the ECO 410(T)-MAX?

Whether for industrial applications, inert gas measurements or field use, the ECO 410(T)-MAX delivers the perfect combination of cutting‑edge technology, durability and affordability. A smart investment for anyone who values safety and precision in oxygen measurement.
