Product Description

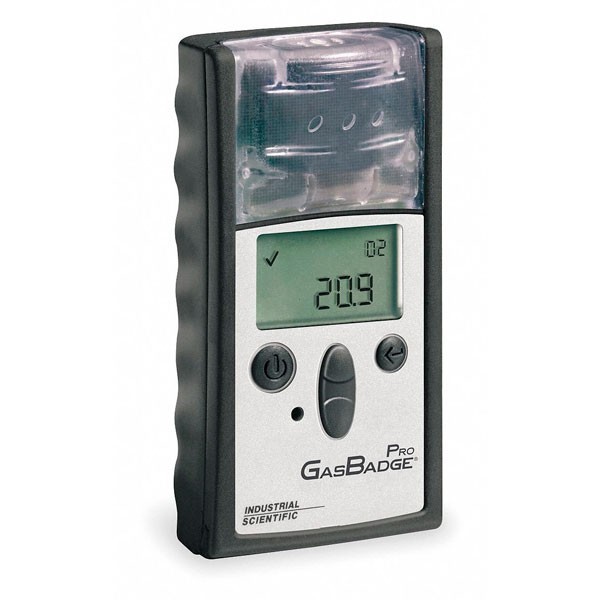

The GasBadge® Pro by Industrial Scientific is a high-performance portable gas monitor engineered for lifetime protection against oxygen-deficient environments. Rugged and reliable, it integrates intelligent sensor technology, infrared communication, and market-leading safety features to ensure maximum operational safety.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

With 1-year data logging, integrated STEL and TWA readings, and automatic storage of the last 15 alarm events, this device simplifies compliance and enhances workplace safety. Its shock-resistant housing and intuitive 4-button interface make it ideal for demanding industrial environments.

Key Features

Oxygen (O₂) monitoring from 0 to 30% with 0.1% increments
Replaceable smart sensors
Infrared communication for calibration and data transfer
Up to 1 year of data logging capacity
Integrated STEL and TWA exposure monitoring
Automatic logging of the last 15 alarms
Impact-resistant, waterproof, shockproof, and RF-shielded enclosure
Compatible with Docking Station™, Datalink, and infrared printer
User-friendly 4-button interface
Lifetime warranty included
Sensor options available for oxygen and toxic gases (CO, H₂S, NO₂, SO₂, Cl₂, ClO₂, PH₃, NH₃, HCN, H₂)

Applications

Oxygen monitoring in confined or explosive environments
Use in areas with explosion risks or hazardous atmospheres
Industries: water treatment, laboratories, combustion processes, refineries, chemical manufacturing, and harsh industrial settings
Personal protection in both indoor and outdoor environments

Technical Specifications

Detection Range	0–30% Volume (0.1% increments)
Battery	CR2 3V lithium, user-replaceable, approx. 2,600 h runtime
Dimensions	94 × 50.8 × 27.9 mm (3.7" × 2" × 1.1")
Weight	85 g
Operating Temperature	-40 °C to 60 °C
Humidity	0–99% RH (non-condensing)
Alarms	User-selectable high and low alarms with ultra-bright LEDs, 95 dB audible alarm, and vibrating alert
Event Logging	Continuously active. Stores the last 15 alarm events, including time since occurrence, duration, and peak reading. Event log can be viewed on PC or printed directly from the instrument via infrared printer.
Display	Custom LCD with graphic icons for ease of use Segmented display for direct gas readings Backlight for low-light conditions “Pass/Fail” display mode Peak reading indicator
Certifications	UL & cUL: Class I, Div 1, Groups A, B, C, D; T4 Class I, Zone 0, AEx ia IIC T4 CSA: Class I, Div 1, Groups A, B, C, D; T4; Ex ia IIC T4 ATEX: Intrinsically Safe: Ex ia I/IIC T4 Equipment Category & Group: II 1G; I M1 EMC: EN50270 Performance: O2 (EN50104); CO, H₂S (EN45544) (pending) IECEx: Ex ia I/IIC T4 ANZEx: Ex ia I/IIC T4 INMETRO: Ex ia I Ma; Ex ia IIC T4 Ga China EX: Ex ia I/IIC T4 KOSHA: Ex ia I/IIC T4
Warranty	Lifetime Warranty
Included Accessories	Suspension clip, stainless steel belt clip, calibration adapter, tubing, user manual
