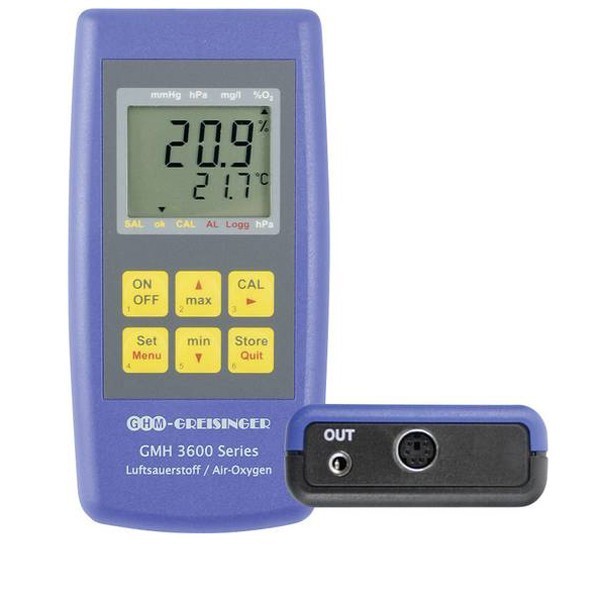

Precise Oxygen Measuring Device Senseca GMH 3692

Key Features:

• Measuring range Oxygen O₂: 0.0 to 100.0% O₂ (Gaseous)
• Measuring temperature range: -5,0 to +50°C
• Gama de medição pressão do ar: 10 até 1200 hPa
• Accuracy:
  • Oxygen: ±0,1% ±1 digit
  • Temperature: ±0,1°C ±1 digit
  • Air pressure: ±3 hPa or 0,1%
• Modern and functional housing
• Outstanding price/performance ratio
• Durable, long battery life
• 1 year guarantee
• For interchangeable sensors
• Max and Min function
• Hold function
• Calibration feature
• Easy to read LCD display 4-line display/overhead display at the push of a button
• Power off automatically
• Dust-proof, water-protected handheld measuring device in accordance with IP 65/67
• 9 V battery as well as additional d.c. connector for external 10.5 to 12 V direct voltage supply. (suitable power supply: GNG10/3000)
• Made in Germany

Monitoring of the oxygen amount in the air is, nevertheless, extremely important, since it is not always that harmless and too much oxygen in the air may indicate a dangerous situation. The measurement of oxygen is particularly important in the workplace monitoring and process control, medicine, food technology, ventilation, sport. We offer measuring devices and special sensors that can be used in wide applications.

APPLICATION:

Bio chemistry:
Oxygen monitoring in breeding chambers for cell cultures. Monitoring of fermenting process of fruits in fermentation plants etc.

Medicine:
Monitoring of oxygen concentration in respirators; checking of breathing, monitoring of oxygen concentration in incubators, oxygen tents, etc.

Food technology:
Monitoring of residual oxygen in packages (eg coffee, tea, etc.). Monitoring of oxygen content during production processes.

Air conditioning and ventilation technology:
Oxygen measurements, air quality monitoring, measuring of oxygen concentration in enclosed air conditioning systems, etc.

Sport:
Checking of oxygen content in compressed air bottles (diving, etc.).

Rating:
not suited for "underwater" -applications (rebreather, etc.)

See suitable Atmospheric Oxygen Sensores:

Air oxygen sensor, closed sensor GGO 381

The primary focus in the development of the new GMH3692 which place on the essential functions of the measurement technology. Pure measurement with a focus on precision, speed and reliability packaged in a compact housing distinguish an impressive price / performance ratio, Made in Germany.

The new handheld measuring devices so impress With Their ergonomic design, dust and water-protected design with IP 65/67.
