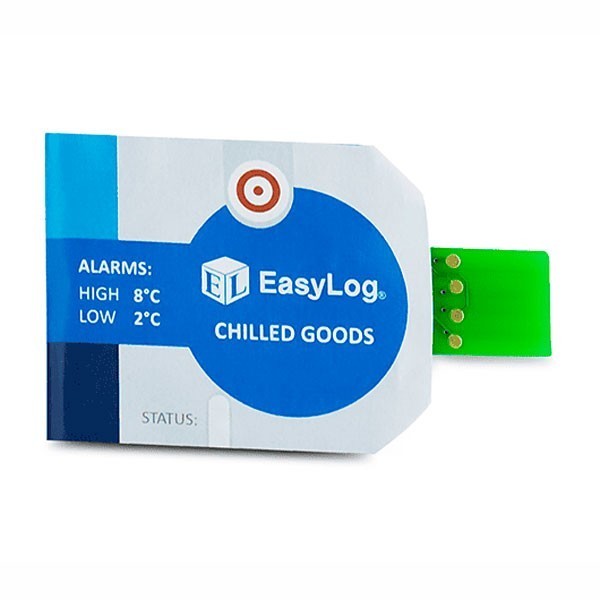

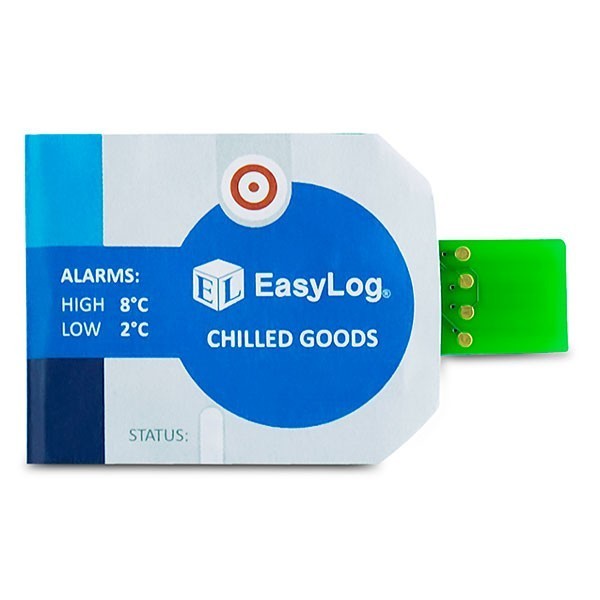

Lascar Cold Chain Logger Lascar EL-CC-1-001

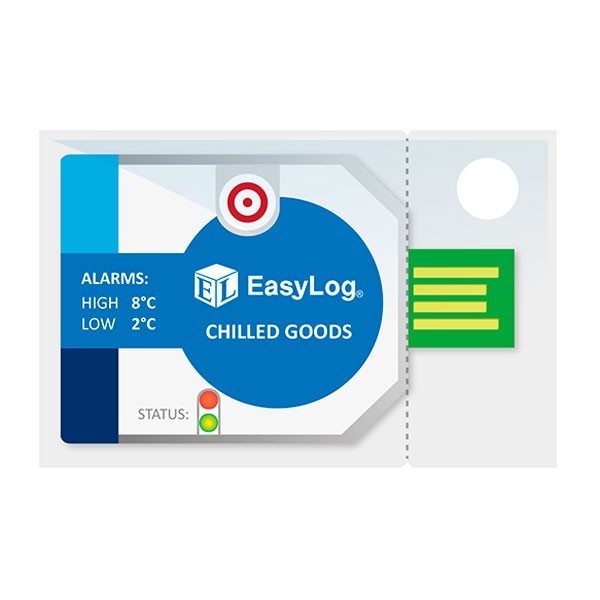

The Chilled Goods Cold Chain logger comes pre-configured for use - simply press the button to start logging. During a logging session, pressing the button will light up the status LEDs to give a quick indication as to whether the temperature has exceeded an alarm condition at any point.

Key Features:

• Range: -30 to +60°C (-22 to +140°F)
• Resolution: 0,5°C/°F
• Accuracy: 0,1°C (0,1°F)
• Alarms: 2°C and 8°C
• Logging interval: 10 minutes (220 days)
• Optimised for Chilled Goods Cold Chain monitoring
• No set-up required. One button press-to-start logging
• Pre-configured with appropriate sample rate and alarm thresholds, High 8°C, Low 2°C
• Reusable with 12+ months battery life
• Various export options including PDF, Microsoft Excel and JPEG

The data logger in card format, already configured and ready to use. It is specially designed for recording a “cold chain”, for example during the transport of products or for monitoring the ripening process of food products.

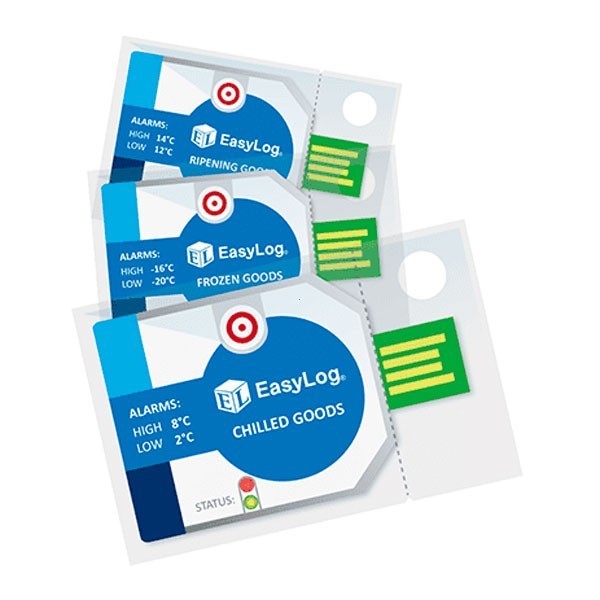

Available in different models, all with the recording interval already configured at the factory (so it is not possible to change it). The available models are already configured at the factory with specific alarms. Alarms cannot be modified.

The user only needs to press a button located on the data logger card itself to start recording measurements. When it is necessary to analyze the data, it will be necessary to connect the data logger to a USB port and through the software, EasyLog CC from Lascar, which you can download for free from our website.

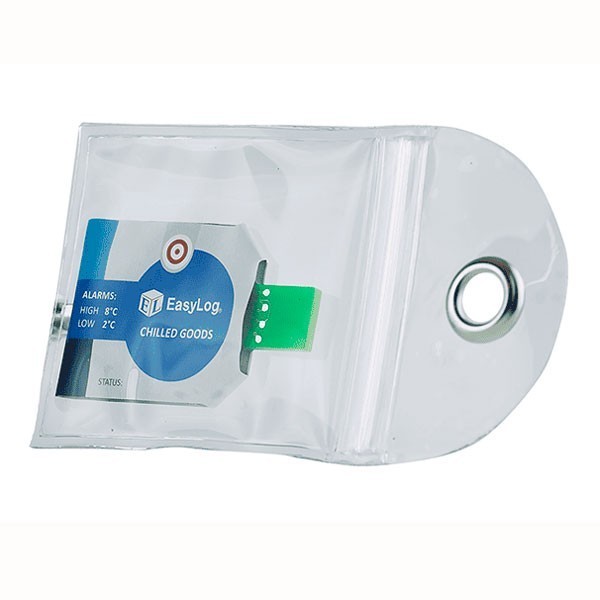

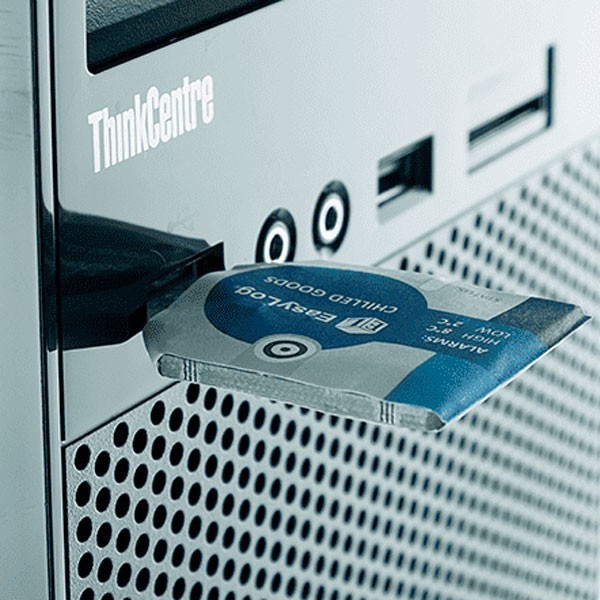

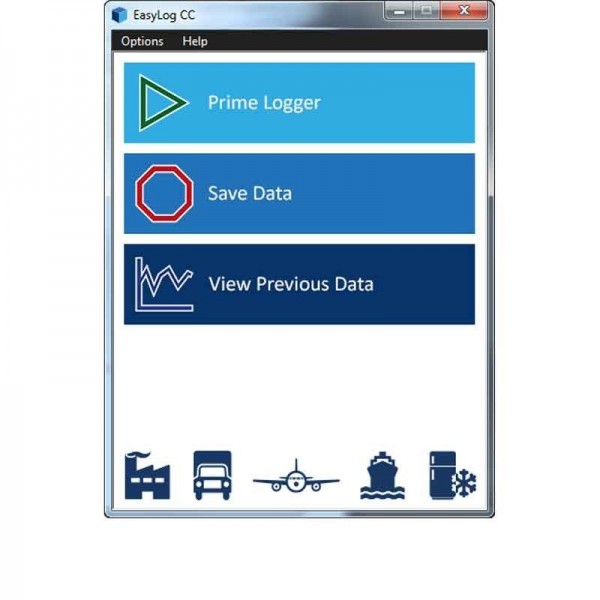

Once the session is complete, open the IP67 rated plastic bag to access the USB connector and connect it to your PC. Use the free CC EasyLog software for Windows to download and graph the data, then if you want to reuse it just press the start key.

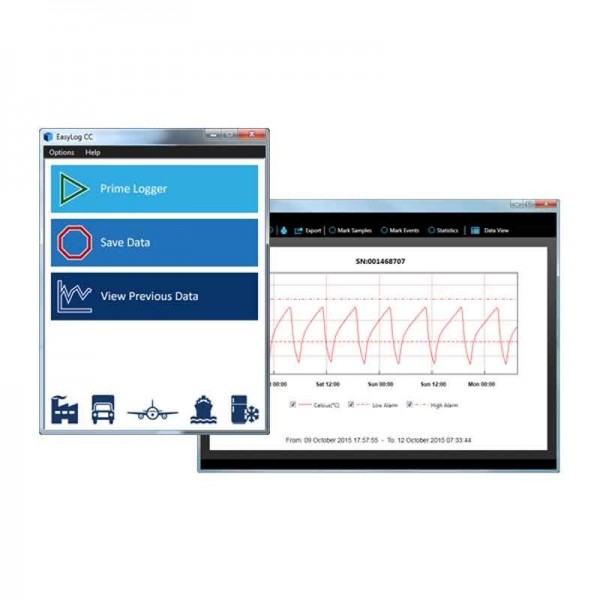

The software downloads data, and you can view the records made in a graph, print or export the data to Excel or create a PDF file of the respective records.

Note: Plastic bags are not included

WHAT IF I NEED A CUSTOM SETUP?
Do some wild fish varieties require different frozen storage conditions than farm-caught fish varieties? In response, we can create a custom logger with specific alarm settings and alarm delays based on your specific storage requirements.

Is there a custom configuration we could create for you? We can customize even for very small quantities. Contact us at emi@emi-lda.com

IP Rating

An IP rating, also known as "International Protection" or "Ingress Protection" rating, is a value assigned to a product that determines its susceptibility to ingress from solids and liquids. The first numeric digit relates to the level of protection against solid objects, and the second numeric digit indicates the level of protection against liquid ingress. Click for a table of IP Rating values.

TABLE OF IP RATING VALUES

IP65 - No ingress of dust (6); Protection from water ingress: Low pressure jets of water (5).
