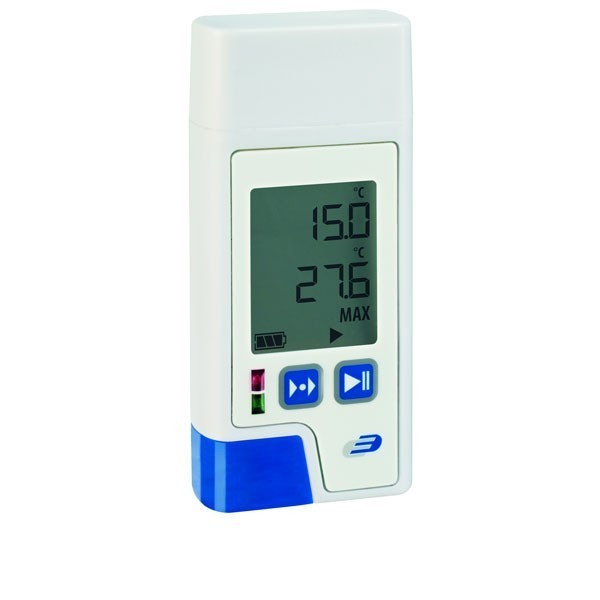

PDF data logger with display for temperature LOG200 Dostmann 5005-0200

Key Features:

• Temperature monitoring and motion sensor for shock recording
• Temperature
  • Range -40 to +70°C
  • Resolution 0.1°C,
  • Accuracy 0.5°C (0 to 60°C)  otherwise ±1°C
• Areas of application:
  • Health:
    • Hospitals
    • Pharmacies
    • Transport of drugs, blood
  • Food sector:
    • Restaurants
    • Hotels
    • Catering
    • Food industry
    • Food transport
  • Other sectors
    • Museums
    • Libraries
  • Other technical data
    • Memory capacity: 100000 readings
    • Visual and audible alarms if limits exceeded
    • Triple LCD display
    • Programmable from keypad or PC
    • Selectable data sampling rate
    • User programmable audible and visual alarms

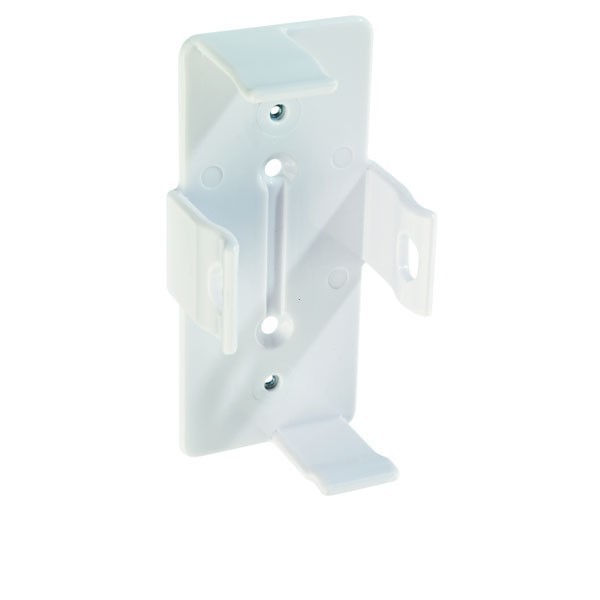

    • Wall, desktop, or tripod mount
    • Calibration optional
    • Complete with Windows® compatible software, USB interface,and batteries
• Other technical data
  • Temperature range: -40 to 70°C
  • High resolution 0.1°C, high accuracy ±0,5°C
  • Records up to 150000 readings
  • Visual and audible alarms if limits exceeded
  • Triple LCD displays
  • Programmable from keypad or PC
  • Selectable data sampling rate
  • User programmable audible and visual alarms
  • Wall mount
  • Calibration optional
  • Complete with Windows® compatible software, USB interface and batteries

Memory for 150.000 measurements, useable without software (default settings with 5 minutes interval), automatic PDF creation (no drivers required), optional software download), free adjustable recording interval 10 seconds up to 24 hours (via Software Log Connect), battery lifetime appr. 4 years (recording interval >15 minutes), status and alarm LEDs, defeatable display, reset table Max/Min values, time marking functions for measuring results, Motion sensor for shock recording e.g.: door or windows closing.

The LOG 200 is an Dostmann Temperature Data logger. Data logs up to 150000 readings. Featuring a USB interface for downloading to a PC or automatic PDF creation (no drivers required). The bottom status line shows battery capacity, logger mode and alarm status. The green LED flashes every 30 seconds during recording. The red LED is used to display limit alarms or status
messages (battery change ...etc.). The logger also has an internal buzzer that supports the user interface.

For operation take out the instrument from the packaging, remove the display foil. The logger is already preset and ready for start. It can be used immediately without any software!

By pressing any button or moving the instrument before first operation the instrument displays FS (factory setting) for 2 seconds, afterwards measurements are displayed for 2 minutes. Then the instrument display switch off. Repeated key hit or movement reactivates the display.

Power-Save Mode for Display
The Power-Save Modes is activated as a standard. The display switches off when for 2 minutes no button has been pressed or the instrument has been not moved. The logger is still active, only the
display is switched off. The internal clock runs.

Mode-Button: EXT, AVG, MIN, MAX
By pressing the Mode-button the respective Average (AVG)-, Minimum (MIN)- and Maximum (MAX)
measurements of each measurement channel will be displayed.

Note: If you select Accredited Calibration Certificate (IPAC) when purchasing this product, click the Product Customization TAB and fill in the second field (TEXT - Required temperature calibration points.) with the respective required points or simply attach a copy of a calibration certificate.

Our series consists of a comprehensive range of portable data-loggers utilising the latest in electronic technology.

We offer the customer the choice of either blind data-loggers or data-loggers with a LCD display. Other options include internal and external temperature sensor/probe The external probes can be either fixed or detachable.

IP Rating

An IP rating, also known as "International Protection" or "Ingress Protection" rating, is a value assigned to a product that determines its susceptibility to ingress from solids and liquids. The first numeric digit relates to the level of protection against solid objects, and the second numeric digit indicates the level of protection against liquid ingress. Click for a table of IP Rating values.

Table of IP rating values

IP65 - No ingress of dust (6); Protection from water ingress: Low pressure jets of water (5).
