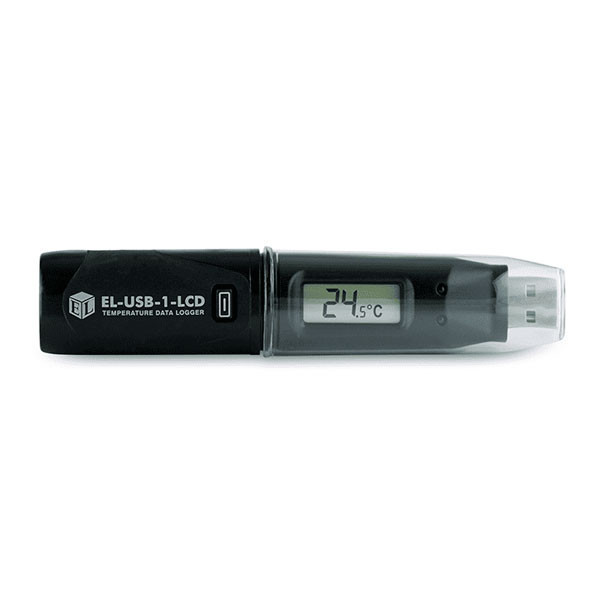

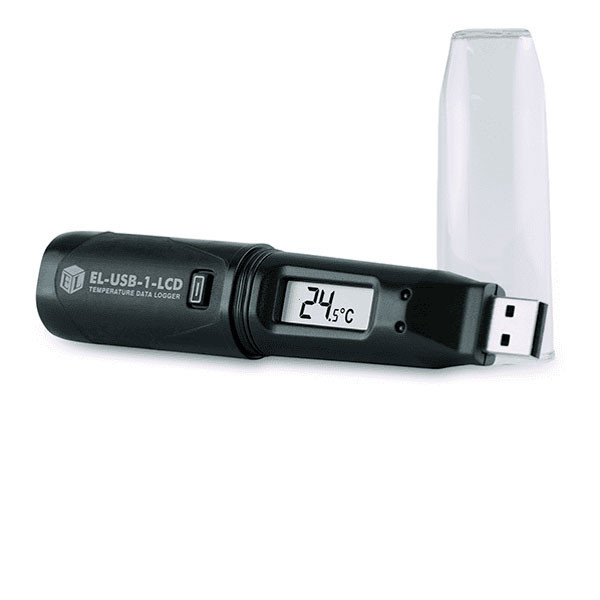

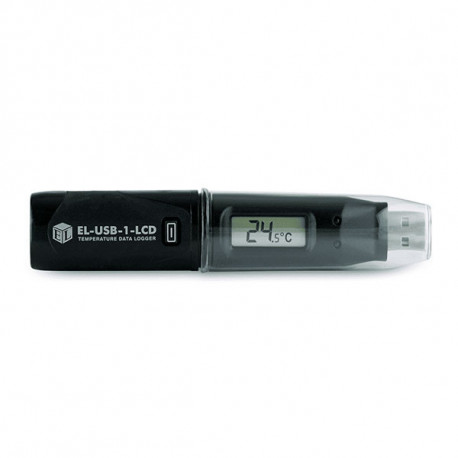

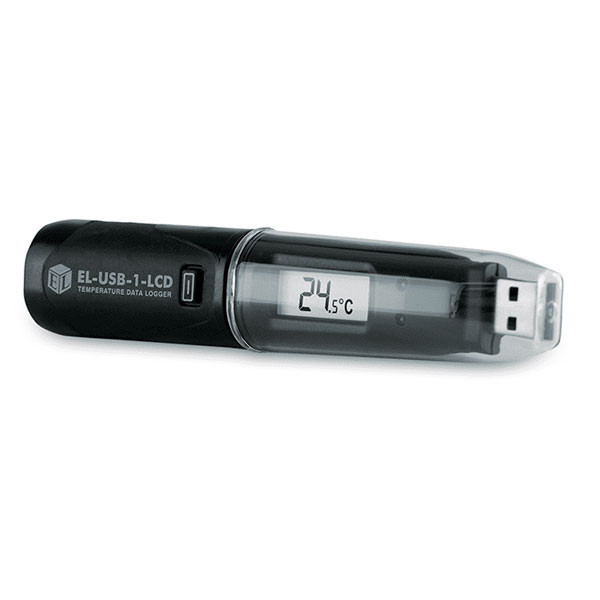

EasyLog EL-USB-1-LCD | USB Temperature Data Logger with LCD Screen

The EasyLog EL-USB-1-LCD is a compact and reliable USB temperature data logger designed for professional temperature monitoring and data traceability.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

EasyLog EL-USB-1-LCD | USB Temperature Data Logger with LCD Screen

The EasyLog EL-USB-1-LCD is a compact and reliable USB temperature data logger designed for professional temperature monitoring and data traceability. With a -35 to +80°C measurement range, memory for over 16,000 readings, and a high-contrast LCD display, it is an excellent solution for cold chain monitoring, storage areas, laboratories, healthcare environments, industrial processes, and quality control applications.

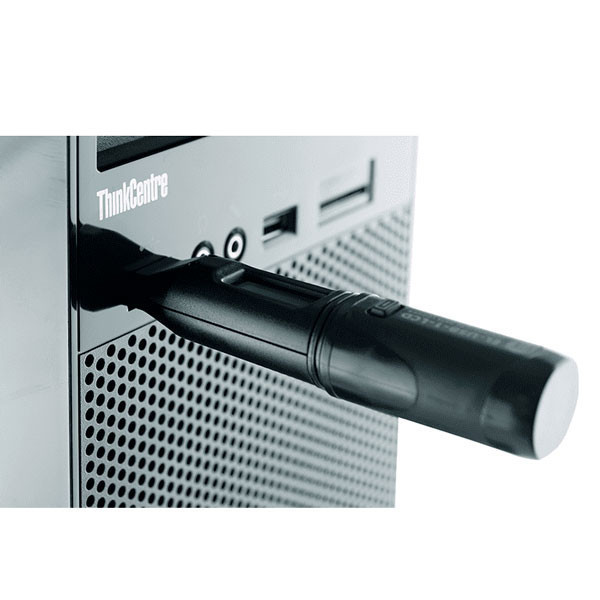

This temperature logger with LCD screen connects directly to a PC via USB and can be configured quickly using the free EasyLog software. Recorded data can be viewed, graphed, printed, and exported for deeper analysis, making it ideal for businesses that need dependable environmental monitoring, compliance support, and easy reporting.

Key benefits

Accurate temperature monitoring from -35 to +80°C for demanding environments.
Internal memory for 16,378 readings, ideal for long logging sessions.
Built-in LCD display to instantly review current, minimum, and maximum temperature values.
Simple USB setup with no additional interface required.
User-programmable alarm thresholds with red and green LED status indication.

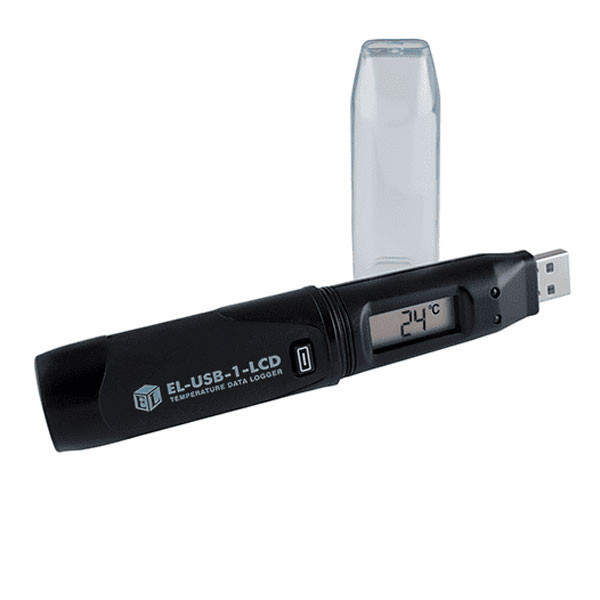

IP67 protection with cap fitted for resistance to water and dust ingress.
Up to 2 years of battery life for low-maintenance operation.

Recommended applications

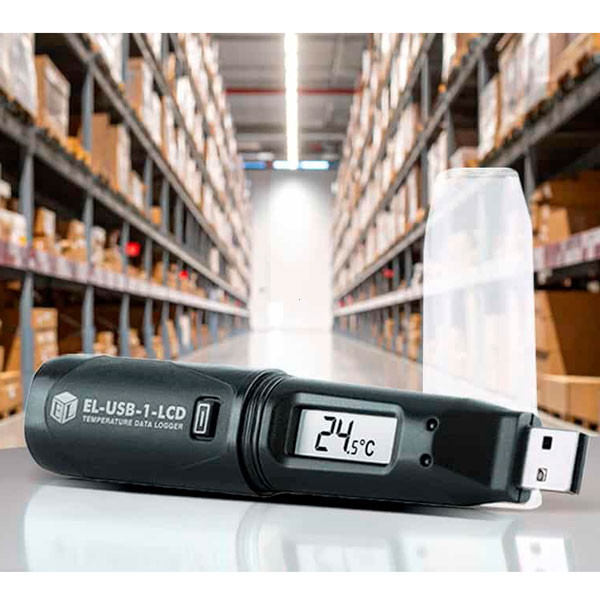

The EasyLog EL-USB-1-LCD is ideal for cold chain temperature monitoring, warehouses, refrigerated storage, transport and logistics, laboratories, pharmaceutical environments, hospitals, industrial equipment, environmental control, and process validation. It is especially valuable wherever local visual readings and downloadable historical temperature data are both essential.

Why choose the EasyLog EL-USB-1-LCD?

Combining ease of use, durability, free software, and on-device temperature display, this logger delivers a complete and cost-effective monitoring solution for professional users. Logging can start immediately, on a delayed schedule, or at the push of a button, making it flexible for a wide range of temperature recording tasks.

Technical specifications

Specification	Details
Model	EasyLog EL-USB-1-LCD
Product type	USB temperature data logger with LCD screen
Measurement range	-35 to +80°C (-31 to +176°F)
Internal resolution	0.5°C (0.5°F)
Accuracy	±0.5°C typical (overall error)
Memory capacity	16,378 readings
Logging interval	User selectable between 10 seconds and 12 hours
Start modes	Immediate, delayed, or push-to-start
Display functions	Current, minimum, and maximum temperature values
Alarms	User-programmable alarm thresholds
Status indicators	Red and green LEDs
Software	Free EasyLog software for setup, download, graphing, printing, and data export
PC connection	Direct USB connection
Environmental protection	IP67 with cap fitted
Operating temperature range	-35 to +80°C (-31 to +176°F)
Battery life	Up to 2 years (at 25°C, 1 minute logging rate, LCD on)
Battery type	1/2 AA lithium battery
Dimensions	120 x 25 x 22 mm
Included accessories	1/2 AA battery and wall mount clip

FAQ | Frequently Asked Questions

What is the EasyLog EL-USB-1-LCD used for?

The EasyLog EL-USB-1-LCD is designed to monitor, record, and store temperature data over time. It is ideal for warehouses, cold chain logistics, laboratories, pharmaceuticals, hospitals, and industrial process monitoring.

How many readings can this temperature data logger store?

This USB temperature data logger can store up to 16,378 readings, making it suitable for long-term monitoring without frequent data downloads.

How do I download and analyse the recorded data?

Simply plug the device directly into a PC USB port and use the free EasyLog software. Data can then be graphed, printed, and exported to other applications for advanced analysis and reporting.

What information does the LCD screen display?

The high-contrast LCD screen allows users to quickly view the current temperature as well as the minimum and maximum values recorded during the logging session.

Does this data logger include programmable alarms?

Yes. The logger features user-programmable alarm thresholds with clear red and green LED status indication, helping users detect temperature excursions quickly.

Is the EasyLog EL-USB-1-LCD water and dust resistant?

Yes. When the protective cap is fitted, the unit is rated IP67, providing strong resistance against water and dust ingress in demanding environments.
