Temperature USB Data Logger Lascar EL-SIE-1

Key Features:

TEMPERATURE

• Temperature measurement range: -18 to +55°C (-0.4 to +131°F)
• Temperature Resolution: 0.01°C
• Temperature Accuracy: ±0.3°C (±0.54°F) typical

OTHER TECHNICAL DATA

• EasyLog Cloud compatible
• -18 to +55°C (-0.4 to +131°F) temperature measurement range
• Stores over 1,000,000 readings (As per spec table)
• No software to install - configure using your normal web browser
• Use with a PC or Mac
• Display shows current, maximum and minimum readings
• Status and alarm indicators
• Data can be uploaded to the EasyLog Cloud
• LCD display shows current, maximum, minimum readings and status indicators
• Visual alarm functionality
• Logger and channel names
• Measurement units
• Logging rate and start mode
• Up to 16 separate alarms  (high/low/pre-alarm/cumulative)    with thresholds, delay and hold
• Display and LED indicator modes

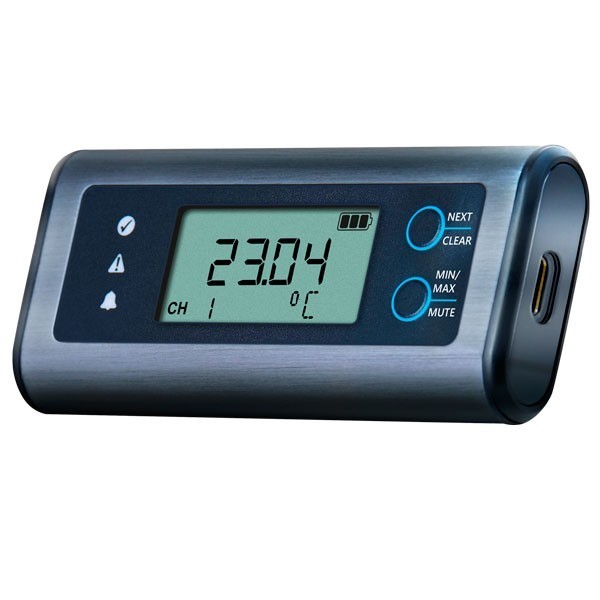

• High-contrast LCD shows current, maximum and minimum readings, as well as alarm and logger status

The commencement of logging can be immediate, push-to-start, time-delayed, or triggered by conditions. The device can be set to log temperature measurements between every 10 seconds and every 24 hours, with the memory capacity to store up to 1'000'000 data records. Once logging is complete, re-connect to your computer and use your browser to view, analyse and save your data.

EL-SIE products are equipped with flexible alarm functionality. This allows the user to configure custom temperature and humidity thresholds for cumulative alarms, pre-alarms, a delay before alarm triggering, and an alarm hold option, which continues showing the alarm condition even if the measured parameter returns to an acceptable level.

Typical battery life is over 1 year using standard AAA alkaline batteries, and a wall mounting bracket is supplied with the device.

You don’t even need internet access to set up and use the EL-SIE-1, it really couldn’t be easier.

Alarms are fully user configurable, with functionality including cumulative alarms, pre-alarms, a delay before alarm triggering, and an alarm hold option, which continues showing the alarm condition even if the reading returns to an acceptable level.

The display shows current, maximum and minimum readings, and three coloured LEDs indicate device status at a glance.Once logging is complete, re-connect to your computer and use your browser to view, analyse and save your data.

You can also choose to upload your data to an Easy Log Cloud account, making the data accessible online for powerful graphing, analysis and report generation.

NO SOFTWARE TO INSTALL

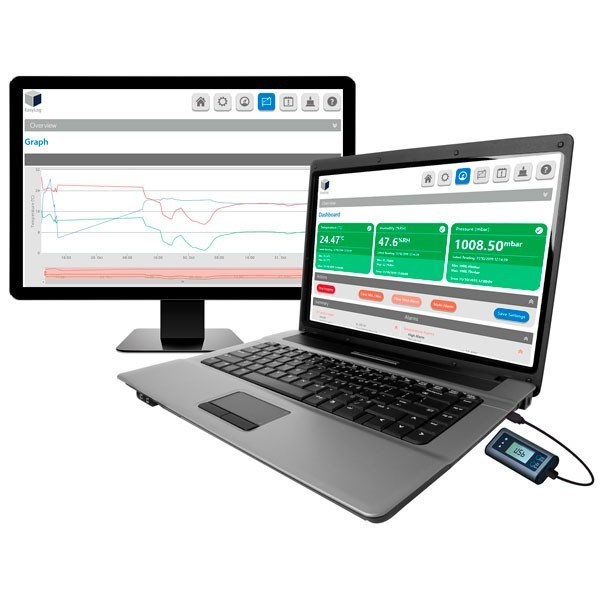

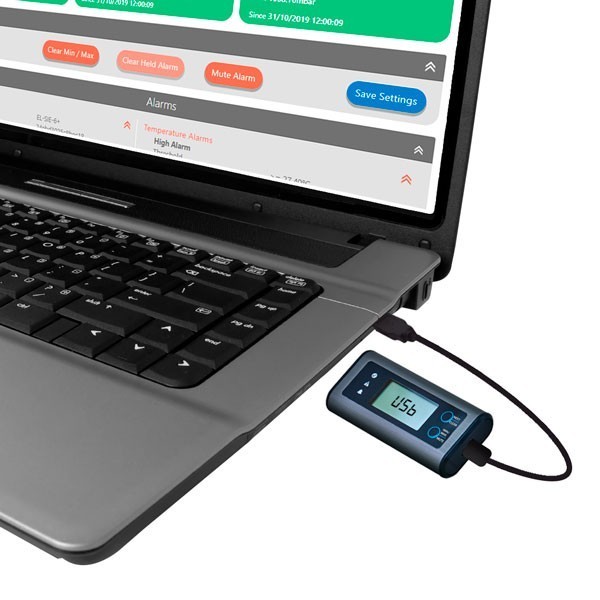

All the software needed to configure your EL-SIE-1 USB, and view and analyse the data it logs, is contained within the product itself. Just connect the logger to your PC or Mac with a USB cable, open any web browser and in the address bar type “http://EasyLog.local”. No internet connection is needed, and you can save this address in your bookmarks or favourites as normal.

The interface is easy to use and allows the following parameters to be configured:

• Logger and channel names
• Measurement units
• Logging rate and start mode
• Up to 16 separate alarms  (high/low/pre-alarm/cumulative) with thresholds, delay and hold
• Display and LED indicator modes

Once the logger is running, you can plug it back into your computer and see the latest data, device status and the event log. You can also chose to stop the logger and change the configuration, or just let it continue logging.

Note: If you select Accredited Calibration Certificate (IPAC) when purchasing this product, click the Product Customization TAB and fill in the second field (TEXT - Required temperature calibration points.) with the respective required points or simply attach a copy of a calibration certificate.
