Key Benefits

• Measurement range: -30°C to +80°C (-22°F to +176°F)
• Stores up to 252,928 readings
• High-contrast graphic LCD with intuitive menu navigation
• Free EasyLog software for configuration and analysis
• Customizable logging rates from 10 seconds to 1 hour
• Programmable audible alarms with status LEDs
• Immediate, delayed, push-button or level-triggered start
• IP67 environmental protection for harsh conditions

Recommended Applications

• Laboratory and pharmaceutical temperature control
• Food storage and transport monitoring
• Cold chain logistics, HVAC systems, industrial facilities

Technical Highlights

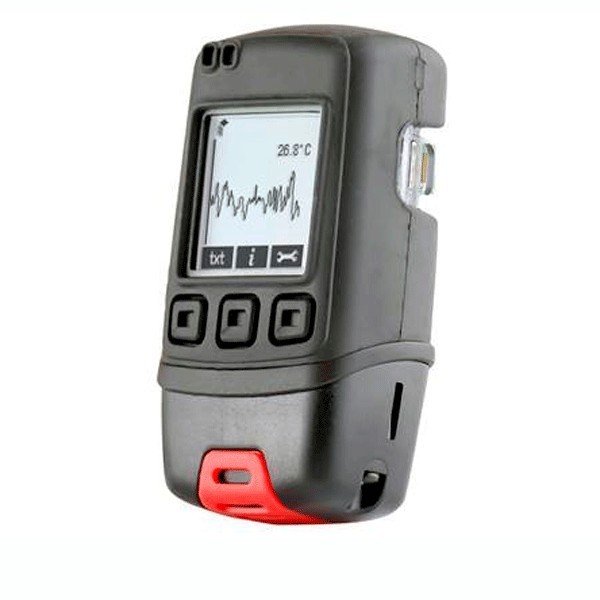

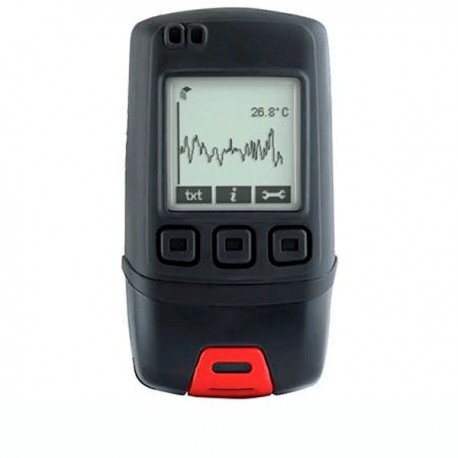

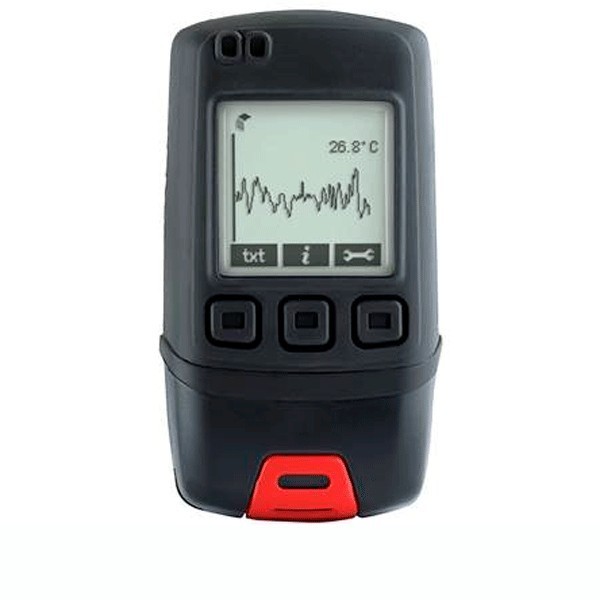

The EL-GFX-1 is a standalone temperature data logger capable of storing over 250,000 readings. Its built-in graphical LCD and menu system allow full control and analysis directly in the field, with no need for a PC connection.

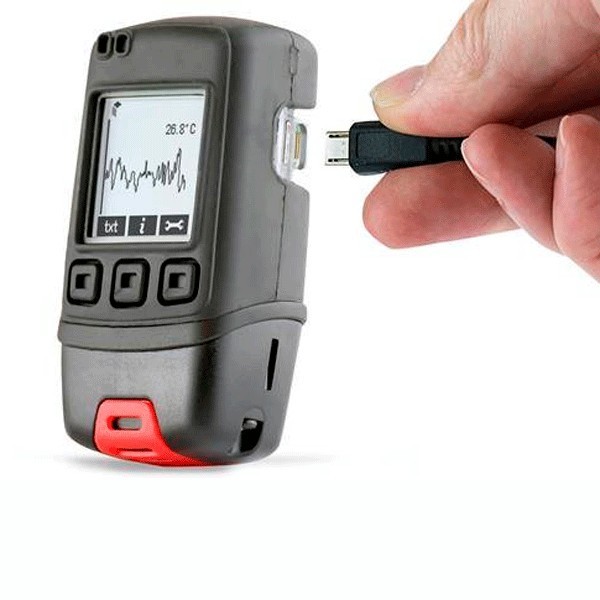

Via USB, users can download and analyze data using the free EasyLog software. Visual event markers make identifying critical moments during logging simple and precise.

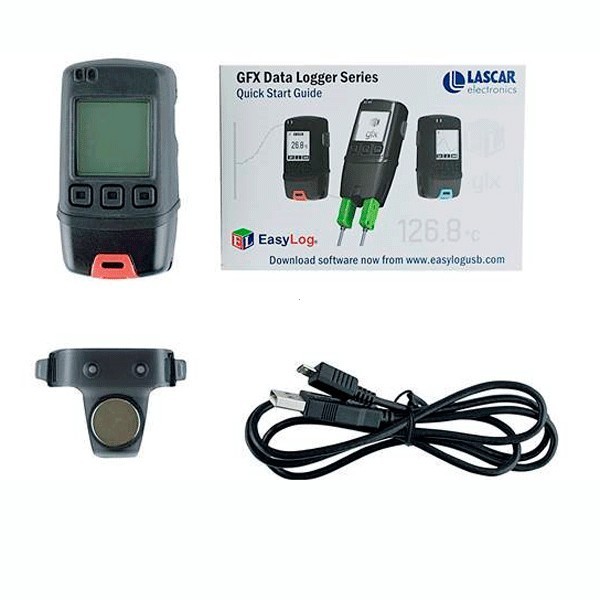

Supplied with two long-life lithium batteries (lasting up to 1 year), the device is IP67 rated for water and dust resistance and can also be powered via USB when necessary.

Technical Specifications
